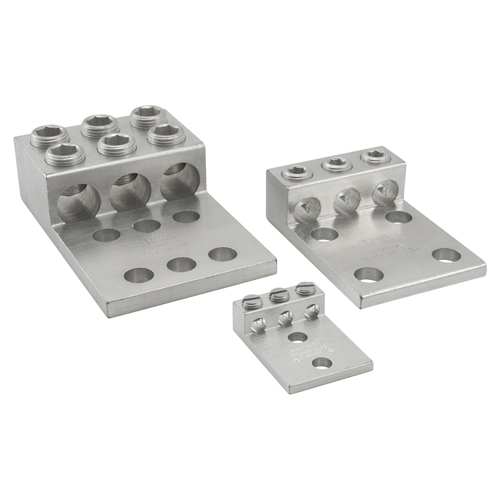

Aluminum Copper 3 Conduit Lug – Electrical Connector

The Aluminum Copper 3 Conduit Lug is a mechanical connection device designed for securely joining stranded aluminum conductors in electrical distribution systems. It is commonly used by electrical distributors, lighting solution providers, wire and cable installers, and switchgear suppliers for reliable conductor termination and grounding applications.

Specifications

• Manufacturer: ILSCO
• Manufacturer Part Number: T3A2-350N
• Material: Aluminum with EL-TIN plating
• Conductor Material Compatibility: Aluminum
• Conductor Type: Stranded
• Number of Conductors: 3
• Connection Type: Mechanical screw connector
• Number of Holes: 2 mounting holes
• Mounting Hole Size: 0.563 inches
• Dimensions (L x W x H): 4.312 in x 3 in x 1.375 in
• Color: Silver
• Product Weight: 1.525 lbs
• Direct Burial: No
• Carton Quantity: 1

Features

• EL-TIN plating for enhanced corrosion resistance
• Designed for secure mechanical connection with stranded aluminum conductors
• Compact design suitable for tight electrical enclosures
• UL recognized component ensuring compliance with industry safety standards
• Multiple conductor accommodation for efficient grounding and bonding
• Easy installation with standardized mounting hole sizes

Downloads and Links

• ILSCO Manufacturer Website
• Technical Drawing and Dimensions (PDF)
• Tightening Torque Values for ILSCO Mechanical Screw Connectors (PDF)
