Features

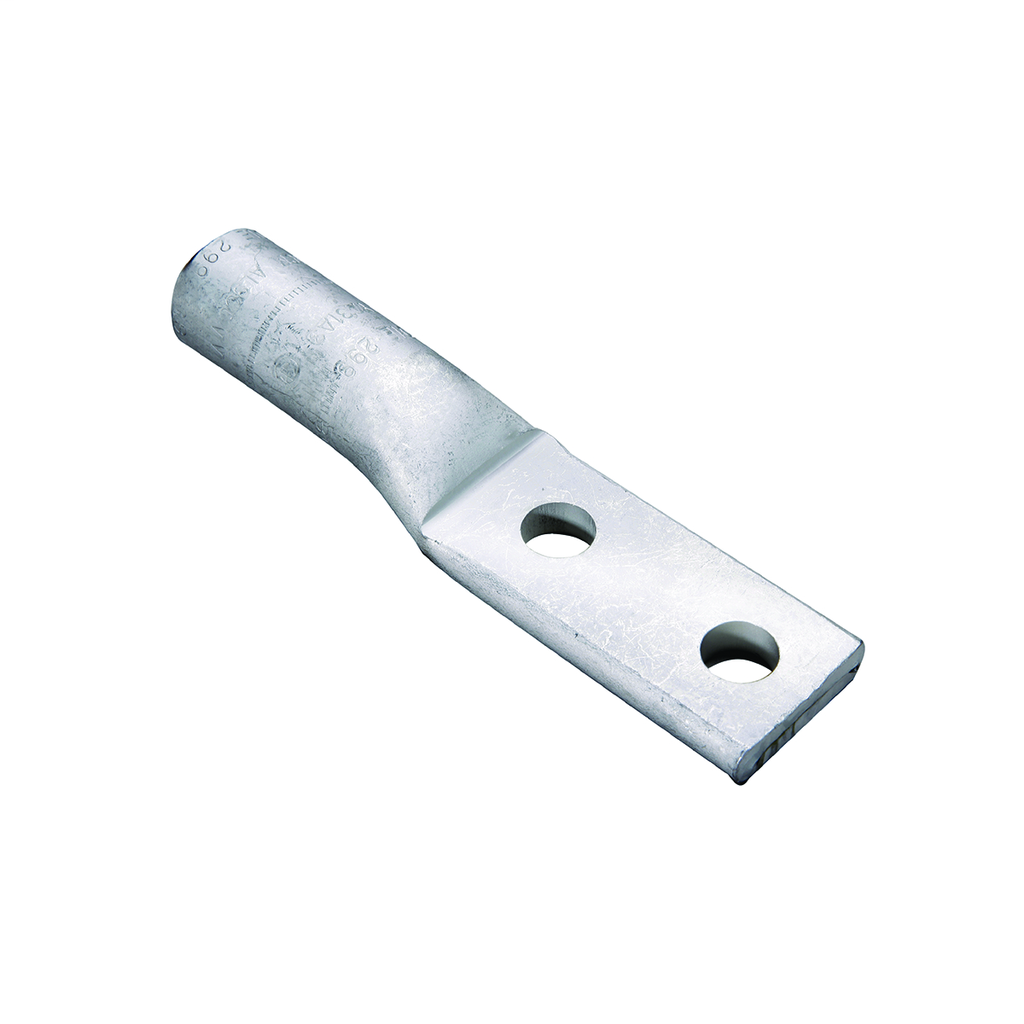

Features: For Aluminum And Copper Conductors, 2-Hole And 4-Hole Designs Ul Listed 90 DEG C, 600 V To 35 KV, Type Ya-A 2- And 4-Hole Pads Inhibit Connector Rotation And Increase Area Contact, These Aluminum Terminals Have The Same Design Features And Benefits As The 1-Hole Ya-A , With An Added Stud Hole For A More Secure Termination To Various Types Of Equipment Pads, They Are Dual-Rated For Use On Both Aluminum And Copper Conductors, Tools, Die Set Catalog Number, And (number Of Crimps): Y35, Y39, Y750, Y46 Tool, U25ART Die, (1), Dieless Tools (number Of Crimps): Mechanical: MY29-3 Tool, (1), Hydraulic HYPRESS: Y644HS Tool, (1), Y81KFT, Y81KFTMBH, PAT81KFT-18V Tool, (2), Wire Strip Length: 1-1/16 IN, Stud Hole (spacing): 1-3/4 IN, Finish: Tin Plated, Temperature Rating: 90 DEG C, Die Index: 296 Element A

Specifications

General

• Application: For Aluminum And Copper Conductors
• Color Code: Tan
• Connector Type: Terminal
• Die Index: 296
• Feature - Barrel Style: Chamfered
• Feature - Barrel Type: Standard
• Item Type: 3A
• Material: Aluminum
• Physical Attribute - Number of Holes: 2
• Physical Attribute - Tongue Type: Standard
• Plated: Y
• Plating Type: Tin - Electro Plated
• Sub Brand: HYLUG
• Temperature Rating: 194
• Trade Name: HYLUG™
• Type: YA-A
• UPC: 781810753118
• UPC 12 Digit: 7818107531188

Dimensions

• Dimension - B Length fraction: 1-1/16 in
• Dimension - B Length inch: 1.05 in
• Dimension - Bolt Hole Size inch: 0.52 in
• Dimension - Bolt Size fraction: 1/2
• Dimension - D inch: 3.10 in
• Dimension - Hole Size inch: 0.56 in
• Dimension - Hole Size mm: 14 mm
• Dimension - L Length Overall mm: 117 mm
• Dimension - Length Overall inch: 4.59 in
• Dimension - N inch: 0.63 in
• Dimension - Outside Diameter inch: 0.60 in
• Dimension - Pad Width inch: 1.03 in
• Dimension - Strip Length inch: 1-1/16
• Dimension - Stud Size inch: 1/2
• Dimension - Thread Size: 1/2
• Dimension - Z inch: 0.72 in
• Physical Attribute - Tongue Angle: Straight

Electrical Ratings

• Rating - KVA: 35 kV
• Rating - Minimum Voltage: 600
• Voltage - Maximum: 35000

Conductor Related

• Conductor - AL Str Size: 1/0 AWG
• Conductor - AL Str Size Range: 1/0 AWG
• Conductor - Copper Str Size: 1/0
• Conductor - Copper Str Size Range: 1/0

Certifications and Compliance

• Certification - CSA Approved: No
• Certification - ETL: No
• Certification - UL Recognized: No
• Certification - cULus: No
• Industry Standard(s): UL468A-468B
• Standards - Industry Standards Met: UL468A-468B
• Standards - RoHS Compliance Status: CM
• UL Listed: Yes
