Features

• UL bonded strip 3/8in - 1.25in for grounding. UL Liquidtight all sizes. Sunlight resistant. Flame retardant PVD jacket. Hot dipped zinc galvanized steel low carbon steel core.

Specifications

• Application: For Service Entrance Wiring Upto 6 FT
• Brand Name: AFC CABLE SYSTEMS
• Color: Gray
• Flexibility: Flexible
• Inside Diameter: 1.575 - 1.6 IN
• Length: 50 FT Coil
• Material: Low Carbon Steel Core, Flame Retardant PVC Jacket
• Outside Diameter: 1.735 - 1.77 IN Over Conduit, 1.865 - 1.9 IN Over Jacket
• Radius: 9 IN Bend
• Standard: UL 360 File Number E26540, CSA File Number LL51593, CSA C22.2 56, NEC 250.118(6), 350.60, 390.15, 501.10(B)(2), 502.10(A)(2), 503.10(A)(2), 511.7(A)(1), 620.21(A)(d), 645.5(D)(2), 680.21, 680.42, 695.6(E), 695.14(E), 230.43(15), Canadian Electrical Code (CEC) Part I Clause 12-1300
• Sub Brand: LIQUID-TUFF
• Trade Size: 1-1/2 IN

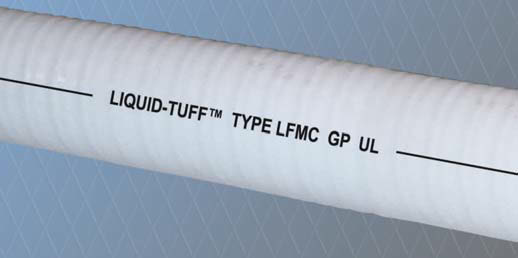

• Type: Liquid-tuff® - UL Liquidtight Flexible Steel Conduit, Type LFMC
• Voltage Rating: 600 V
• Country of Origin: USA
• Harmonization Tariff Schedule Code: 8307106000
