Features

• Contacts Exert Constant Pressure Along Entire Contact Surface and Provide Electrical Continuity
• Insulating Blocks Provide Greatest Dielectric and Mechanical Strength and Lowest Arc Tracking
• Contact Exert Constant Pressure Along the Entire Contact Surface, Providing Electrical Continuity
• Mounting Box Gasket Protect Receptacle from Moisture
• Insulating Block Provide High Degree of Di-Electric and Mechanical Strength and Lowest Moisture Absorption, Lowest Arc Tracking
• Designed to Supply Power to Portable or Fixed Electrical Equipment Such as Welder, Generator, Compressor, Pump

Additional Information

• Enclosure Type NEMA 3/3R/4/4X
• Constructional Feature Weatherproof
• Wire Size 8 to 4 AWG
• Application Welder, Generator, Compressor, Pump, Shipping Dock, Port, Ship to Shore
• Applicable Standard NEC/CEC

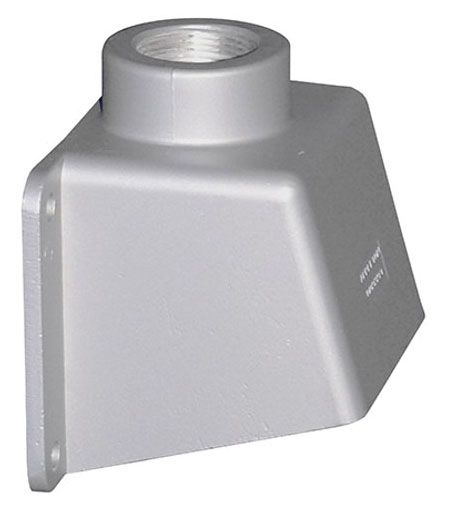

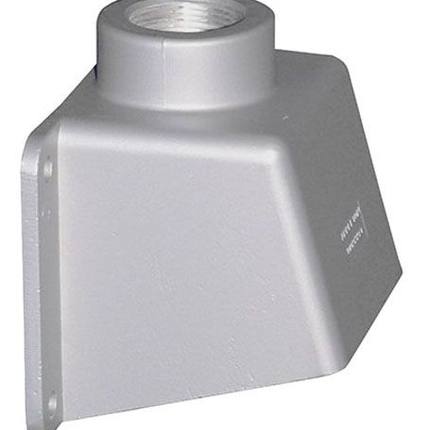

Specifications

• Device Rating: 60/100 Amp
• Body Material: Epoxy Powder Coated Copper-Free Aluminum
• Hub Size: 1 Inch
• Approval: UL, CSA
• Used On: Pin and Sleeve Receptacle
• Series/Model: AE
• Type: With Angle Opening
