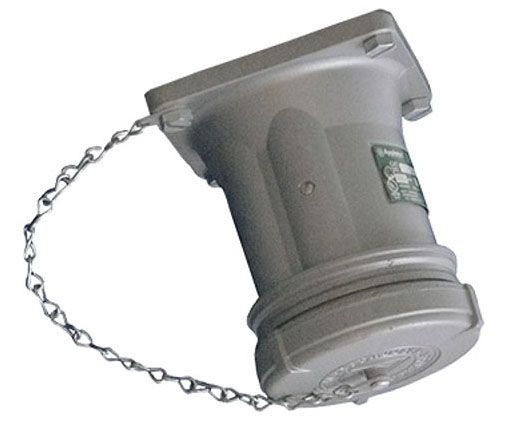

Features

• Circuit Breaking - In 100 Amp Unit, any Arcing Created as Line and Load Terminal Disengage is Safely Confined Deep within Terminal Cavities
• Plug May be Withdrawn in an Emergency Under Full Rated Load without Separate Disconnect Switch
• Positive Polarization - Only Plug and Receptacles of Same Style, Number of Poles and Ampere Rating Can be Used Together
• Locking Screw and Slot Prevent Plug Cable Collar from "Backing Off"
• Controlled Length Contact Ensure that Ground Makes First and Break Last for Added Safety
• Contact Exert Constant Pressure Along Entire Contact Surface and Provide Electrical Continuity
• Insulating Block Provide Greatest Dielectric and Mechanical Strength and Lowest Arc Tracking
• Neoprene Bushing Compressed by Cable Collar Prevent Entrance of Water
• Bushing is Highly Resistant to Hydrocarbon Deterioration and is Self-Extinguishing
• 100 Amp Powertite™ Plug also Suitable for Classified Location When Used with Appleton EBR, EBRH, JBR, MD2SR or DBR Explosionproof Interlocking Receptacle
• Neoprene Bushing Compressed by Cable Collar Prevents Entrance of Water
• Bushing is Highly Resistant to Hydrocarbon Deterioration and is Self-Extinguishing
• Contacts Exert Constant Pressure Along Entire Contact Surface and Provide Electrical Continuity
• Insulating Blocks Provide Greatest Di-Electric and Mechanical Strength and Lowest Arc Tracking
• Designed to Supply Power to Portable or Fixed  Electrical  Equipment Such as Motor Generator Units, Welders, Pumps, Compressors, Cellular Relay Stations, SCR/VFD Houses and Similar Equipment
• Ideal for Use in "Ship-To-Shore" and Backup/Temporary Power Applications
• Rough Usage Construction

Additional Information

• Hub Size 1-1/2 to 2 Inch
• Wire Size 4 to 1 AWG (Building), 4 to 2 AWG (Extra Flexible)
• Wire Recess Diameter 0.391 Inch
• Insulating Block Material Natural Glass Filled Polyester
• Enclosure Rating NEMA 3/3R/4/4X
• Ambient Temperature Rating -13 to 104 Deg F
• Applicable Standard NEC/CEC
• Insulating Block Material Natural Glass Filled Polyester
• Spring Material Brass with Beryllium Copper
• Enclosure Rating NEMA 3/4/4X

Specifications

• Type: Positive Polarized
• Constructional Feature: Weatherproof, Rain Tight
• Voltage Rating: 600 Volt AC 50 to 400 Hertz 3-Phase, 250 Volt DC
• Current Rating: 100 Amp
• Number of Poles: 4
• Number of Wires: 3
• Grounding Style: 2, Shell, Extra Pole
• Door Type: Spring Door, Screw Cover
• Material: Epoxy Powder Coated Copper-Free Aluminum
• Approval: UL, UL 1682/1686/50E, CSA C22.2
• Series/Model: ADR
