- Applicable Standard ICEA S-66-524, NEC 310
- Insulation Thickness 45 Mil
- Application Power Distribution and Branch Circuits in Residential, Commercial and Industrial Building
Specifications

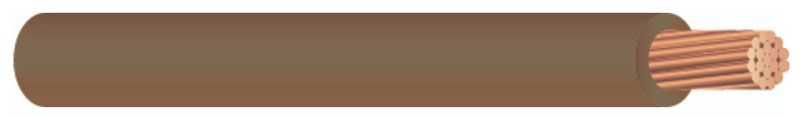

- Type: XHHW
- Voltage Rating: 600 V
- Current Rating: 65 Ampere (75 Deg C), 75 Ampere (90 Deg C)
- Conductor Material: Annealed Copper
- Conductor Size: 6 AWG
- Stranding: 7 Strands
- Insulation Material: Cross-linked Polyethylene
- Insulation Color: Brown
- Outer Diameter: 275 Mil
- Temperature Rating: 90 Deg C (Dry), 75 Deg C (Wet)
- Weight: 97 Lb/MFt
- Package Type: Reel
- Approval: UL 44
More Information
Manufacturer Catalog Number
XHHW-6-BRN-7STR-CU-MASTER
Weight
0.107
Length
Cut to Length
Color
Brown
Conductor Material
Copper
Conductor Size
6
Current
65 amperes
Strands
Stranded
Voltage
600 volts
Wire Color
Brown
