Description
Features
Additional Information
- Applicable Standard ICEA S-66-524, NEC 310
- Insulation Thickness 30 Mil
- Application Power Distribution and Branch Circuits in Residential, Commercial and Industrial Building
Specifications

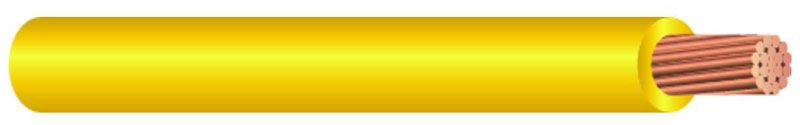

- Type: XHHW
- Voltage Rating: 600 V
- Current Rating: 25 Ampere (75 Deg C), 30 Ampere (90 Deg C)
- Conductor Material: Annealed Copper
- Conductor Size: 12 AWG
- Stranding: 7 Strands
- Insulation Material: Cross-linked Polyethylene
- Insulation Color: Yellow
- Outer Diameter: 152 Mil
- Length: 2500 Ft
- Temperature Rating: 90 Deg C (Dry), 75 Deg C (Wet)
- Weight: 28 Lb/MFt
- Package Type: Spool/Reel
- Approval: UL 44
More Information
Manufacturer Catalog Number
XHHW-12-YEL-7STR-CU-2500S/R
Weight
0.028
Length
2500
Country of Origin
Various
Color
Yellow
Conductor Material
Copper
Conductor Size
12
Current
25 amperes
Strands
Stranded
Voltage
600 volts
Wire Color
Yellow
