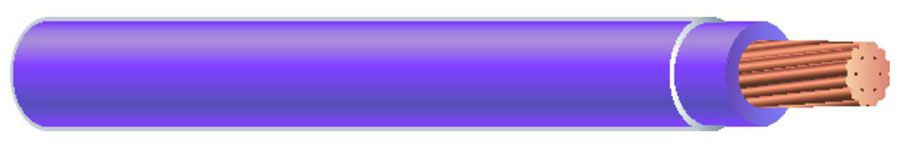

The THHN-6-PUR-19STR-CU-500R Wire is a durable electrical conductor designed for residential and other electronic wiring applications in your house. It features nineteen-strand copper composition with purple insulation for reliable power distribution in conduit and raceways, perfect for light fixtures and connecting to switches.

• Rating: Six gauge wire with high-temperature insulation
• Composition: Nineteen-strand copper conductor for enhanced flexibility
• Length: Five hundred feet supplied on convenient reel
• Insulation: Purple thermoplastic coating for easy identification
• Compliance: Manufactured to meet national electrical code standards for terminal connections and connectors

Features

Additional Information

• Applicable Standard NEMA WC70, NFPA 70
• Insulation Thickness 30 Mil
• Jacket Thickness 5 Mil
• Application Feeders and Branch Circuits in Commercial and Industrial

Specifications

• Type: THHN
• Voltage Rating: 600 V
• Current Rating: 55 Ampere (60 Deg C), 65 Ampere (75 Deg C), 75 Ampere (90 Deg C)
• Conductor Material: Copper
• Conductor Size: 6 AWG
• Stranding: 19 Strands
• Jacket Material: Nylon
• Insulation Material: PVC, Thermoplastic
• Insulation Color: Purple
• Outer Diameter: 249 Mil
• Length: 500 Ft
• Temperature Rating: 90 Deg C (Dry)
• Weight: 95 Lb/MFt
• Package Type: Reel
• Approval: UL 83/758/1063/1581, UL (Canada and US)
