Description
Features
Additional Information
- Applicable Standard NEMA WC70, NFPA 70
- Insulation Thickness 15 Mil
- Jacket Thickness 4 Mil
- Application Feeders and Branch Circuits in Commercial and Industrial
Specifications

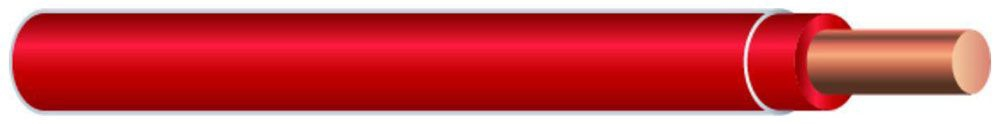

- Type: THHN
- Voltage Rating: 600 V
- Current Rating: 20 Ampere (65/75/90 Deg C)
- Conductor Material: Copper
- Conductor Size: 12 AWG
- Stranding: Solid
- Jacket Material: Nylon
- Insulation Material: PVC, Thermoplastic
- Insulation Color: Red
- Outer Diameter: 128 Mil
- Length: 1000 Ft
- Temperature Rating: 90 Deg C (Dry)
- Weight: 23 Lb/MFt
- Package Type: Spool/Reel
- Approval: UL 83/758/1063/1581, UL (Canada and US)
Downloads
Specification/TechnicalMore Information
Manufacturer Catalog Number
THHN-12-RED-SOL-CU-1000S/R
Weight
0.023
Length
1000
Color
Red
Conductor Material
Copper
Conductor Size
12
Current
20 amperes
Strands
Solid
Voltage
600 volts
Wire Color
Red
