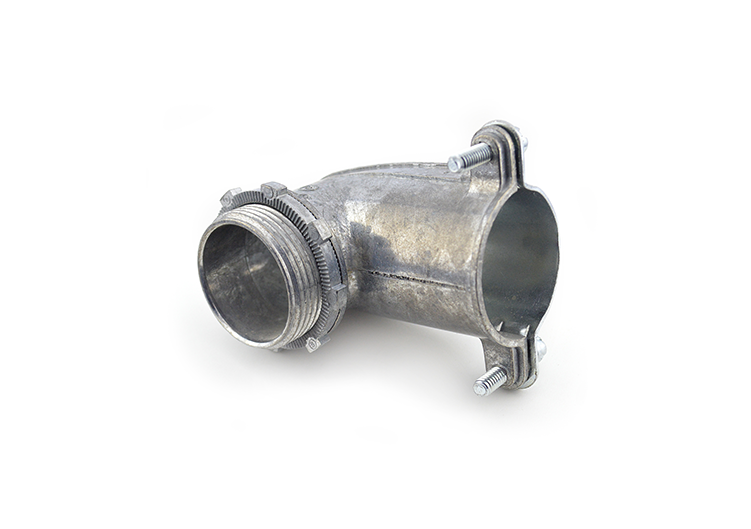

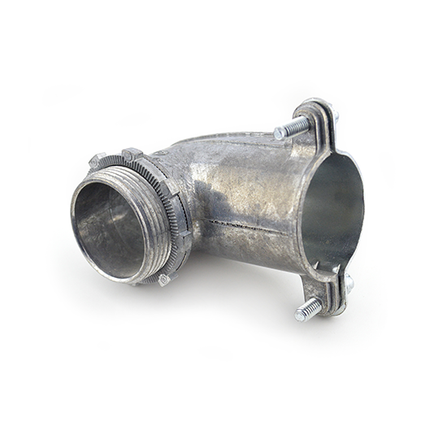

90-Degree Connector 1-1/4", Die Cast Zinc
90-Degree Connector 1-1/4", Die Cast Zinc
Total Price: $15.53 per each Sold in increments of 1 each
Description
Features
- 90-Degree Fitting - Used to connect FMC and AC/MC cable to an electrical box or enclosure at a 90-degree angle
- Sizing - Use to join flex trade size 1-1/4" conduit or 1.500" to 1.625" cable to a 1-1/4" knockout
- Steel Cover - Steel cover and two-screw design secures and protects inner cable
- Zinc Body - Die cast zinc connectors have a precise fit and finish for a trouble-free performance and excellent corrosion resistance when used in harsh environments
- Safety Compliance - Bridgeport 90-degree connectors are UL listed and RoHS compliant
Certifications and Standards
- UL-514B
Specifications
- Country of Origin: United States
- Length: 3 in
- Width: 2.75 in
- Depth: 1.312 in
- Weight: 67.6 lbs
- BPT Trade Size: 1-1/4"
- Field Application: 90 Degrees connector suitable for used to connect MC/FMC to box or enclosure. Diameter: 1.50" 0 min to 1.625" 0 max
- FINISH: Ball burnished, mirror smooth
- MATERIAL: Zinc Die Cast
- NEMA Rating: FB-1
- UL File #: E20534
- WARRANTY: 1 Year
More Information
Manufacturer Catalog Number
808-DC2
Weight
0.676
Length
3
Width
2.75
Country of Origin
United States
Made in USA
Yes
Material
Zinc Die Cast
Depth
1.312 inches
Finish
Ball burnish
Product Size
1-1/4 in
Type
Connector
Warranty Length
1 years
