Features

Ballasting Requirements

• Ballast Bypass

Specifications

• Country of Origin: China

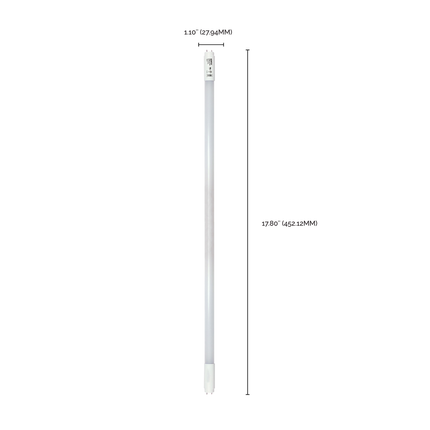

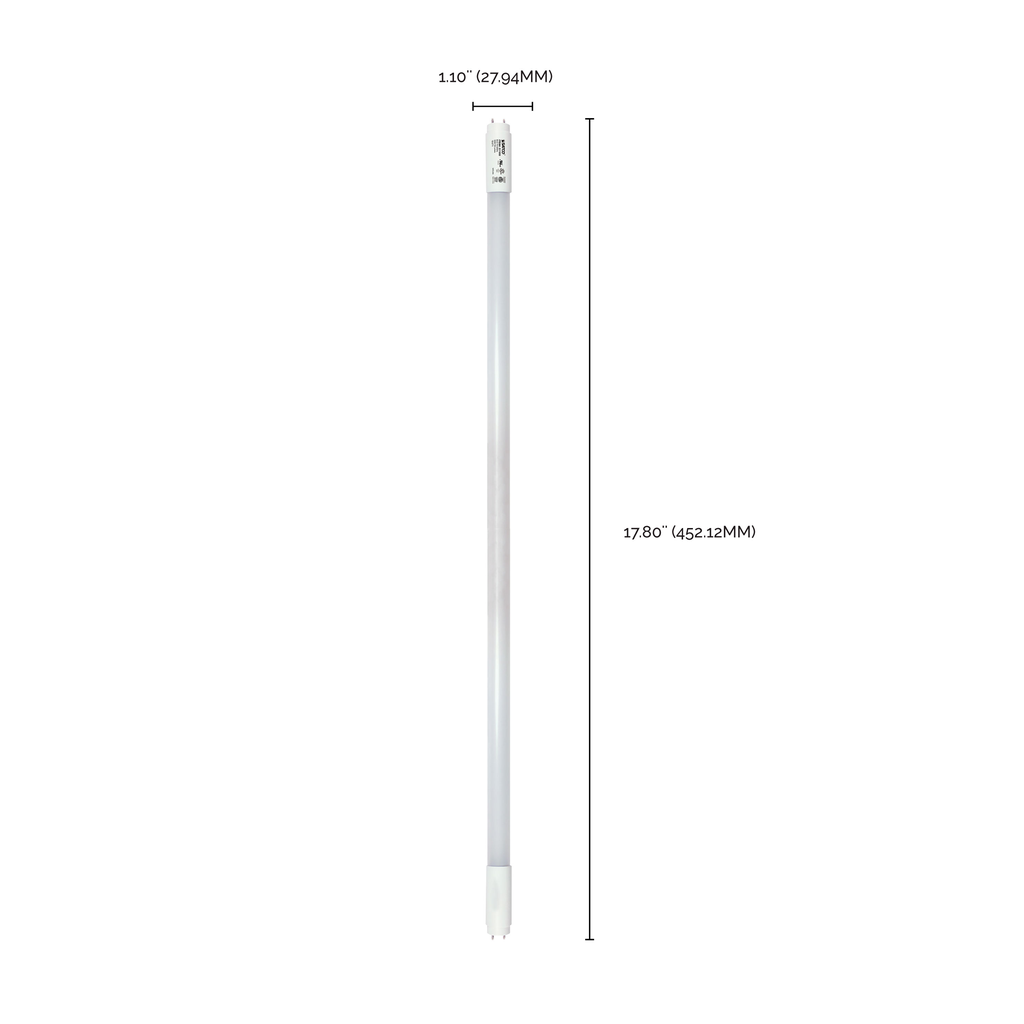

• Length: 18 In.
• Weight: 0.26 Lbs.
• Warranty: 5 Year Limited - T8 LED Bulbs - Ballast Bypass
• Amps: 0.080A
• ANSI Base: G13
• Ballast Bypass Direct: Ballast Bypass
• Beam Spread: 160
• CCT Selectable: No
• CO Terse: Lawful for sale
• HI Terse: Lawful for sale
• NV Terse: Lawful for sale
• VT Terse: Lawful for sale
• Color Temp: Warm White
• CRI: 83
• Dimmable: Non-Dimmable
• Enclosure Rating: Enclosed Rated Lamp
• ENERGY STAR: No
• FCC Compliant: Yes
• Finish: Frost
• Product Type: Linear
• Flr Equiv: 15W
• Avg Rated Hours: 50000
• Housing Color: White
• Incandescent Equiv: 75W
• Indoor Outdoor: Indoor
• IP Rating: IP20
• Lamp Base: Medium Bi Pin
• Lamp Filament: Led
• Lamp Shape: T8
• Lamp Ballast Type A/B/C: Type B
• Lamp End Type: Single Ended, Double Ended
• Lens Finish: Frost
• Lens Material: Glass
• Lumens: 700L
• Material: Glass / Plastic
• MOD Decimal: 1.1 in.
• MOL Decimal: 17.8 in.
• NSF Approved: ETL Sanitation listed (conforms to NSF)
• Operating Frequency: 50/60 Hz
• Operating Temp: -25C (-13F) to +40C (+104F)
• Power Factor: 0.9
• Rated For Enclosed Fixture: Yes
• Rated For Vapor Tight Fixture: No
• RoHS Compliant: Yes
• Safety Listing: cULus - Classified; cULus - Certified; cRUus - Recognized Component; ETLus - SANITATION RECOGNIZED COMPONENT
• Location Rating: Damp
• Shatter Proof Type: PET Coated
• Technology: LED
• Temperature (CCT): 3000K
• THD: 0.25
• Volts: 120V-277V
• Watts: 7W
