Features

• Selector switch to determine input voltage between 120-277 VAC
• Up to 28 events total
• To-the-minute accuracy
• Temporary override or permanent manual override
• Automatic Daylight Saving Time adjustment
• Astronomic models enable dusk-to-dawn scheduling

Prop 65

• Please see the Warning @ www.P65Warnings.ca.gov - Lead

Specifications

• Country of Origin: China
• Product Height: 7.875 in; 200 mm
• Product Depth: 3.4375 in; 87.3 mm
• Operating Temperature Min: -40°F; -40°C
• Operating Temperature Max: 104°F; 40°C
• Warranty Period: 1-Year limited
• Minimum On Off Time: 1 min
• Minimum Pulse Time: 2 sec
• Maximum On Off Time: Indefinite
• Maximum On Off Operations: 28
• Operation Mode: 7 day
• Voltage Selection Type: Selector Switch
• Daylight Saving Adjustment: Automatic
• Applications: Indoor Lighting Control; Timing/Scheduling ON/OFF; Machinery & Pump Controls
• Wire Size Min: #14 AWG
• Backup Type: Battery
• Battery Type: AAA
• Wiring Option: Terminals
• Input Voltage Ranges: 120-277 VAC, 50/60 Hz
• Wire Size Max: #8 AWG
• Number Of Circuits: 2
• Enclosure Type: Indoor type 1 metal
• Battery Service Type: Field Serviceable
• Switch Type: 2xSPST, 1xDPST or Pulse
• Power Consumption Max W: 6 W
• PDF Standards And Certifications: cCSAus; Title 20

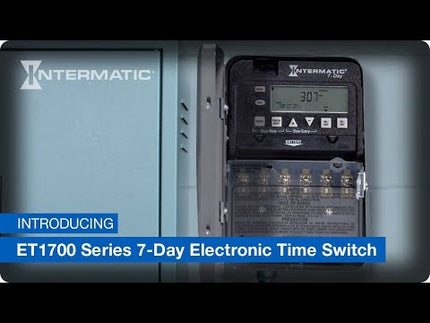

• Electronic Series: ET1700 Series

Certifications

• CSA Certification: cCSAus
• Other Certifications: Title 20

Load Ratings

• Motor Load Ratings NO Ranges: 1 HP, 120 VAC; 2 HP, 240 VAC
• Magnetic Ballast Load Ratings NO Ranges: 20 A, 120-277 VAC
• Resistive Load Ratings NO Ranges: 20 A, 28 VDC; 30 A, 120/240 VAC
• Inductive Load Ratings NO Ranges: 30 A, 120/240 VAC
• Tungsten Load Ratings NO Ranges: 5 A, 120/240 VAC
• Electronic Ballast Load Ratings Ranges: 1 A, 120-277 VAC
• Tungsten Load Ratings Ranges: 5 A, 120-240 VAC
• Resistive Load Ratings Ranges: 20 A, 28 VDC; 30 A, 120/240 VAC
• Motor Load Ratings Ranges: 1 HP, 120 VAC; 2 HP, 240 VAC

Knockout

• Knockout Dimensions Bottom: (2) combination 1/2" - 3/4"
• Knockout Dimensions Back: (1) combination 1/2" - 3/4"
