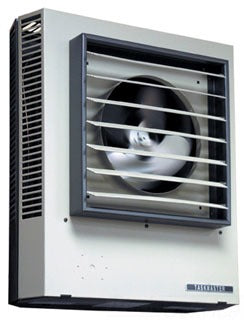

Description
Features
- Control Compartment Housing a Master Terminal Board with a Hinged and Latched Access Door, Simplifying Wiring, Installation and Maintenance
- All Units Come Equipped with Automatic Reset Type Limit Controls to De-Energize the Heater Should an Over-Temperature Situation Occur
- Louvers are Individually Adjustable for Directional Control of Air Flow up to 15 Degree from Straight Horizontal
- Unit Heaters Can be Mounted for Horizontal or Vertical Discharge
- Made in USA
Additional Information
- Air Throw Distance 12 Foot
- Control Voltage Rating 24 Volt
- Mounting Height 9 Foot Horizontal, 9 Foot Vertical
- Temperature Rise 40 Deg F
Specifications
- Voltage Rating: 480 Volt AC
- Current Rating: 6.1 Amp
- Power Rating: 5 Kilowatt
- Number of Phases: 3
- Capacity: 17.1 BTU/Hour
- Heating Element: Brazed Steel Finned Copper Clad Steel Sheath Element
- Control Type: Contactor, Disconnect Switch, Thermostat, Summer Fan Switch
- Fan/Motor Type: Totally Enclosed 1-Speed 1-Phase Permanently Lubricated Bearing Motor
- Air Flow Rate: 400 CFM
- Material: 18 Gauge Welded Steel
- Finish: Powder Coated
- Size: 14-15/32 Inch Width x 6-1/2 Inch Depth x 17-3/4 Inch Height
- Mounting: Ceiling/Wall Bracket, Horizontal/Vertical
- Application: Warehouse, Storage Room
- Approval: ETL (Canada and US)
- Series/Model: 5100
- Weight: 27.000 lbs
Downloads
Data SheetCatalog
Installation/Operator
More Information
Manufacturer Catalog Number
P3P5105CA1N
Weight
27.0000
