Features

• DURABLE – Shallow design built of durable high-impact thermoplastic
• EASY TO INSTALL – Terminals marked for easy identification and fast wiring, terminals require 25 in lbs
• EFFICIENT – Features heavy-gauge, high-performance copper contacts
• CONVENIENT – All mounting hardware included
• COMPATIBLE – Fits all wallplates with 2.15" diameter center hole

NEMA

• 10-50R

Specifications

• Country of Origin: Mexico
• RoHS Compliant: False

Product Features

• Color: Black

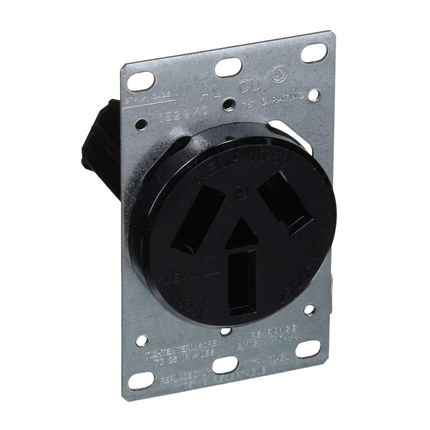

• Device Type: Single Receptacle

Electrical Specifications

• Amperage: 50 A
• Grounding: Non-Grounding
• Pole: 3
• Wire: 3

Standards and Certifications

• CSA: Yes
• NEMA: 10-50R
• UL: UL 498
• Warranty: 10-Year Limited

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Terminal Accom.: #4 - #8AWG
• Terminal ID: X (Brass screw or Black screw) = Hot; Y (Brass screw or Black screw) = Hot; White (Silver screw) = Neutral; Green (Green screw) = Ground
• Termination.: Side Wire
• Torque Range.: 25 in-lbs.

Warranty

• Warranty.: 10-Year Limited
