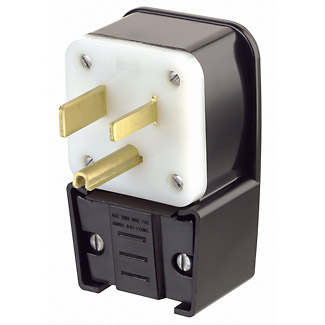

Features

• Leviton's Heavy Duty Industrial Power plugs and connectors offer superior performance, long-lasting reliability and features that are backed by a 10-year warranty. Available in many NEMA configurations, you'll be sure to find the right device for your needs.

NEMA

• 6-50P

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NEMA: WD-6
• NOM: 057
• Warranty: 2-Year Limited

Electrical Specifications

• Amperage: 50 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Grounding
• Pole: 2
• Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
• Voltage: 250 VAC
• Wire: 3

Material Specifications

• Assembly Screws: Steel, Zinc Plated
• Blades/Contacts: Solid Brass
• Body Material: Super Tough Nylon
• Color: Black

Mechanical Specifications

• At Rated Voltage: 3 HP
• Cord Range: 0.625 to 1.375
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: Up to 4 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Torque Range: 16-20 in-lbs
• Wire Gauge: 6-4 AWG

Product Features

• Device Type: Power Device
• Feature: Angled

Environmental Specifications

• Operating Temperature: -40°C to 60°C
