Features

• One piece contacts reduce friction and overheating
• Rugged nylon construction resists impact, sunlight, chemicals, and rough use
• Ratings and NEMA I.D. permanently marked on device
• Industry exclusive limited lifetime warranty

NEMA

• Non-NEMA

Specifications

• Country of Origin: Mexico
• RoHS Compliant: False

Electrical Specifications

• Amperage: 50 A
• Current Interrupting: Certified for current interrupting at full rated current
• Dielectric Voltage Withstand: 2000V minimum per UL 498
• Grounding: Grounding
• Maximum Working Voltage: 125/250V as rated
• Pole: 3
• Temperature Rise: Max 30ºC temp rise at full-rated current after 150 cycles of OL at 150% rated DC current
• Voltage: 125/250 VAC
• Wire: 4

Material Specifications

• Assembly Screws: Brass
• Cable Clamp Screw: Philips Head, SS 304
• Center Pin: SS 302/304
• Color: Black-White
• Contact - Binding Plate: 0.100inch thick Brass
• Contact - Spring Value: 0.041inch thick Brass
• Contact Rivet: Brass
• Dust Shield: Santoprene TPE
• Face Module: Nylon
• Ground Post: Brass
• Ground Shunt: Bronze
• Housing Material: Nylon
• Standard Cable Clamp: Nylon
• Terminal Block: 0.062inch thick Copper
• Terminal Set Screw: SS 302/304
• Wiring Chamber: Nylon

Product Features

• Brand: Black and White

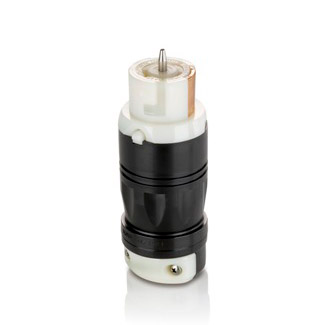

• Device Type: Locking Connector
• NEMA: Non-NEMA

Standards and Certifications

• CSA C22.2 No. 42: File 152105
• NOM: 057
• RoHS: Compliant
• UL 498: File E13399
• Warranty: Limited Lifetime Warranty

Mechanical Specifications

• Cord Range: .680 - 1.125
• Product ID: Ratings and Catalogue No. molded into face and stamped into shroud
• Terminal Accom.: #10 min to #4max AWG Solid or Stranded Wire
• Terminal ID: X, W, Y, Z and Green for ground
• Torque Range: allen wrench to 35 inch-lbs

Environmental Specifications

• Environment: Dry
• Flammability: Rated HB or better UL94
• Operating Temperature: -40°C to 75°C
