Features

• NEMA 4 When Installed in NPT Threaded Entrance or Hub
• Reusable Ferrule with Inspection Windows Provide Visual Indication of Ferrule-to-Conduit Engagement
• Compact, Slim Diameter with Small Turning Radius - Close Proximity Installations
• Sealing Ring Provides Liquid Tight Seal Between Conduit and Connector
• Ferrule Assures Positive Ground Between Conduit and Connector
• Supplied with Locknut and KO Sealing Ring for Ingress Protection at Knockout Entrance
• Liquid/Oil/Concrete Tight
• Rain Tight

Additional Information

• Diameter 7.38 Inch
• Enclosure Rating Class I Div 2 and Zone 2, Class II Div 1 and 2, Class III Div 1 and 2
• Application Commercial and Industrial, Hazardous
• Applicable Standard NEC/CEC, NEMA FB-1, Federal Specification W-F-406E

Specifications

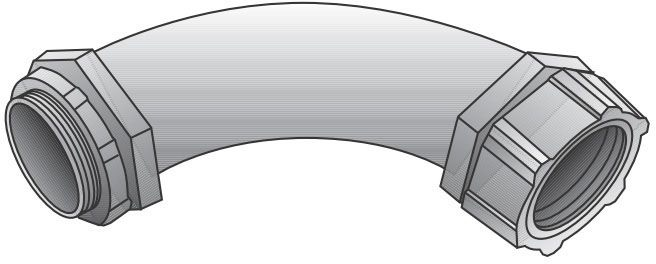

• Type: 90 Degree, Tapered Threaded Male Hub
• Throat Type: Non-Insulated
• Trade Size: 5 Inch
• Material: Zinc Electroplated Malleable Iron (Body/Nut), Zinc Electroplated Steel (Ferrule)
• Approval: UL 514B, CSA C22.2
• Used On: Liquid Tight Flexible Metallic Conduit
• Series/Model: 4Q
