Features

• Positive Grounding Type
• Tapered Threaded Male Hub NPT
• Grounding Lug is Cast as an Integral Part of Malleable Iron Gland Nut, Provides High Ground Fault Withstand Capability
• Compact, Slim Diameter with Small Turning Radius
• Bonding Wedge Locknuts are Recommended in Hazardous Location
• Long Ferrule Prevents Pull-Out and Tight Bend Conduit Pop-Out
• Inspection Windows in Ferrule to Ensure Full Engagement

Additional Information

• Wire Size 6 to 1/0 AWG
• Grounding Type Positive
• Enclosure Rating Class I Div 2 and Zone 2, Class II Div 1 and 2, Class III Div 1 and 2
• Application Commercial and Industrial, Hazardous
• Applicable Standard NEC/CEC, NEMA FB-1, Federal Specification W-F-406E

Specifications

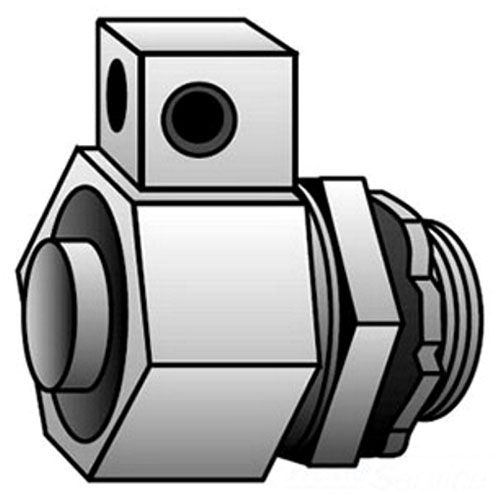

• Type: Straight, Tapered Threaded Male Hub
• Throat Type: Insulated with Ground Lug
• Trade Size: 2 Inch
• Material: Zinc Electroplated Malleable Iron (Body/Nut), Zinc Electroplated Steel (Ferrule)
• Approval: UL 467, CSA C22.2
• Used On: Liquid Tight Flexible Metallic Conduit
• Series/Model: 4Q-LT
