Features

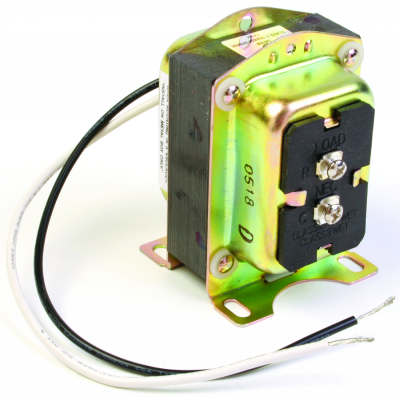

• Color-coded lead wires for primary connections and screw terminals for secondary connections
• Includes fixed 1/4 inch (6mm) male quick-connects (AT140A models only) or color-coded lead wires for primary and secondary connections
• Meets NEC Class 2 requirements and Underwriters Laboratories Standard UL 1585
• Identified Class 2 not wet, Class 3 wet

Specifications

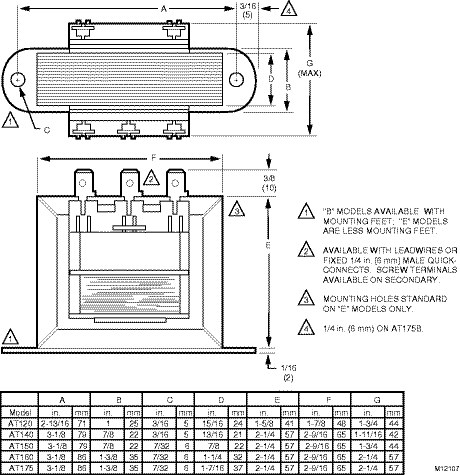

• Dimensions (in.): 3 3/16 in. high x 2 3/8 in. wide x 3 1/8 in. deep
• Dimensions (mm): 81 mm high x 60 mm wide x 79 mm deep
• Temperature Range (F): -20 F to +105 F
• Temperature Range (C): -29 C to +41 C
• Includes: Metal end bells
• Item Type: Product
• Mounting: Foot mounted, plate mounted on 2x4 in. or 4x4 in. outlet box, clamp mounted using outlet box knockout, or panel mounted
• Electrical Ratings: Primary voltage--120 Vac; Secondary voltage--27 V.O.C.
• Frequency: 60 Hz
• Approvals, Underwriters Laboratories Inc.: UL Listed: A,C,F models. File # E14881
• Approvals, Canadian Standards Association: CSA Certified: A & B models.
• Electrical Connections (Primary)(in.): 9 in. leadwires
• Electrical Connections (Primary)(mm): 229 mm leadwires
• Electrical Connections (Secondary)(in.): (2) screw terminals
• Electrical Connections (Secondary)(mm): (2) screw terminals
• Electrical Ratings, Output: 24 Vac at 40 VA
