Features

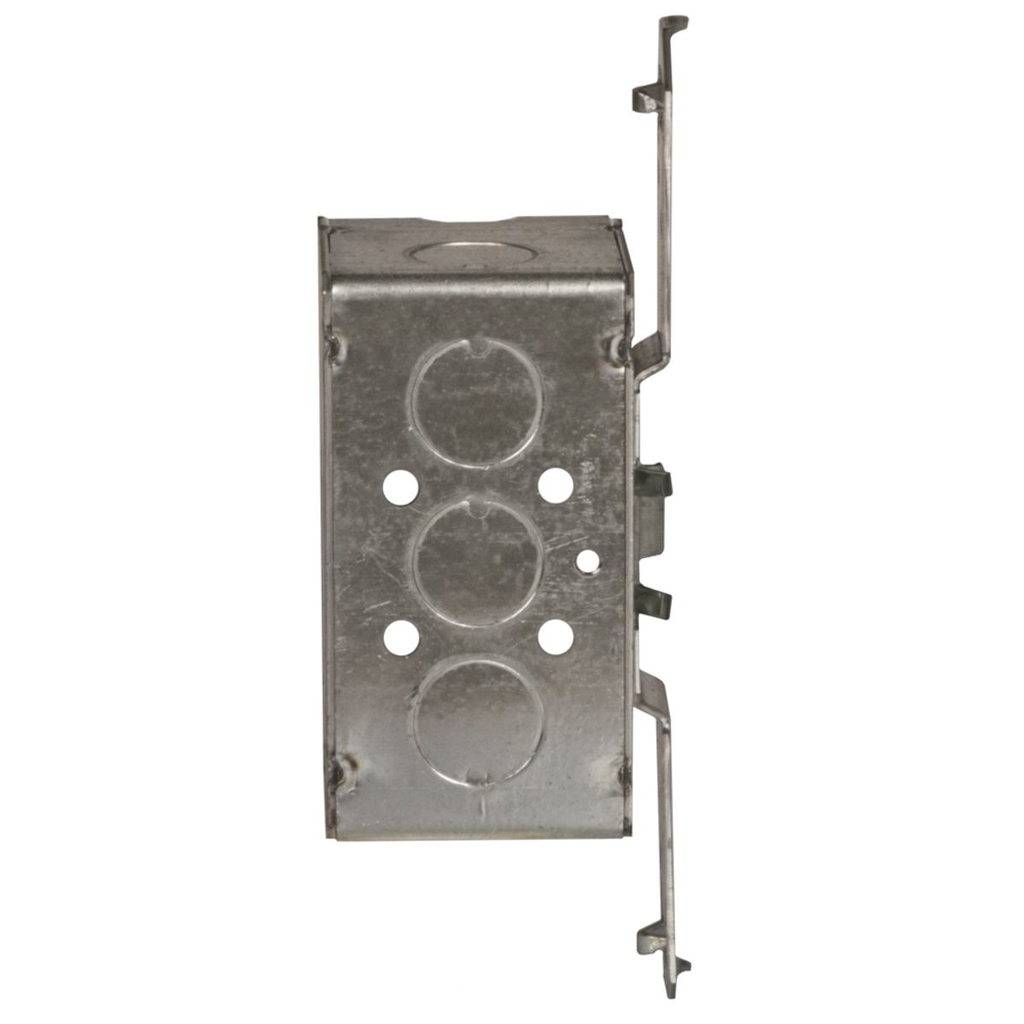

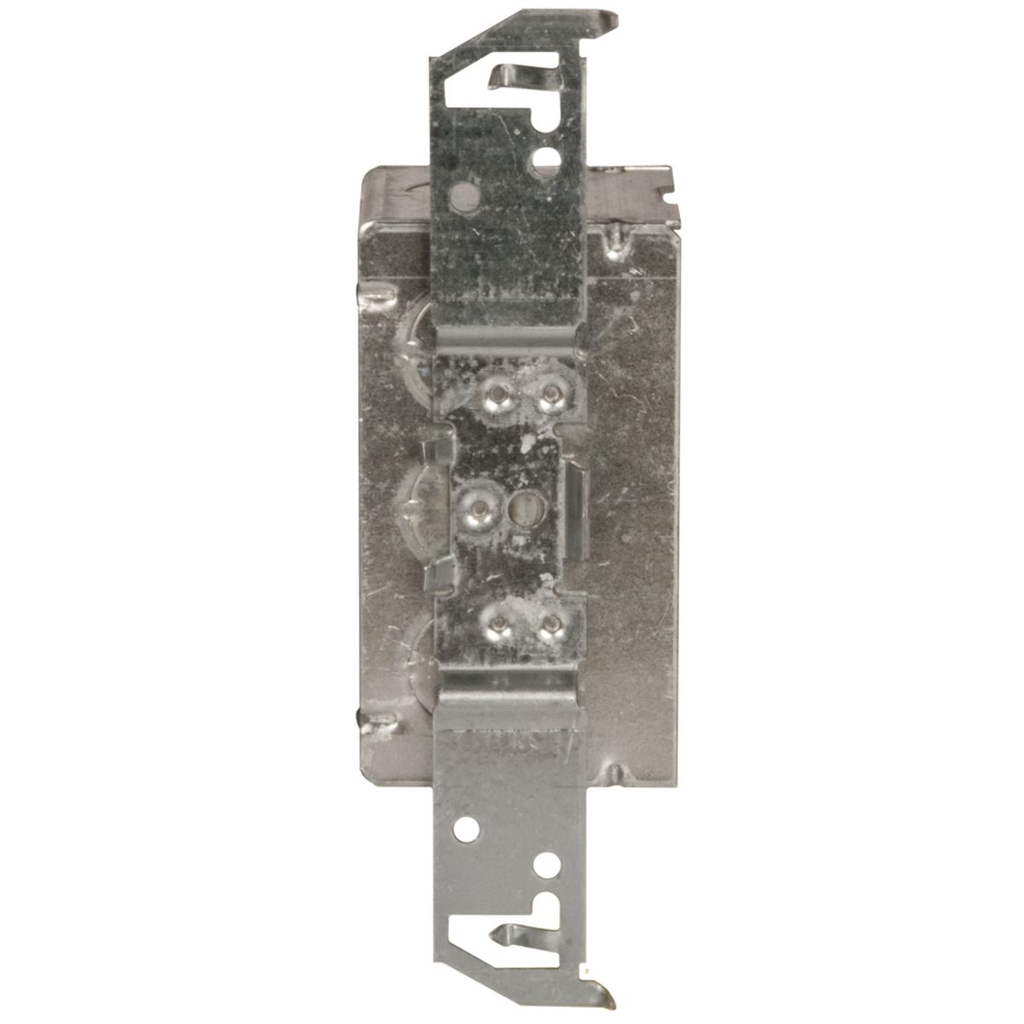

• Constructed of pre-galvanized steel with "TS" side-mount bracket
• 4 in. x 2 in., 2-1/8 in. deep
• With proper fitting can be used for conduit, NMSC, armored, metal clad, flex cable
• Supplied with eight 1/2 in. knockouts
• 16.5 cu. in. capacity
• Acceptable for use in 2-hour fire rated walls

Specifications

• Country of Origin: United States
• Actual Depth: 2.188 in
• Buy American Compliant: Contact Manufacturer
• Width: 2.375 in
• Each - Width: 2.375 in
• Height: 7 in
• Product Type: Steel Boxes and Covers
• Color: Gray
• Cubic Capacity: 16.5 cu.in
• Depth: 2.125 in
• Knockouts: 1/2 in
• Standard: UL Listed
• Type: Box
• Bracket Type: TS, for Metal or Wood Studs
• Weight: 0.735 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D01
• Description - Invoice: HNDYBXw/TSBKT 4x2 2-1/8DP 1/2KO
• Freight Class Code: 06202000
• Harmonization Code: 7326908688
• Image Actual Or Representative: A
• MSDS Flag: Yes
• Order Multiple: 25 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D016D0160
• Bracket Setback: 0.50
• Drawn or Welded: Welded
• Fire Resistance: Yes
• Power Distribution Features: Fire Rated
• Raised Ground: No
• Wiring System: Conduit
• Material: Steel
• Number of Gang(s): 1-Gang
• Proposition 65 Warning Required: No
• Base Unit of Measure: EA
• BOX SIZE: 9.625x16.75x6 (in)
• Box Type: Wall Box
• Carton - Gross Weight per Pack: 18.375 lb.
• Carton - Number of Sub Packs: 25
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169006788
• Carton - Total Units: 25 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169006787
• Pallet - Number of Sub Packs: 60
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 40050169006786
• Pallet - Total Units: 1500 EA
• Pallet Height: 40.375 in
• Pallet Length: 42.000 in
• Pallet Weight: 1147.500 lb.
• Pallet Width: 48.000 in

Certifications

• Certified Listed: UL Listed
