Features

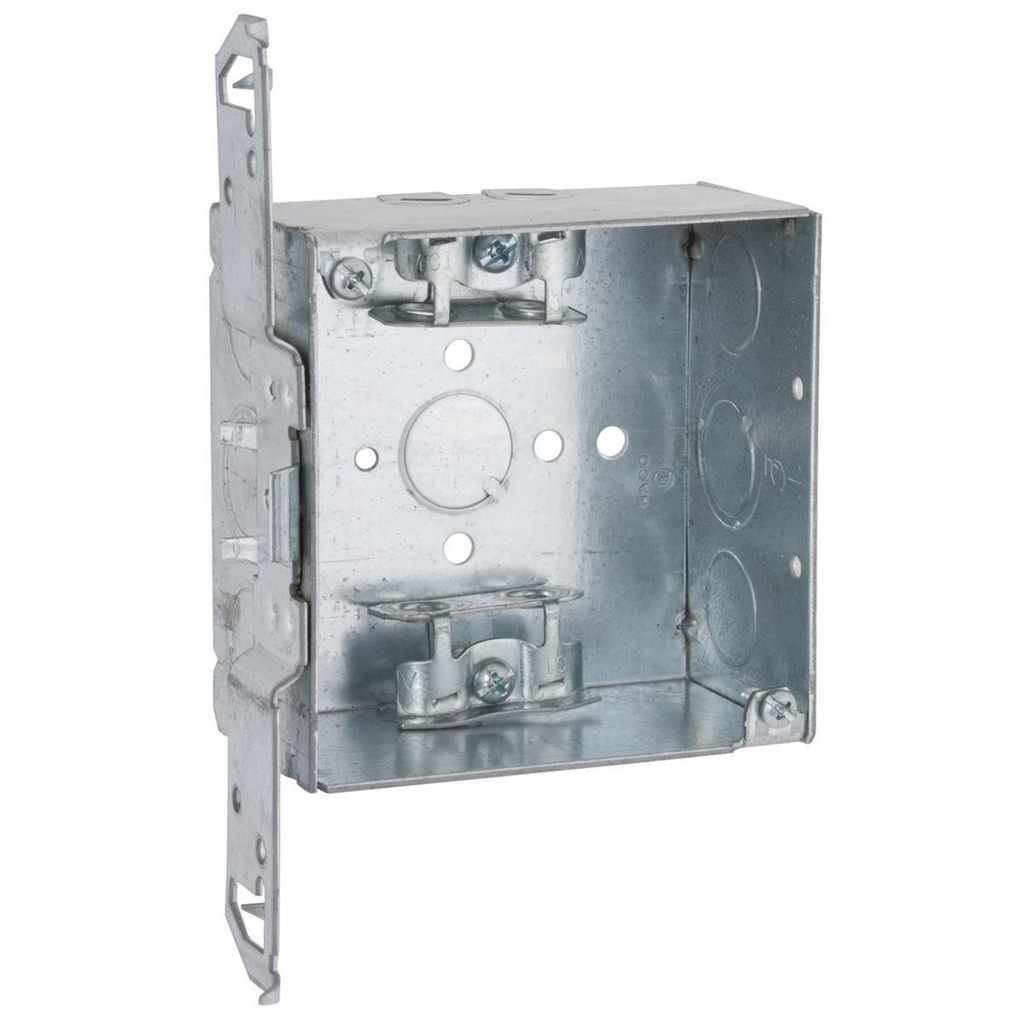

• Welded steel construction with "TS" side-mount bracket with gauging tabs and recessed nailing spurs
• 4 in. square x 2-1/8 in. deep
• BX clamps provided for steel & alum armored cable, MCI cable, MCI-A cable, and flexible conduit
• TKO® Knockouts allow for design and installation flexibility
• Supplied with three 1/2 in. and one 1/2-3/4 in. TKO® knockouts
• Combination Phillips/slotted screw heads
• 30.3 cu. in. capacity
• Acceptable for use in 2-hour fire rated walls

Specifications

• Country of Origin: China
• Actual Depth: 2.188 in
• Buy American Compliant: Contact Manufacturer
• Width: 4.480 in
• Each - Width: 4.480 in
• Height: 7 in
• Product Type: Steel Boxes and Covers
• Cubic Capacity: 30.3 cu.in
• Depth: 2.125 in
• Knockouts: 1/2 in;1/2 - 3/4 in Combination (TKO)
• Standard: UL Listed
• Type: Box
• Bracket Type: TS, for Metal or Wood Studs
• Weight: 1.08 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D01
• Description - Invoice: 4SQBXw/TSBKT 2-1/8DP AC/MC/FLX&1/2KO
• Freight Class Code: 06202000
• Harmonization Code: 7326908688
• Image Actual Or Representative: A
• MSDS Flag: Yes
• Order Multiple: 25 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D010D0102
• Drawn or Welded: Welded
• Fire Resistance: Yes
• Raised Ground: No
• Wiring System: Armored Cable/Metal Clad/MCI-A/Flex
• Material: Steel
• Base Unit of Measure: EA
• BOX SIZE: 8.5x20.875x9 (in)
• Carton - Gross Weight per Pack: 27 lb.
• Carton - Number of Sub Packs: 25
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169902417
• Carton - Total Units: 25 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169902416
• Pallet - Number of Sub Packs: 55
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 50050169902412
• Pallet - Total Units: 1375 EA
• Pallet Height: 45.500 in
• Pallet Length: 42.500 in
• Pallet Weight: 1222.616 lb.
• Pallet Width: 48.000 in

Certifications

• Certified Listed: UL Listed
• EU RoHS Indicator: Contact Manufacturer
