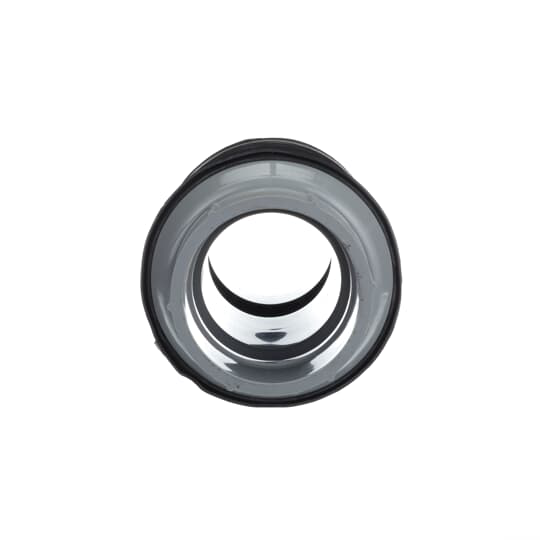

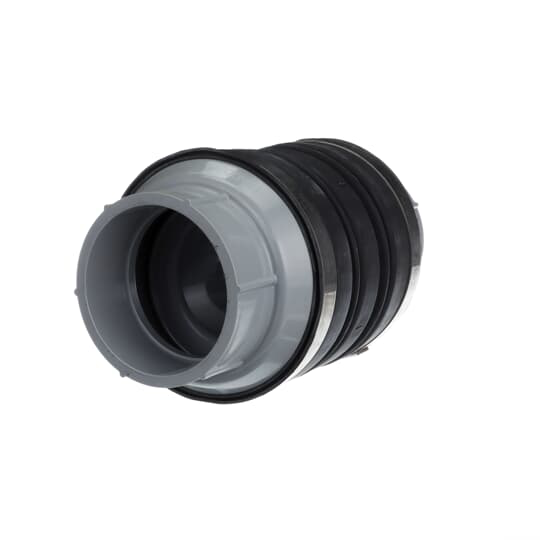

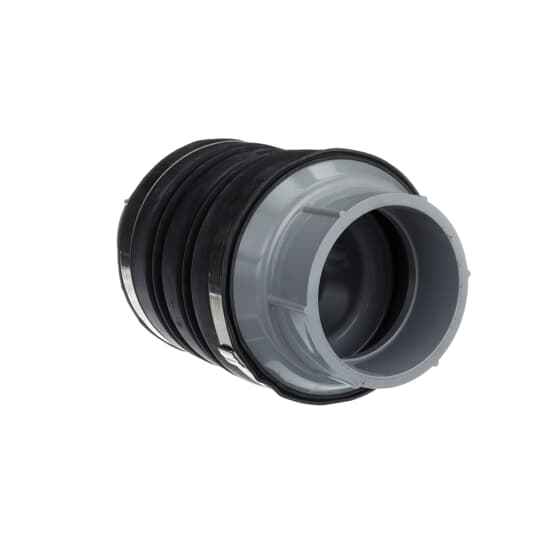

4 IN PVC EXP/DEFL COUPLING – Expansion and Deflection Coupling

The 4 IN PVC EXP/DEFL COUPLING by Thomas & Betts is a non-metallic expansion and deflection coupling designed to join two rigid PVC conduit runs where movement at structural joints is required. It is commonly used in infrastructure applications such as bridges, tunnels, inter-building walkways, docks, piers, and wastewater and water treatment facilities. This coupling provides flexible connections that accommodate axial, parallel, and angular deflections, ensuring safety and compliance with electrical codes. Ideal for electrical distributors, lighting solutions, wire and cable installations, and as a component from a switchgear supplier, it supports durable and corrosion-resistant conduit systems in demanding environments.

Specifications

• Product Name: 4 IN PVC EXP/DEFL COUPLING
• Manufacturer: Thomas & Betts
• Manufacturer Part Number: XD010NM-TB
• Material: PVC with neoprene rubber boot and stainless steel clamps
• Trade Size: 4 inches
• Dimensions: Length approximately 12.25 inches (Dimension A), 7.17 inches (Dimension B)*
• Product Weight: 7.16 lbs
• Application: Bridges, tunnels, inter-building walkways, docks, piers, wastewater and water treatment facilities
• Compliance: NEC Article 300.4(H), cULus listed, CSA certified to CSA C22.2 No. 85
• Suitable for indoor, outdoor, direct burial, and concrete embedment
• UV resistant and corrosion resistant

Features

• Flexible neoprene outer jacket with tamper-proof stainless steel straps for superior protection

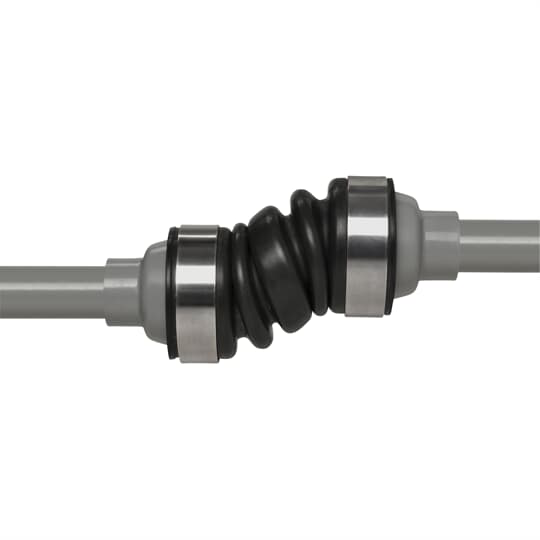

• Accommodates axial or parallel deflection up to 3/4 inch and angular deflection up to 30°
• Inner sleeve maintains a constant smooth inner diameter to ease wire pulling and prevent insulation damage
• Meets National Electrical Code requirements for expansion joint applications
• Compatible with Schedule 40 and Schedule 80 PVC conduit and fiberglass raceways (with appropriate adhesive)
• Up to five times faster installation compared to traditional methods
• Reduces SKU complexity by up to 5-to-1
• UV resistant for outdoor applications

Downloads and Links

• Technical Data Sheet (TDS000230)
• Installation Instructions (XD010NM-TB)
