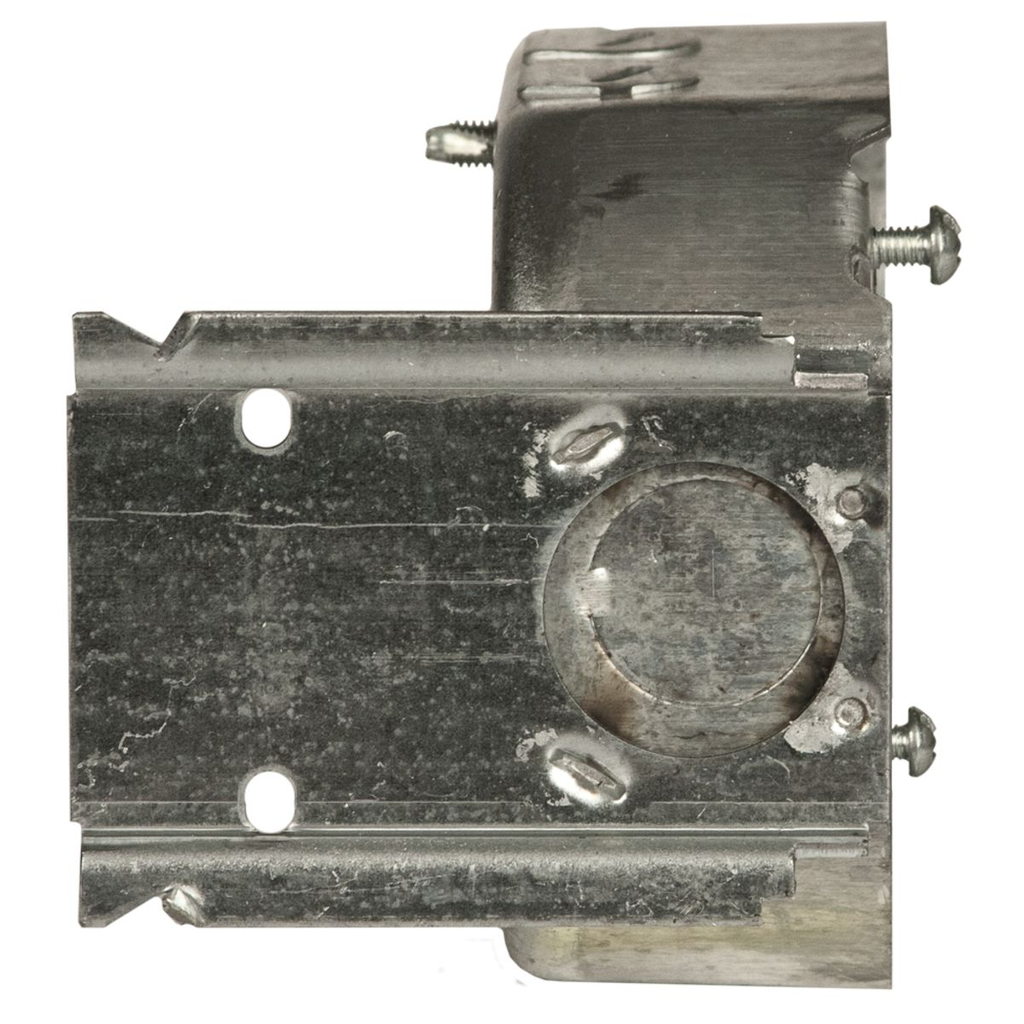

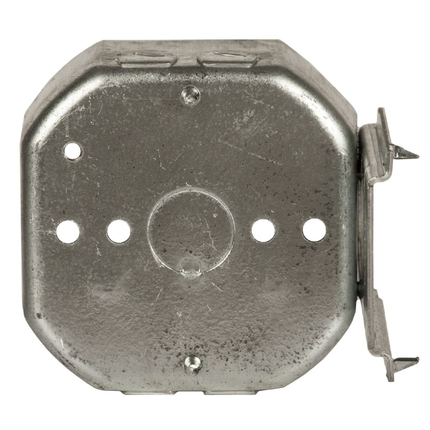

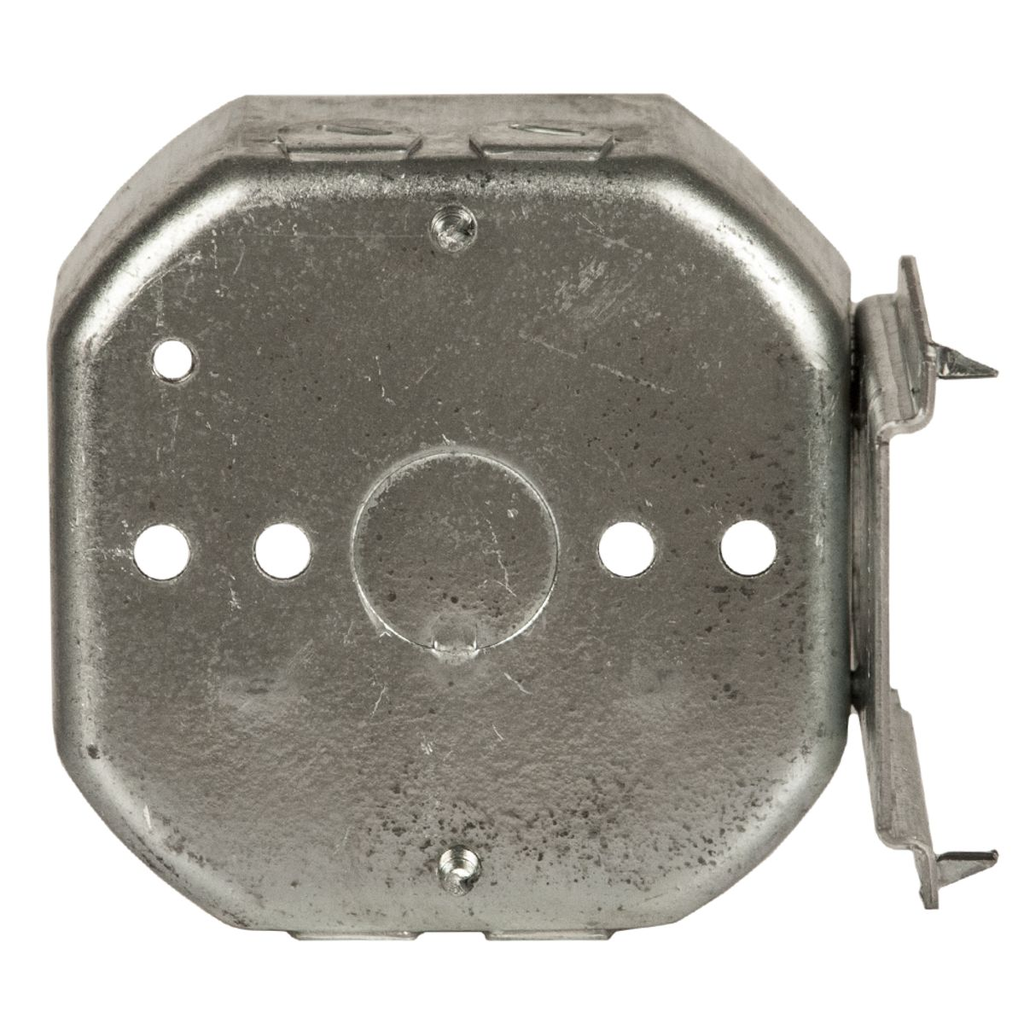

4 in. Octagon Box, Drawn, 1-1/2 in. Deep, Three 1/2 in. KO's & NMSC Clamps, J Bracket
4 in. Octagon Box, Drawn, 1-1/2 in. Deep, Three 1/2 in. KO's & NMSC Clamps, J Bracket
Total Price: $17.27 per each Sold in increments of 1 each
Description
Features
- Drawn steel construction with "J" bracket with spurs, slotted holes for toe-nailing and gauging notches at 3/8 in and 1/2 in. and nonmetallic sheathed cable clamps
- 4 in. x 1-1/2 in. deep
- Supplied with three 1/2 in. knockouts
- Combination Phillips/slotted screw heads
- 15.5 cu. in. capacity
Specifications
- Country of Origin: United States
- Actual Depth: 3.33 in
- Buy American Compliant: Contact Manufacturer
- Dimensions: 3.33 in x 4.067 in x 3.579 in
- Width: 4.067 in
- Each - Width: 4.067 in
- Height: 3.579 in
- Product Type: Steel Boxes and Covers
- Color: Gray
- Cubic Capacity: 15.5 cu.in
- Depth: 1.5 in
- Knockouts: 1/2 in
- Length: 3.33 in
- Size: 3.33 in x 4.067 in x 3.579 in
- Standard: UL Listed
- Type: Box
- Bracket Type: J, for Wood Studs
- Weight: 0.655 lb.
- ARRA Compliant: Contact Manufacturer
- Class Code: D01
- Description - Invoice: 4OCTBXw/JBKT 1-1/2DP NMSC&1/2KO
- Freight Class Code: 06202000
- Harmonization Code: 7326908688
- Image Actual Or Representative: A
- MSDS Flag: Yes
- Order Multiple: 25 EA
- Returnable Indicator: Yes
- Stock Indicator: S - Shelf Stock
- Sub Class Code: D012D0120
- Ceiling Fan Rated: No
- Drawn or Welded: Drawn
- Fixture Lbs.: 50 lb.
- Power Distribution Features: Fire Rated
- Raised Ground: No
- Wiring System: Nonmetallic Sheathed Cable
- Material: Steel
- Proposition 65 Warning Required: No
- Base Unit of Measure: EA
- BOX SIZE: 10x11.125x8.5 (in)
- Box Type: Ceiling Box
- Carton - Gross Weight per Pack: 16.45 lb.
- Carton - Number of Sub Packs: 25
- Carton - Pack Description: Carton
- Carton - SCC-14 Next Lower Level Sub Pack: 50169001608
- Carton - Total Units: 25 EA
- Each - Pack Description: Each
- Lowest Level UOM: Each
- Pallet - GTIN - Package: 70050169001607
- Pallet - Number of Sub Packs: 80
- Pallet - Pack Description: Pallet
- Pallet - SCC-14 Next Lower Level Sub Pack: 40050169001606
- Pallet - Total Units: 2000 EA
- Pallet Height: 47.375 in
- Pallet Length: 48.000 in
- Pallet Weight: 1412.040 lb.
- Pallet Width: 42.000 in
Certifications
- Certified Listed: UL Listed
- EU RoHS Indicator: Contact Manufacturer
Downloads
Spec SheetMSDS
Catalog Full Asset Reference 1
Catalog Full Asset Reference 2
Certification Document Asset Reference 1
Certification Document Asset Reference 2
Sales Drawing Asset Reference
SDS Asset Reference
Terms and Conditions Asset Reference
More Information
Manufacturer Catalog Number
160
Weight
32.8900
Width
4.067
Country of Origin
United States
Made in Usa
Yes
Material
Steel
Color
Gray
Depth
1.5 inches
