Description
Features

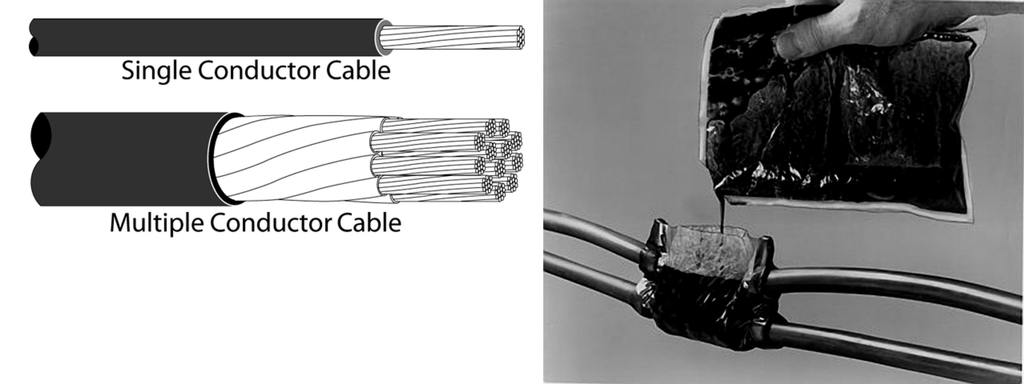

- Includes flexible film plastic mold with built-in spacer web and sealing strips along the adjacent edges
- 3M™ Scotchcast™ Electrical Insulating Resin 2104 in a convenient closed mixing pouch
- Includes comprehensive instruction booklet showing installation techniques for typical splice configurations, in both the horizontal and vertical positions.
- Includes pressure-sensitive adhesive film sealing strip
- RoHS 2011/65/EU Compliant
Specifications
- Manufacturer Catalog Number: 7100009589
- Cable Shielding: Non-shielded
- Cable Type: Power Cable
- Manufacturing Origin: USA
- Maximum Cable Outside Diameter: 7/16 Inch (run & tap)
- Maximum Cable Outside Diameter (Metric): 11.1 mm (run & tap)
- Maximum Conductor Size: 4 AWG
- Minimum Conductor Size: 8 AWG
- Splice Type: Resin
- Split Bolt Maximum Conductor Sizes: 8 AWG stranded
- Voltage: 1 kV
Packaging
- Package Length: 2.12500 in
- Package Height: 8.12500 in
- Package Weight: 0.5000 LBS
Downloads
Spec SheetMore Information
Manufacturer Catalog Number
85-10
Weight
5.0000
Voltage
1 kilovolts
