Overview

3M™ Modular Splicing Kit 5815 is a fully shielded separable connector system. It allows a complete dead-front connection that is suitable for operating in submerged or locations. This kit is used with the 3M Modular Splicing System 5815 Series that is rated for 5 to 25 kV and 600 amp industrial shielded power cables.

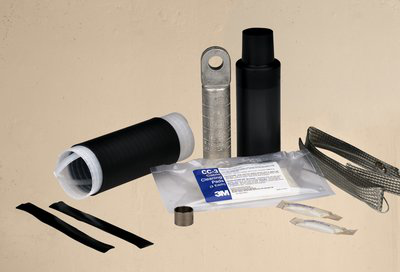

3M™ Modular Splicing Kit 5815 includes 1 cable adapter, 1 aluminum compressed connector, 1 cold shrink jacketing tube, 2 silicone lubricants and more. It provides installation information for wire shield, tape shield, UniShield® and jacketed concentric, neutral-type solid dielectric cables. For use with 5815 kits to provide for It is suitable for dead-ending, splicing and connecting to dead-front apparatus like switches, switchgear and transformers that are equipped with bushings. It has an insulating plug that provides a safe means of testing the circuit without disturbing the bolted connection. Simply adding or removing modular components helps the system for future modification. Meets ANSI/IEEE Standard 386.

• Splices tape shield, wire shield, UniShield® and JCN cables
• Suitable for use with a splicing kit, tap splicing kit, equipment kit and dead-end kit
• Insulation diameter of 0.98 to 1.14 inches
• Accommodates wire size of 500 kcmil (stranded)
• Rated for 5 to 8 kV, 600-amp cables
• Includes 1 ground braid assembly, 2 mastic sealing strips, 1 CC-3 cable cleaning pad kit, 1 constant force spring and 1 instruction sheet
• ANSI Certified and IEEE Approved
• 1 kit/case

Specifications

• 3M ID: 80611200363
• Cable Voltage Rating: 5 kV, 8 kV
• Conductor Size by Voltage: (5 kV, 100%) 500 kcmil, Stranded, (5 kV, 133%) 500 kcmil, Stranded, (8 kV, 100%) 500 kcmil, Stranded
• Conductor Sizes: 500 kcmil
• Current Rating: 600 Ampere
• Family: 3M™ Cable Adapter Kit
• Insulation Diameter Range: 0.980-1.140 in
• Insulation Diameter Range (metric): 24.9-29.0 mm
• Insulation Level: 100%, 133%
• Insulation Outside Diameter: 0.98 to 1.14 Inch
• Product Series: 5815
• Product Type: Splice
• RoHS 2011/65/EU Compliant: Undetermined
• RoHS EU Comments: Contact 3M for information
• Separable Connector Type: Dead Break Elbows
• Shielding Type: Jacketed Concentric Neutral (JCN), Tape Shield, UniShield®, Wire Shield
• Splice Type: Modular

Legal Disclaimer

• Manufacturing Origin: USA
• The designation that a product is Manufactured in the USA means the product undergoes substantial transformation in one of our U.S. Manufacturing plants. Some products contain imported components.
• Note: 3M products offered on a government contract that require country of origin representation must be certified by 3M Trade Compliance. Contact customer service at 800-245-3573 to request a certificate.
