Features

• Firestop tested for through penetration applications up to 4 hours in accordance with ASTM E 814 (UL 1479) and CAN/ULC S115

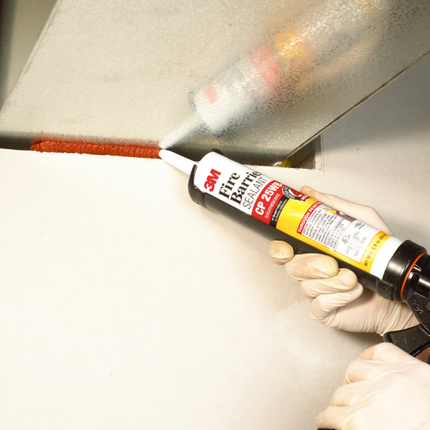

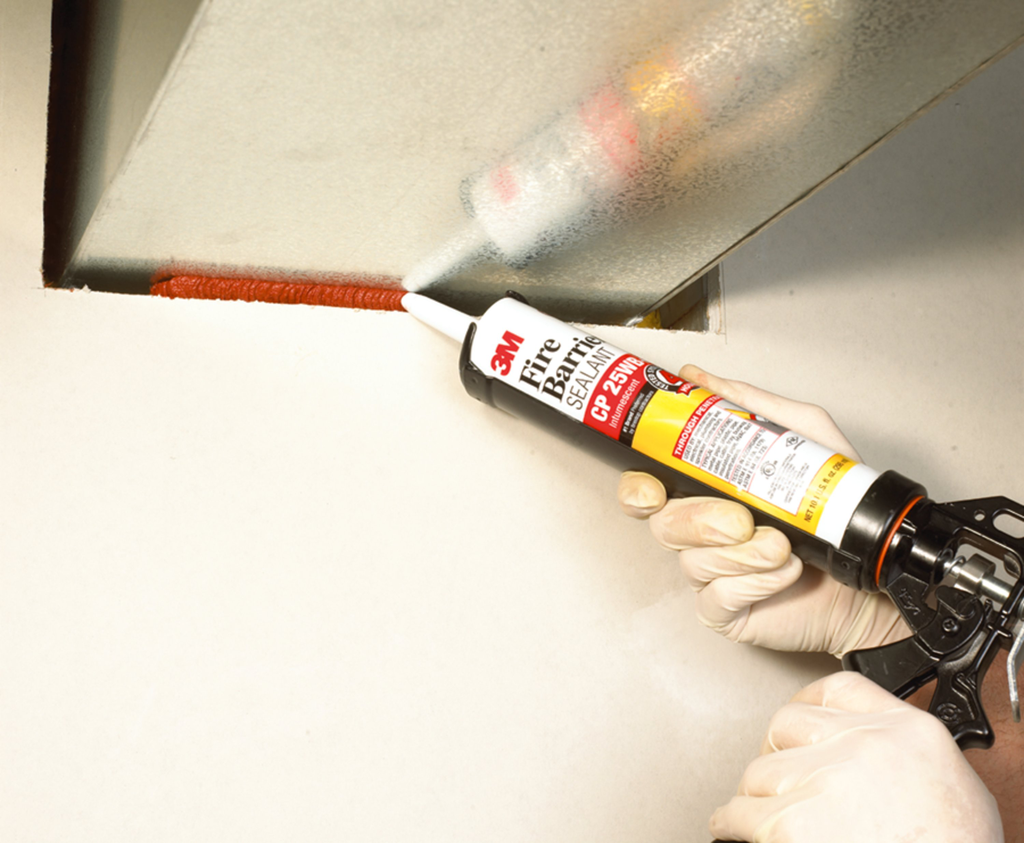

• Applied with conventional caulking equipment with excellent caulk rate
• Sag-resistant properties offer clean application as well as strong adhesion
• Water-based and paintable sealant provides easy application and clean-up
• Sealant is re-enterable and repairable

Specifications

• Manufacturer Catalog Number: 7000006379
• Color Family (incorporate Product Color): Red
• Fire Rating: 4 Hour

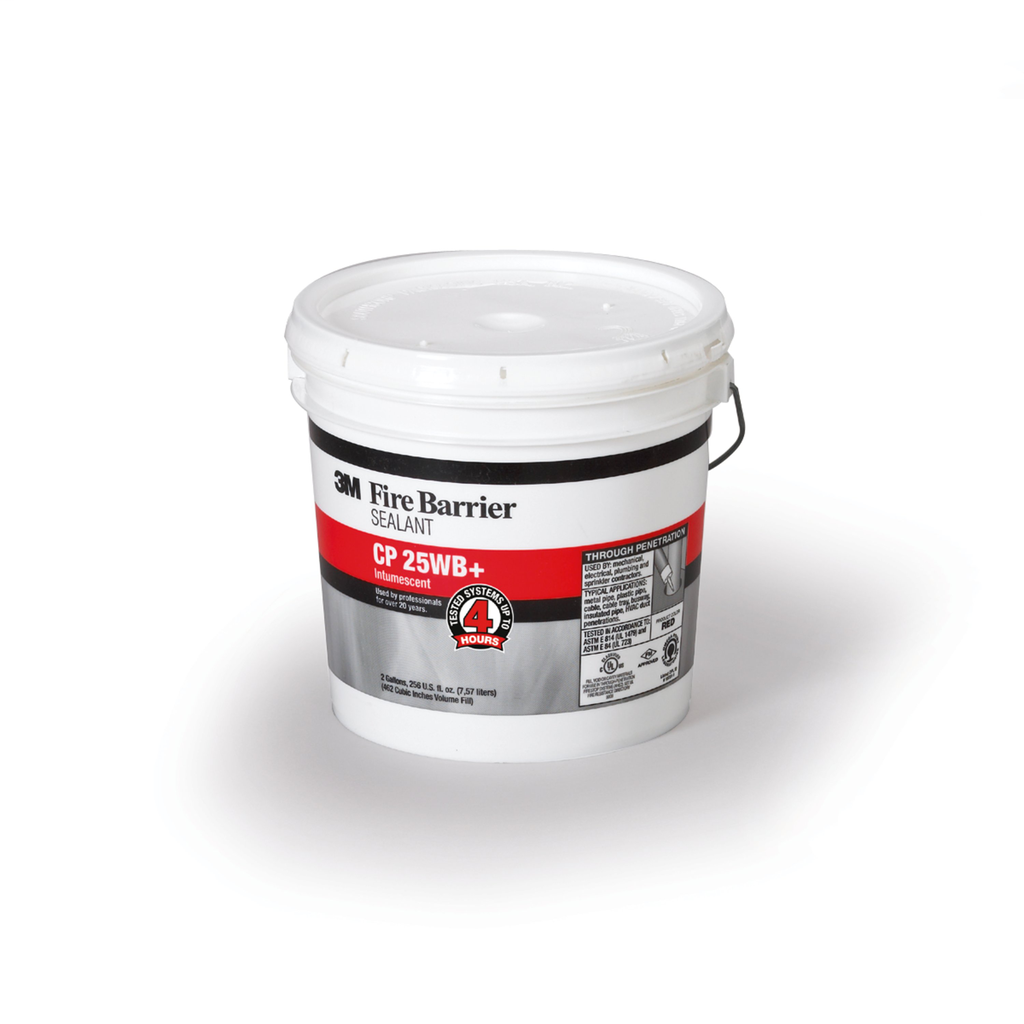

• Size: 5 Gallon (US)
• Smoke Seal: Yes
• Sound Barrier: 54 in 54
• Suggested Application 1: Ideal for sealing single or multiple through penetrations in fire-rated construction. Typically used in mechanical, electrical and plumbing applications to firestop openings created by the following penetrations in fire-rated floors, floor/ceilings or walls: metallic pipe, plastic pipe (excluding CPVC), conduit, power and communication cable, cable trays, busways, combos, insulated pipe and HVAC duct penetrations. Also used to firestop blank openings and static construction joints.
• Volume (Imperial): 5 gal
• Volume (Metric): 18.9 L
• Water-tight: No
