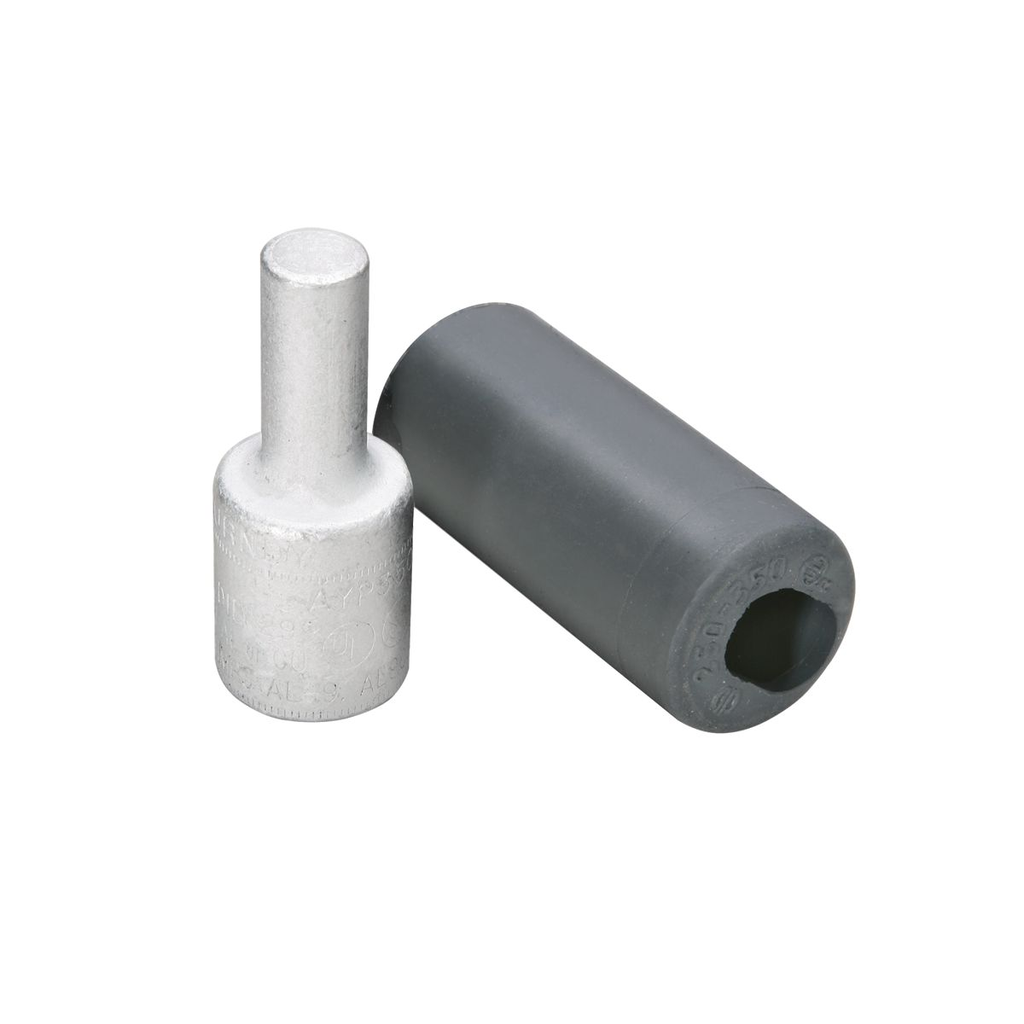

Features

• All-aluminum electro-tin plated design eliminates possible bi-metallic corrosion
• Provides the shortest connector length design possible permitting easy installation in equipment with limited working space
• Solid electro-tin plated aluminum plug
• Proper electrical connection made easily and eliminates the "how tight is tight" issue
• Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire permitting use of larger aluminum wire to connect equipment
• Offset plug design available in sizes 2/0 through 750 kcmil providing flexibility and maximizing the use of limited space while eliminating interference between conductors and equipment
• Electro-tin plating resists corrosion
• Factory pre-filled with PENETROX oxide inhibiting compound with conductive metallic particles to penetrate aluminum oxide between strands and forms an air-tight connection
• EPDM rubber covers supplied with each connector and rated for 600V eliminating taping
• Only 5 die sets are required to install the complete line from #6 to 750 kcmil reducing inventory requirements
• Supplied in plastic convenience pack so cover and connector are kept together and free of foreign material until opened
• Connectors are clearly marked with catalog number, wire size, along with a color-coded die index providing clear, easy to use information
• All-Aluminum Electro-Tin Plated design eliminates possible bi-metallic corrosion and provides shortest connector length design possible for easy installation in equipment with limited space. Solid electro-tin plated aluminum plug makes properly connection easily. Smooth surface on the solic EC plug provides greater area contact establishing excellent conductivity. Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire permitting use of larger aluminum wire to connect equipment. Offset plug design is also available. Electro-tin plating resists corrosion, factory prefilled with PENETROX joint compound. EPDM Rubber covers are supplied with connector and rated for 600 Volts, eliminates taping. Connectors are clearly marked with catalog number, wire size, and color coded die index providing clear, easy to use information.

Specifications

• Country of Origin: United States
• Buy American Compliant: Yes
• ChannelSightWidgetId: 705
• Conductor - AL Str Size: 350 KCMIL
• Conductor - AL Str Size Range: 350 kcmil
• Conductor - Copper DLO Size: 313 KCMIL
• Conductor - Copper DLO Size Range: 313 kcmil
• Conductor - Copper Flex I Size: -
• Conductor - Copper Str Compact Size: 350 KCMIL
• Conductor - Copper Str Size: 350 KCMIL
• Conductor - Copper Str Size Range: 350 kcmil
• Conductor - Material: ALUMINUM / COPPER
• Description - Slang: Compression Aluminum Pin Adapters
• Dimension - A Outside Diameter inch: 1.10 in
• Dimension - B Length fraction: 1-1/16 in
• Dimension - B Length inch: 1.07 in
• Dimension - B Outside Diameter inch: 0.57 in
• Dimension - L Length Overall mm: 70 mm
• Dimension - Length Overall inch: 2.75 in
• Dimension - P inch: 1.34 in
• Dimension - Strip Length inch: 1-1/8
• Width: 1.10 in
• Each - Width: 1.10 in
• Equivalent Pin Size: 250 kcmil
• Industry Standard(s): UL 486A-486B
• Insulation Type: EPDM Rubber
• Physical Attribute - Number of Crimps Required: 2
• Pin Type: Solid
• Plated: Y
• Plating Type: Tin
• Product Type: TERMINAL
• Standards - Industry Standards Met: UL 486A-486B
• Standards - RoHS Compliance Status: CM
• Trade Name: HYPLUG™
• Application: Wire Termination
• Conductor Type: CODE/FLEX
• Finish: Tin-Plated
• Insulation: Y
• Special Features: Features: All-Aluminum Electro-Tin Plated design eliminates possible bi-metallic corrosion and provides shortest connector length design possible for easy installation in equipment with limited space. Solid electro-tin plated aluminum plug makes properly connection easily. Smooth surface on the solic EC plug provides greater area contact establishing excellent conductivity. Solid plug has equivalent cross-sectional area as current carrying equivalent copper wire permitting use of larger aluminum wire to connect equipment. Offset plug design is also available. Electro-tin plating resists corrosion, factory prefilled with PENETROX joint compound. EPDM Rubber covers are supplied with connector and rated for 600 Volts, eliminates taping. Connectors are clearly marked with catalog number, wire size, and color coded die index providing clear, easy to use information.
• Standard: UL 486A-486B
• Sub Brand: HYPLUG
• Temperature Rating: 194
• Type: Aluminum Pin Adapters
• Voltage Rating: 35 kV
• Conductor Size: 350 KCMIL
• Connector Type: INLINE PIN
• Finish Type: Tin-Plated
• Terminal Type: Pin
• Wire Size: 350 KCMIL
• ARRA Compliant: Yes
• Certification Agency: Proposition 65
• Class Code: B55
• Description - Invoice: 350KCMIL AL HYPLUG
• Freight Class Code: 16027000
• Harmonization Code: 8535908020
• Image Actual Or Representative: A
• Lead Time: 10 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Stock Indicator: S - Shelf Stock
• Sub Class Code: B55BIDF
• Die Index: 299
• UL Listed: Yes
• Color Code: Brown
• Material: ALUMINUM
• Voltage - Maximum: 35000 V
• Base Unit of Measure: EA
• BOX SIZE: 5.125x7.373x6.438 (in)
• Carton - Gross Weight per Pack: 2.000 lb.
• Carton - Number of Sub Packs: 10
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00781810737705
• Carton - Total Units: 10
• Case - SCC-14 Next Lower Level Sub Pack: 30781810737706
• Each - Number of Sub Packs: 1
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Package - Gross Weight per Pack: 2 lb.
• Package - GTIN - Package: 30781810737706
• Package - Number of Sub Packs: 10
• Package - Pack Description: Package
• Package - SCC-14 Next Lower Level Sub Pack: 00781810737705
• Package - Total Units: 10 EA
• Package Height: 4.50 in
• Package Length: 7.06 in
• Package Quantity: 10 EA
• Package Weight: 2 lb.
• Package Width: 6.13 in
• Pallet - GTIN - Package: 70781810737704
• Pallet Height: 46.750 in
• Pallet Length: 48.000 in
• Pallet Weight: 637.000 lb.
• Pallet Width: 40.000 in
• Standard Package Quantity: 10

Certifications

• CSA Approved: Yes
• cULus: No
• ETL: No
• UL Recognized: No
• EU RoHS Indicator: Yes
