338-G5 Stroke Chime – Electrical Distributor and Lighting Solutions

The Edwards 338-G5 Stroke Chime is a surface mount single stroke chime designed for both AC and DC operation, suitable for heavy-duty commercial and industrial applications. It is ideal for use in electrical distribution systems, lighting solutions, wire and cable setups, and as part of switchgear supplier offerings. The chime operates reliably with up to 10 pulses per second and features a robust underdome construction requiring no lubrication.

Specifications

• Manufacturer: Edwards Signaling
• Model Number: 338-G5
• Mounting Type: Surface mount with Adaptaplate® mounting plate
• Operating Voltage: 24V AC
• Current: 0.5 A
• Power Consumption: 12 VA
• Material: Plastic tipped stainless steel striker
• Finish: Satin aluminum
• Sound Level: 91 dB at 1 meter / 81 dB at 10 feet

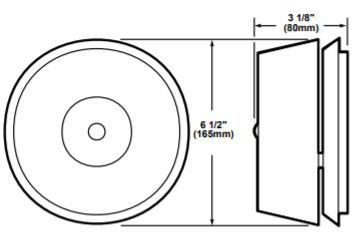

• Dimensions: 6 1/2" (165 mm) diameter, 3 1/8" (80 mm) depth
• Weight: Approximately 2.32 lb (net), 2.68 lb (shipping)
• Mounting Compatibility: Fits plaster covers with 2 3/4" (70 mm) center holes, single gang openings, 3 1/4" (83 mm), 3 1/2" (89 mm), or 4" (102 mm) octagon or square boxes; also mounts directly on any wall surface

Features

• No exposed terminals for enhanced safety
• Tamper-proof cover screw to prevent unauthorized access
• Plastic tipped stainless steel striker for durability and consistent performance
• High-quality satin aluminum finish for corrosion resistance
• Requires no lubrication, reducing maintenance needs
• Includes Adaptaplate® mounting plate for versatile installation options
• Compatible with flush mounting accessories: Cat. No. 512-A grille and 512-1 back box
