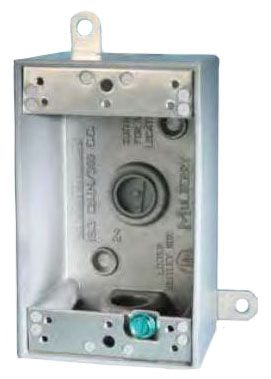

Description
Features
- Permanently Attached Lugs Rotate for Maximum Versatility
- Heavy Duty Mounting Straps Exceed All Applicable UL Pull-Tests
- Easy Access Ground Screw Hole Located Along the Surface of the Mounting Strap
- Superior Powder Coat Paint Finish Assures Maximum Weat
- Ground Screw and Closure Plugs Included
- Made in USA
Additional Information
- Enclosure Rating NEMA 3R
- Includes Ground Screw and (2) Close-Up Plug
- Excludes Mounting Lug
- Application Dry/Damp/Wet Location
- Applicable Standard ARRA Compliant

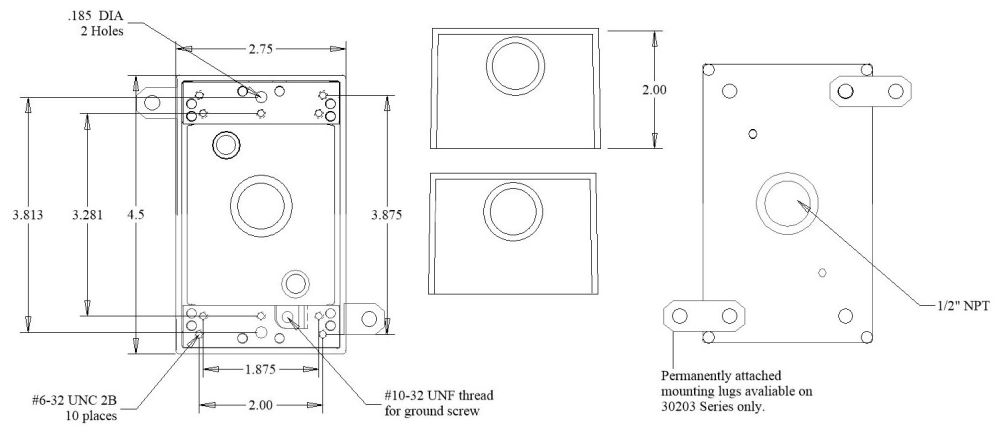

Specifications
- Height: 4.5 Inch
- Width: 2.75 Inch
- Depth: 2 Inch
- Capacity: 18 Cubic Inch
- Number of Gangs: 1
- Number of Hubs: 5
- Hub Location: (1) Back, (1) Each Side, (1) Each End
- Hub Size: 1/2 Inch
- Material: 0.094 Inch Thick Heavy Duty Die-Cast Aluminum
- Color: Gray
- Finish: Powder Coated Painted
- Approval: UL, UL 514A
Downloads
Specification/TechnicalCatalog
Other 1
More Information
Manufacturer Catalog Number
30219
Weight
60.0000
Width
2.75
Height
4.5
Material
0.094 Inch Thick Heavy Duty Die-Cast Aluminum
Color
Gray
