Features

Color Variations

• Ivory

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• RoHS: Compliant
• UL Fed Spec WS896E: File #E7458
• UL Standard: UL 20
• Warranty: 10-Year Limited

Electrical Specifications

• Amperage: 30 A
• Dielectric Voltage: Withstands 1500V for 1 minute
• Endurance: 50,000 cycles minimum
• Grounding: Self-Grounding
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Temperature Rise: Maximum 30 degrees C rise
• Voltage: 120/277 VAC

Material Specifications

• Base Material: Thermoplastic
• Color: Brown
• Contact Material: Silver Alloy
• Cover Material: Thermoplastic
• Ground Clips: Brass
• Grounding Screw: Brass 8-32
• Strap Material: Steel
• Terminal Screws: Brass 8-32
• Toggle: Polycarbonate

Product Features

• Body Material: Thermoplastic

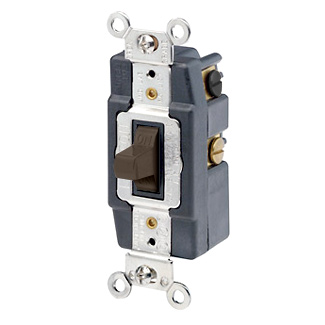

• Device Type: Toggle Switch
• Feature: Maintained Contact CTR OFF
• Function: Double-Pole Double-Throw
• Grade: Extra Heavy-Duty Industrial Specification Grade

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 65°C

AC Horsepower Ratings

• HP Rating: 2HP-120V 2HP-240V-277V

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-#10 AWG back wired; #14-#12 AWG side wired
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Back or Side Wire
