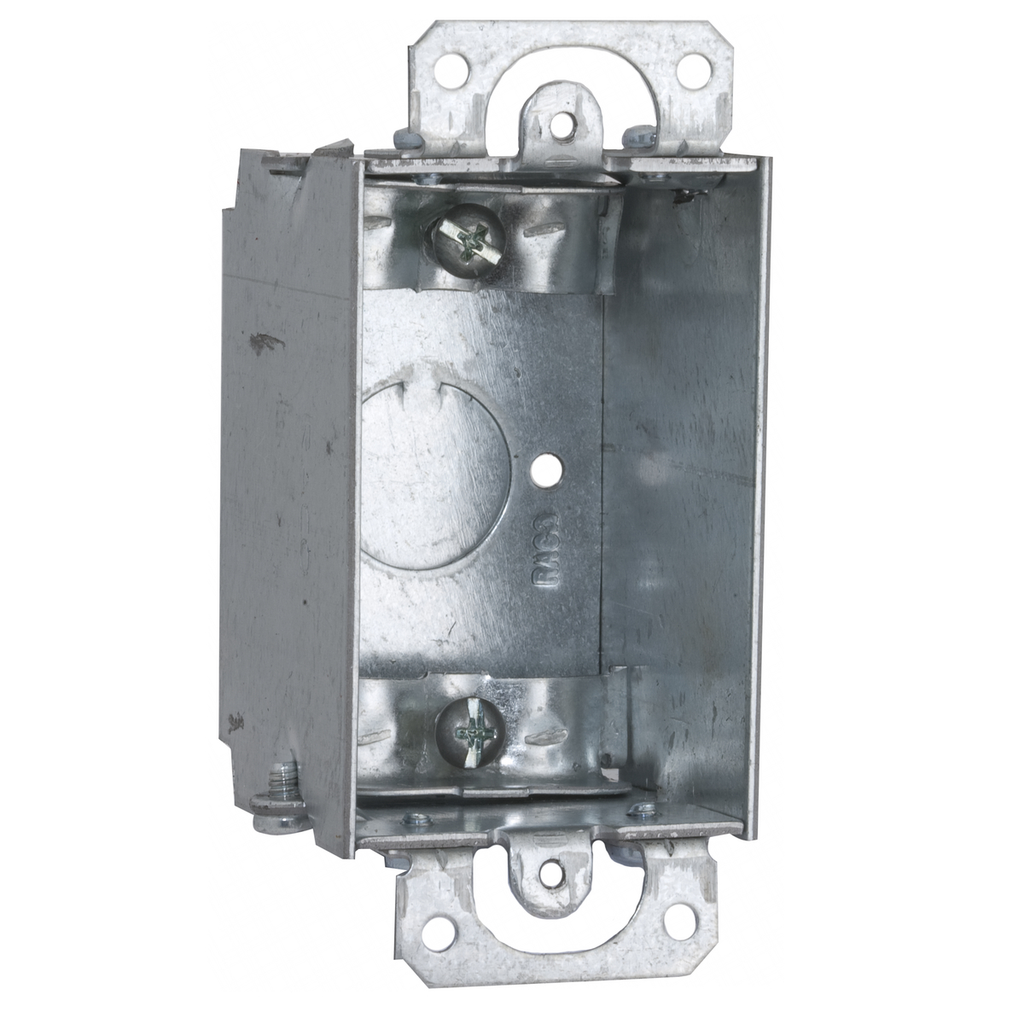

3 in. x 2 in. Switch Box, Gangable, 2 in. Deep, One 1/2 in. KO & NMSC Clamps, Plaster Ears
3 in. x 2 in. Switch Box, Gangable, 2 in. Deep, One 1/2 in. KO & NMSC Clamps, Plaster Ears
Total Price: $22.64 per each Sold in increments of 1 each
Description
Features
- 3 in. x 2 in., 2 in. deep
- Gangable switch boxes offer the option of constructing a box to hold two or more devices
- L clamps provided for non-metallic sheathed cable (NMSC)
- Supplied with one 1/2 in. knockout
- Plaster ears allow a box to be used in "old work" applications
- 10 cu. in. capacity
- Acceptable for use in 2-hour fire rated walls
Specifications
- Country of Origin: Mexico
- Buy American Compliant: Contact Manufacturer
- Width: 2.000 in
- Each - Width: 2.000 in
- Height: 4.219 in
- Product Type: Steel Boxes and Covers
- Color: Gray
- Cubic Capacity: 10.3 cu.in
- Depth: 2 in
- Knockouts: 1/2 in
- Standard: UL Listed
- Type: Switch Box;Box
- Bracket Type: No Bracket
- Weight: 0.513 lb.
- ARRA Compliant: Contact Manufacturer
- Class Code: D01
- Description - Invoice: SWXBXw/EARS 2DP NMSC
- Freight Class Code: 06202000
- Harmonization Code: 7326908688
- Image Actual Or Representative: A
- MSDS Flag: Yes
- Order Multiple: 50 EA
- Returnable Indicator: Yes
- Stock Indicator: S - Shelf Stock
- Sub Class Code: D015D0150
- Ends Cable: 4
- Fire Resistance: Yes
- Gangable: Yes
- Plaster Ears: Yes
- Power Distribution Features: Fire Rated
- Wiring System: Nonmetallic Sheathed Cable
- Material: Steel
- Number of Gang(s): 1-Gang
- Proposition 65 Warning Required: No
- Base Unit of Measure: EA
- BOX SIZE: 10.625x11.375x8.25 (in)
- Box Type: Wall Box
- Carton - Gross Weight per Pack: 25.65 lb.
- Carton - Number of Sub Packs: 50
- Carton - Pack Description: Carton
- Carton - SCC-14 Next Lower Level Sub Pack: 50169004456
- Carton - Total Units: 50 EA
- Each - Pack Description: Each
- Lowest Level UOM: Each
- Pallet - GTIN - Package: 70050169004455
- Pallet - Number of Sub Packs: 80
- Pallet - Pack Description: Pallet
- Pallet - SCC-14 Next Lower Level Sub Pack: 50050169004451
- Pallet - Total Units: 4000 EA
- Pallet Height: 45.625 in
- Pallet Length: 42.000 in
- Pallet Weight: 2097.000 lb.
- Pallet Width: 48.000 in
Certifications
- Certified Listed: UL Listed
- EU RoHS Indicator: Contact Manufacturer
Downloads
Spec SheetMSDS
Catalog Full Asset Reference 1
Catalog Full Asset Reference 2
Certification Document Asset Reference
SDS Asset Reference
Terms and Conditions Asset Reference
More Information
Manufacturer Catalog Number
445
Weight
0.51
Width
2.000
Country of Origin
Mexico
Material
Steel
Color
Gray
Depth
2 inches
Number Of Gangs
1
