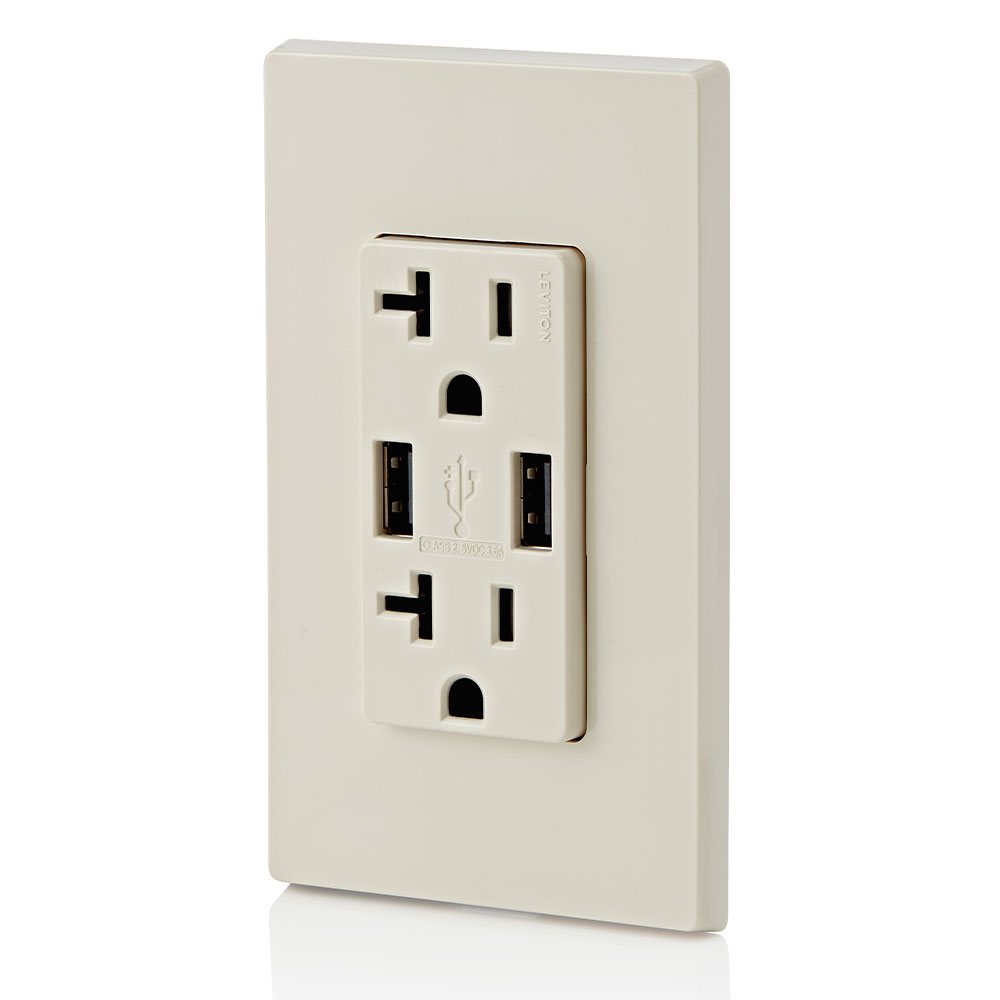

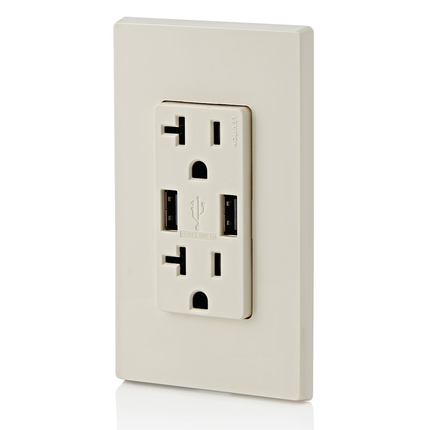

Features

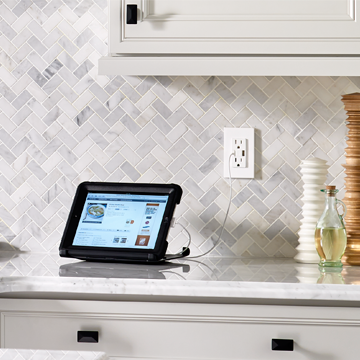

• Perfect for use in residential applications such as kitchens, bedrooms and home offices and in commercial applications such as hotels, airports, restaurants and cafes, salons, office cubicles and college dorm rooms
• Smart chip recognizes and optimizes the charging requirements of individual devices
• Tested to withstand over 10,000 insertions.
• Compatible with USB 3.1, 3.0, 2.0, 1.1 devices
• Fits in a standard wallbox, is compatible with standard wallplates and can be multi-ganged with other devices

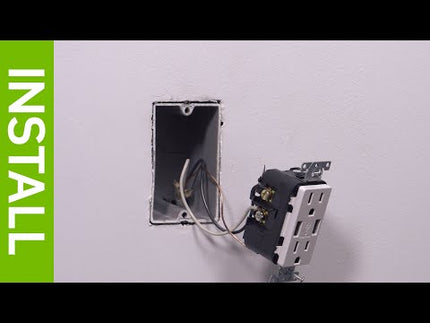

• Easy to install. Can replace existing outlets
• No data transfer capability

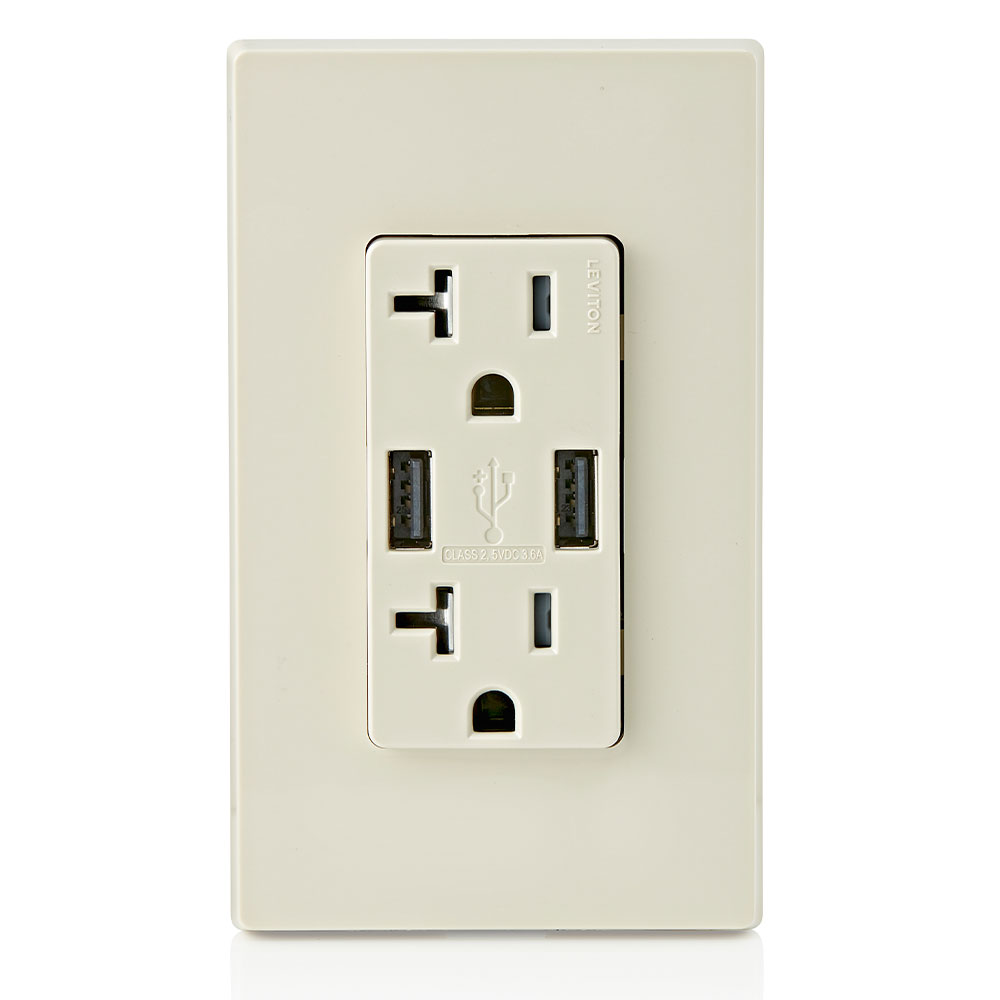

• Compatible with Decora® wallplates and Decora Plus™ screwless wallplates. Wallplate sold separately
• SMART - Built-in smart chip recognizes the individual device’s charging requirement to optimize the charge
• POWERFUL – Two high-powered charging ports with 3.6A of charging power
• CONVENIENT – No more searching for charging adapters! Upgrade your existing outlets so you can charge up to two USB powered electronics at once, leaving the outlets free for additional power needs
• EASY - Compact design fits in a standard wallbox and works with Decora and Decora Plus screwless wallplates.

NEMA

• 5-20R

Color Variations

• Brown

Specifications

• Country of Origin: China
• RoHS Compliant: False

Electrical Specifications

• Amperage: 20 A
• Flammability: Rated V-0 per UL 94
• Grounding: Grounding
• Horsepower Rating: 20A-1 HP
• Operating Temperature: -10°C to 40°C
• Ratings: 20A-125V

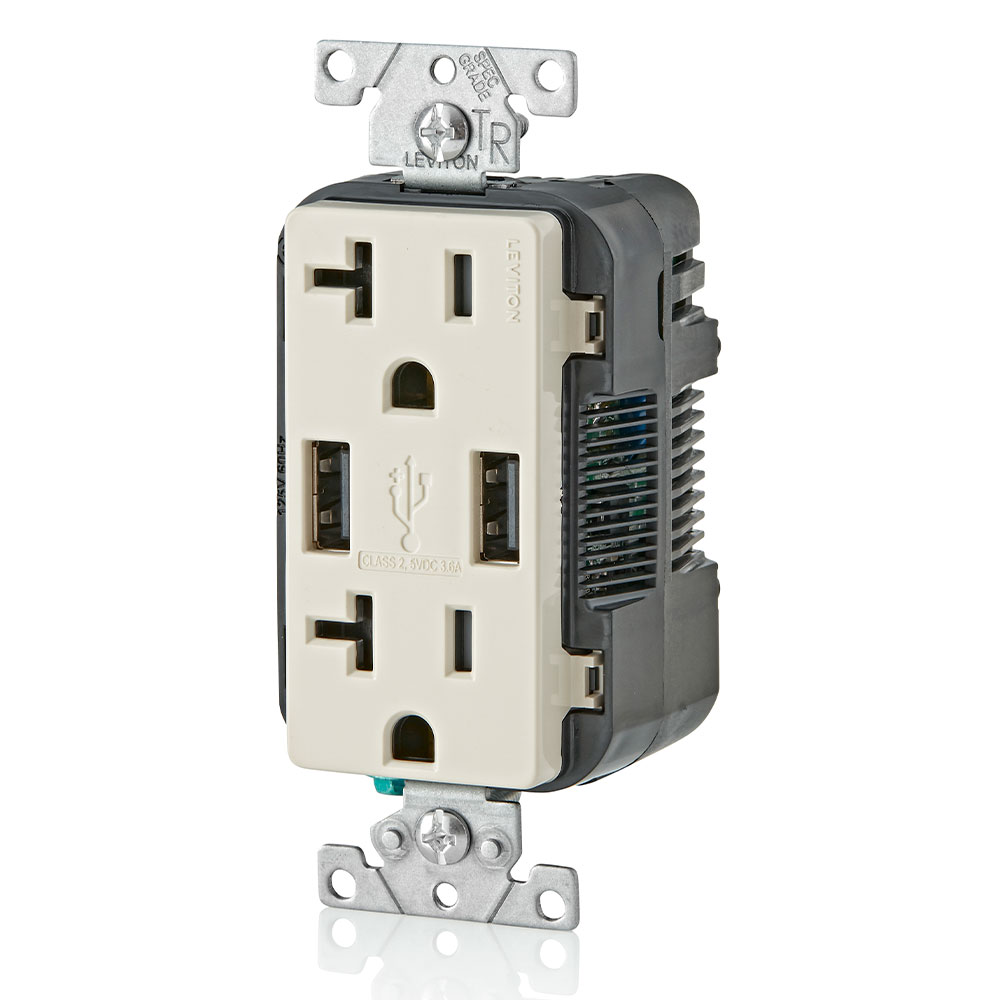

Mechanical Specifications

• Amperage: 20 A
• Color: Light Almond
• Grade: Residential/Commercial Specification Grade
• Product ID: Stamped on Strap
• Terminal Accom.: 14-12 AWG
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Back & Side
• Torque Range: 14 – 18 in.-lbs

Product Features

• Brand: Decora
• NEMA: 5-20R
• Product Type: Outlet/USB Combo
• Type: Type A/A Duplex Receptacle
• Voltage: 125 VAC
• Wallplate: Not Included

Environmental Specifications

• Body Material: Thermoplastic
• Color: Light Almond
• Cover Material: Thermoplastic
• Flammability: Rated V-0 per UL 94
• Operating Temperature: -10°C to 40°C
• Strap Material: Steel

Material Specifications

• Body Material: Thermoplastic
• Color: Light Almond
• Cover Material: Thermoplastic
• Product ID: Stamped on Strap
• Strap Material: Steel
• Terminal Accom.: 14-12 AWG
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Back & Side
• Torque Range: 14 – 18 in.-lbs

Standards and Certifications

• FCC Part 15: Class B for Residential Compliance
• Listed: cCSAus
• NOM: 057
• UL 1310: Yes
• UL 498: Yes
• Warranty: 2-Year Limited
