Features

• Trip threshold meets or exceeds UL requirements for tripping time on ground faults and on both series and parallel arcs for optimal safety
• Engineered to meet the latest UL standard for auto-monitoring (self-test); periodically conducts an automatic internal test to confirm that GFCI protected power is available
• On initial power up, tests the GFCI circuit within 3 seconds
• Patented Lockout Action prevents reset if the device is damaged
• Status Indicator Light provides simple, intuitive feedback on power and protection status as well as indication of line/load reversal for at-a-glance analysis
• TEST and RESET buttons are readily accessible on the face of the device
• Improved immunity to high frequency noise reduces nuisance tripping
• Superior resistance to electrical surges and over-voltages enhancing reliability
• Patented bridge contact design provides individual sets of contacts for receptacle face and downstream receptacles; no power will be delivered to receptacle face if improperly wired (line-load reversed)
• One-piece T-design trip latch mechanism provides efficient operation
• Impact-resistant thermoplastic cover and body for durability
• Expanded wiring options with nine back-wire holes (two for each line and load connection plus one for ground with an internal clamp) for easy installation

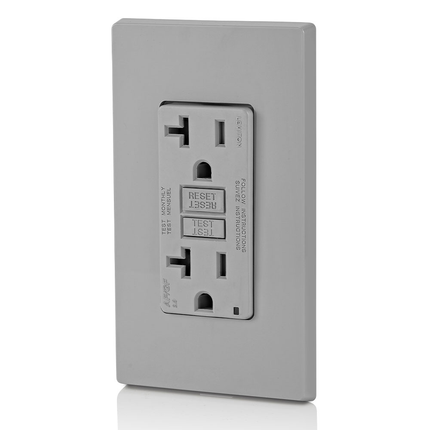

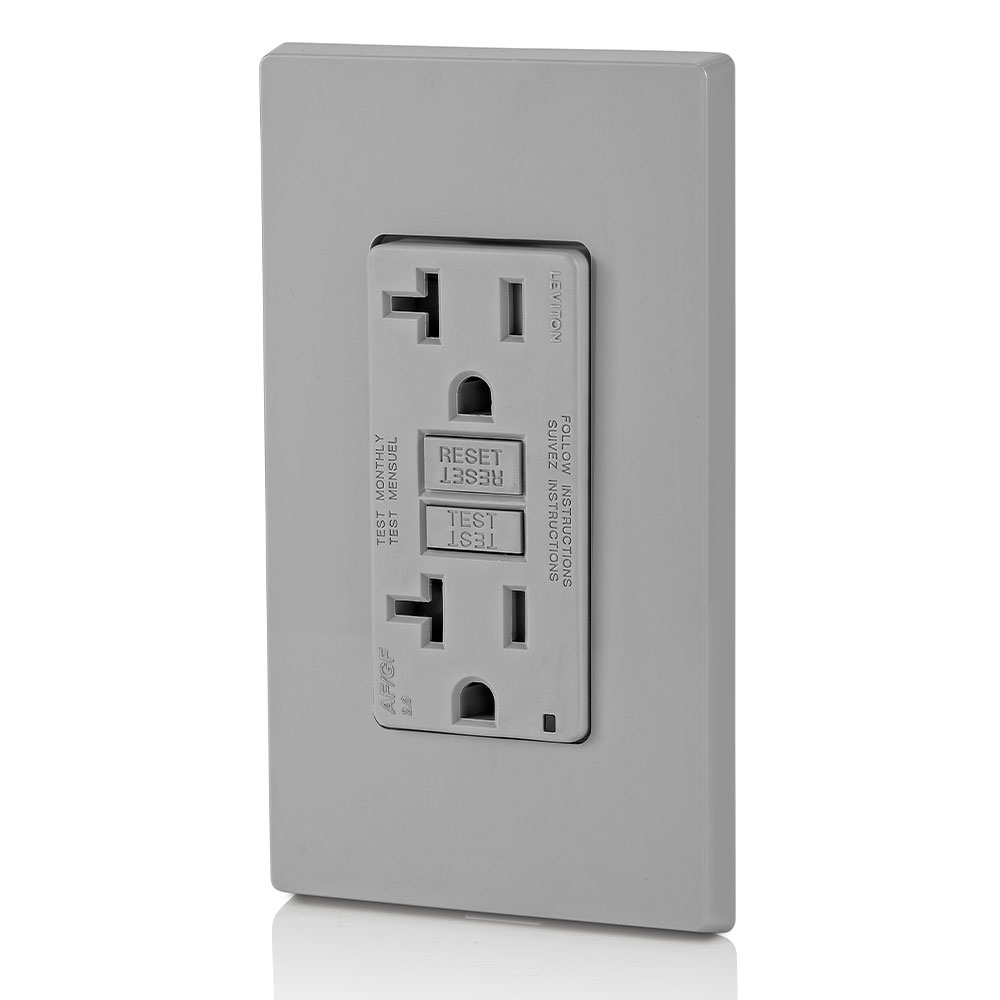

• Compatible with all Decora® devices and wallplates for multi-gang installation option; available in select popular colors

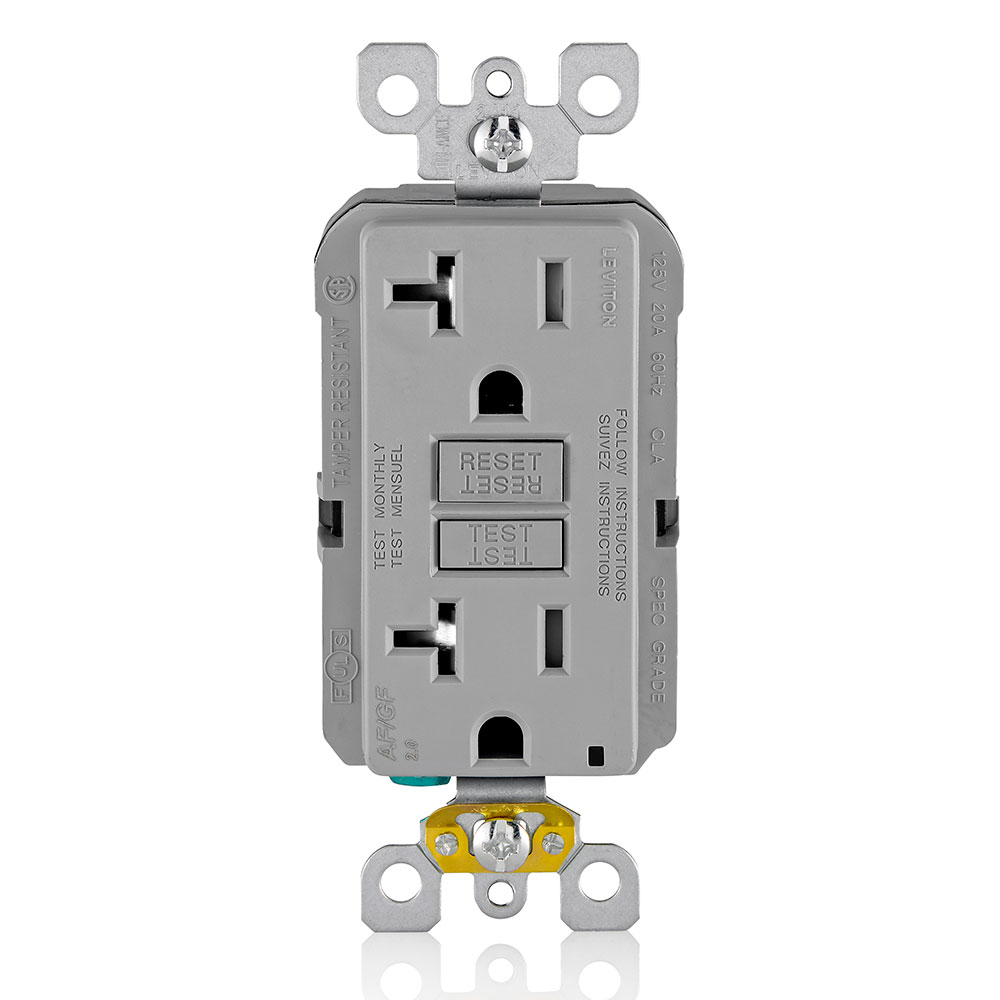

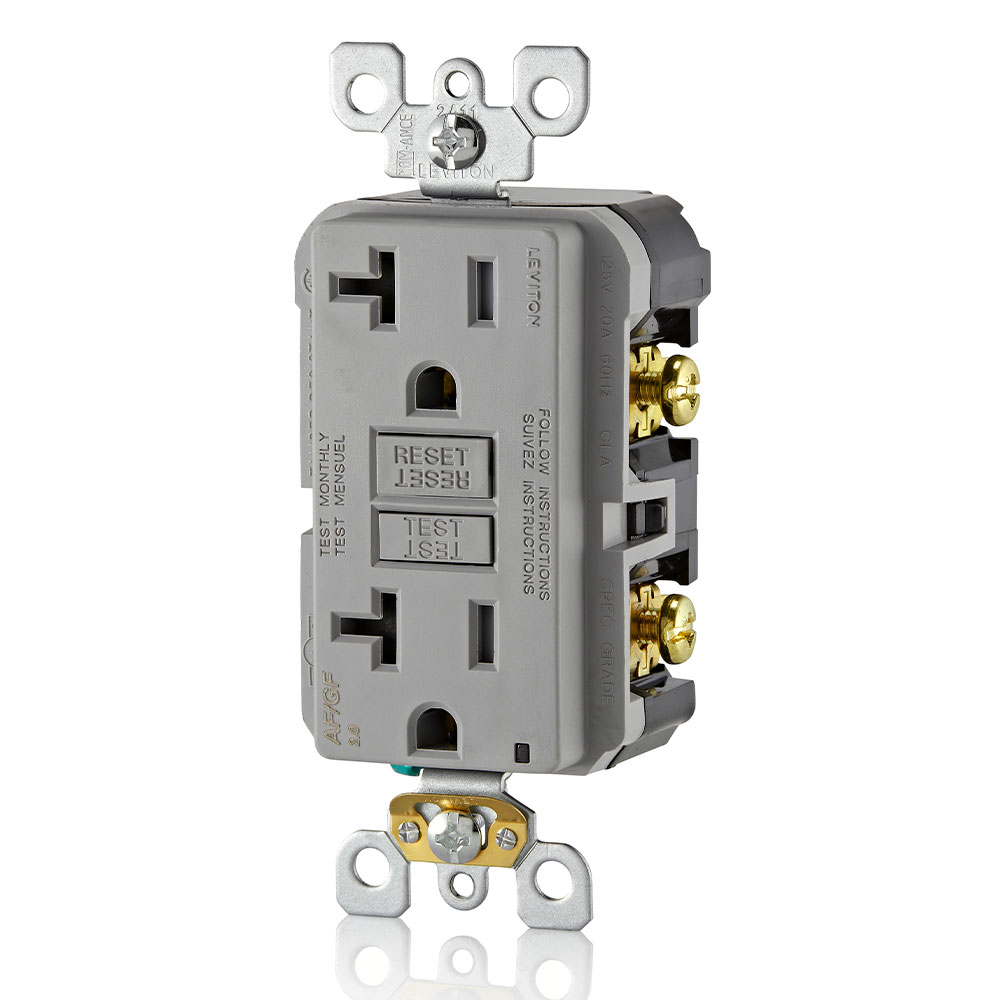

• The SmartlockPro® Dual Function AFCI/GFCI Receptacle offers protection both from electrical fires that could result from arc-faults and from electrical shock due to ground faults in one smart device. Through advanced technology, the SmartlockPro Dual Function AFCI/GFCI Receptacle helps protect home and family by working to detect arc-fault and ground fault hazards and, if detected, quickly cuts off power to help avoid a potential fire or shock occurrence. The SmartlockPro Dual Function AFCI/GFCI Receptacle offers a National Electrical Code® (NEC®) compliant option for AFCI/GFCI protection in residential kitchens and laundry areas for new construction, modifications/extensions and replacement receptacles. It is also ideal as a replacement for ungrounded receptacles, satisfying NEC requirements for both AFCI and GFCI protection.

NEMA

• 5-20R

Color Variations

• Brown

Specifications

• Country of Origin: China
• RoHS Compliant: False

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: Yes
• CSA Technical Information Letter No. M-02A: Yes
• NOM: Yes
• UL Fed Spec WC-596: Yes
• UL1699.A: File E480630
• UL498: Yes

Mechanical Specifications

• Amperage: 20 A
• Color: Gray
• Feature: AFCI, Self-test, Tamper-Resistant
• Grounding: Self-Grounding
• NEMA: 5-20R
• Pole: 2
• Product ID: Ratings are permanently marked on device
• Series: AGTR2
• Standards and Certifications: UL/CSA, NEMA WD6, NEMA WD1
• Strap Material: Galvanized Steel
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back & Side
• Torque Range: 14 – 18 in.-lbs
• Voltage: 125 VAC
• Wire: 3

Product Features

• Type: Duplex Receptacle
• Wallplate: Included

AC Horsepower Ratings

• At Rated Voltage: 1 HP
• Dielectric Voltage: Withstands 1250VAC per UL 1699A
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current

Environmental Specifications

• Body Material: Polycarbonate
• Clamps: Brass
• Face Material: Thermoplastic
• Flammability: Rated V-2 per UL 94
• Grounding Screw: Plated Steel
• Line Contacts: Brass Double-Wipe .031 Thick
• Notes: w/ Wallplate
• Operating Temperature: -35C to +66C
• Terminal Screws: Plated Steel
• Yoke: Zinc-Plated Steel

Material Specifications

• Body Material: Polycarbonate
• Clamps: Brass
• Face Material: Thermoplastic
• Grounding Screw: Plated Steel
• Line Contacts: Brass Double-Wipe .031 Thick
• Notes: w/ Wallplate
• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Terminal Screws: Plated Steel
• Yoke: Zinc-Plated Steel

Electrical Specifications

• Dielectric Voltage: Withstands 1250VAC per UL 1699A
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -35C to +66C
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current

Warranty

• Warranty: 2-Year Limited
