Features

NEMA

• 5-20R

Color Variations

• Gray

Specifications

• Country of Origin: Mexico
• RoHS Compliant: False

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: File 152105
• NEMA: WD-1 & WD-6
• NOM: 057
• RoHS: Compliant
• UL Fed Spec WC-596: File E13399
• UL498HG: File E13399

Electrical Specifications

• Amperage: 20 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

Product Features

• Color: Brown

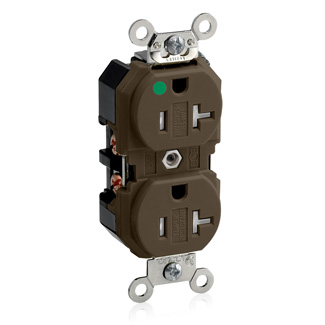

• Device Type: Duplex Receptacle Outlet
• Feature: Tamper-Resistant|Smooth Face
• Grade: Extra Heavy-Duty Hospital Grade
• Standards and Certifications: UL/CSA
• Strap Material: Nickel Plated Brass
• Warranty: 10-Year Limited

Material Specifications

• Body Material: Nylon
• Clamp Nuts: Nickel-Plated Brass
• Face Material: Nylon
• Ground Clips: Nickel-Plated Brass
• Grounding Screw: Nickel-Plated Brass 8-32
• Line Contacts: Nickel-Plated Brass Triple-Wipe .031 Thick
• Terminal Screws: Nickel-Plated Brass 10-32
• Yoke: Nickel-Plated Brass

AC Horsepower Ratings

• Horsepower Rating: 1 HP

Environmental Specifications

• Operating Temperature: -40°C to 60°C

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, White-Neutral
• Termination: Back or Side Wire
