Features

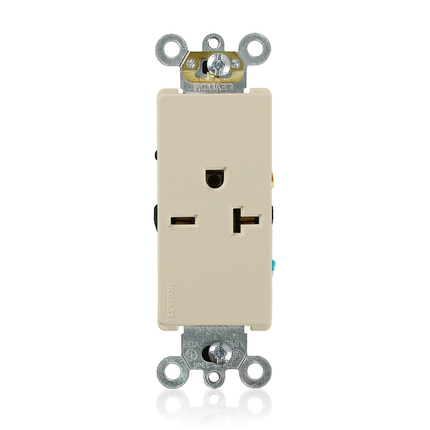

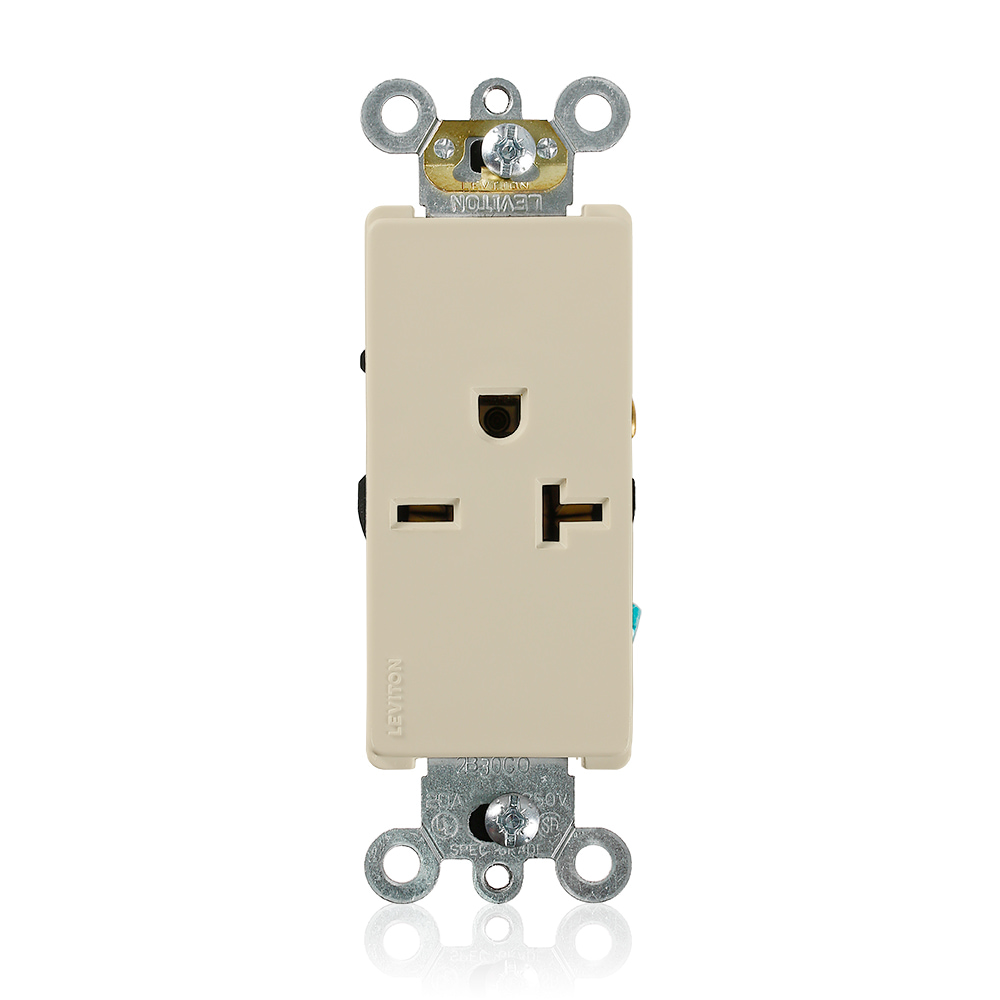

• Leviton’s line of Heavy-Duty Specification Grade receptacles are designed and manufactured to withstand the most demanding environments. Available in a wide variety of configurations, including isolated ground, tamper-resistant, etc., these Commercial Grade devices are the electrical contractor's choice for use in hotels, schools, hospitals and commercial office buildings.

NEMA

• 6-20R

Color Variations

• Light Almond

Specifications

• Country of Origin: Please Contact Customer Service
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• NEMA: WD-6
• NOM: 057
• UL498: File E13399
• Warranty: 10-Year Limited

Electrical Specifications

• Amperage: 20 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 250 VAC
• Wire: 3

AC Horsepower Ratings

• At Rated Voltage: 2 HP

Material Specifications

• Body Material: Thermoplastic Nylon
• Clamp Nuts: Zinc-Plated Steel
• Color: Ivory
• Face Material: Thermoplastic Nylon
• Ground Clips: Brass-Plated
• Grounding Screw: Brass 8-32
• Line Contacts: Brass Triple-Wipe .031 Thick
• Strap Material: Zinc-Plated Steel
• Terminal Screws: Brass 10-32

Product Features

• Brand: Decora Plus
• Device Type: Single Receptacle Outlet
• Feature 4: Smooth Face
• Grade: Commercial Specification Grade

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
