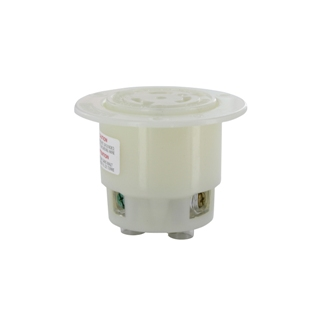

Features

• Leviton’s industry leading locking devices, such as our Black & White line of industrial grade plugs and connectors and our V-0-Max line of industrial grade flush receptacles, offer superior performance, long lasting reliability and other features that are backed by a lifetime warranty.

NEMA

• L6-20R

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NEMA: WD-6
• NOM: 057
• UL Fed Spec WC-596: File E13399
• UL498: File E13399
• Warranty: Limited Lifetime Warranty

Electrical Specifications

• Amperage: 20 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 250 VAC
• Wire: 3

Material Specifications

• Body Material: Nylon
• Color: White
• Face Material: Nylon
• Grounding Screw: Brass 8-32
• Line Contacts: Brass .035 Thick
• Strap Material: Thermoplastic Nylon
• Terminal Screws: Brass 10-32

Environmental Specifications

• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C

AC Horsepower Ratings

• Horsepower Rating: 2 HP

Mechanical Specifications

• Product ID: Ratings and NEMA I.D. permanently marked on device
• Screw Terminal Torque: 10-14 in-lbs
• Terminal Accom.: 18-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back
