Features

• One piece contacts reduce friction and overheating
• Rugged nylon construction resists impact, sunlight, chemicals, and rough use
• Ratings and NEMA I.D. permanently marked on device
• Industry exclusive limited lifetime warranty

NEMA

• L11-20P

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 42: File LR-406
• NEMA: WD-6
• NOM: 057
• UL Fed Spec WC-596: File E13393
• UL498: File E13393
• Warranty: Limited Lifetime Warranty

Electrical Specifications

• Amperage: 20 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Non-Grounding
• Phase: 3-Phase
• Pole: 3
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 250 VAC
• Wire: 3

AC Horsepower Ratings

• At Rated Voltage: 3 HP

Material Specifications

• Body Material: Nylon
• Color: White
• Face Material: Nylon
• Grounding Screw: Brass 8-32
• Line Contacts: Solid Brass
• Strap Material: Thermoplastic Nylon
• Terminal Screws: Brass 10-32

Product Features

• Brand: Black and White

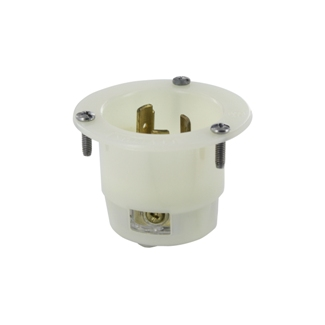

• Device Type: Locking Flanged Inlet

Environmental Specifications

• Environment: Dry
• Flammability: Rated V-2 per UL 94
• Operating Temperature: -40°C to 60°C

Mechanical Specifications

• Product ID: Ratings and NEMA I.D. permanently marked on device
• Screw Terminal Torque: 10-14 in-lbs
• Terminal Accom.: 18-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back
