Features

• Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.

NEMA

• 5-20R

Color Variations

• Brown

Specifications

• Country of Origin: Mexico
• RoHS Compliant: False

Standards and Certifications

• ANSI: C-73
• Applicable Standards: UL 498, CSA C22.2 No. 42
• Certification/Listing: UL, CSA, NOM-ANCE
• NEMA: WD-1 & WD-6

Electrical Specifications

• Amperage: 20 A
• Dielectric Voltage: Withstands 2000V per UL498
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
• Voltage: 125 VAC
• Wire: 3

AC Horsepower Ratings

• At Rated Voltage: 1/2 HP

Material Specifications

• Body Material: Polypropylene
• Face Material: Polypropylene
• Ground Clips: Brass
• Grounding Screw: Brass 8-32
• Line Contacts: Brass Double-Wipe .031 Thick
• Strap Material: Brass .050"
• Terminal Clamp: Brass
• Terminal Screws: Brass 10-32

Product Features

• Color: Ivory

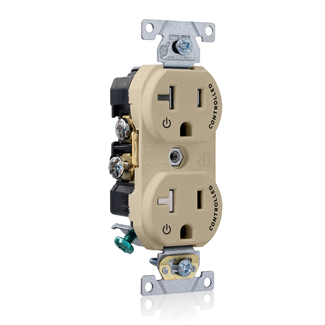

• Device Type: Duplex Receptacle Outlet
• Feature: Two Outlets Marked Controlled|Tamper-Resistant|Smooth Face
• Grade: Commercial Specification Grade

Environmental Specifications

• Operating Temperature: -40°C to 60°C

Mechanical Specifications

• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back or Side Wire
• Wire Type: Solid or Stranded Building Wire

Warranty

• Warranty: 10-Year Limited
