Features

• Leviton’s Commercial Specification Grade switches are designed to offer outstanding reliability and top performance in commercial settings. Ideal applications include municipal facilities, government buildings, malls, department stores, hospital and health care facilities, office buildings, schools, colleges, universities, houses of worship and cultural institutions. Leviton offers a large selection of 15 and 20 Amp Commercial switches, available in a wide variety of colors, wiring options and other features.

Color Variations

• Brown

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Fed Spec WS896E: File #E7458
• UL Standard: UL 20
• Warranty: 10-Year Limited

Material Specifications

• Actuator Material: Thermoplastic
• Base Material: PBT
• Body Material: Thermoplastic
• Color: White
• Contacts: Silver-Cadmium .031 Thick
• Cover Material: Nylon
• Strap Material: Steel
• Terminal Screws: Steel 8-32
• Toggle: Polycarbonate

Product Features

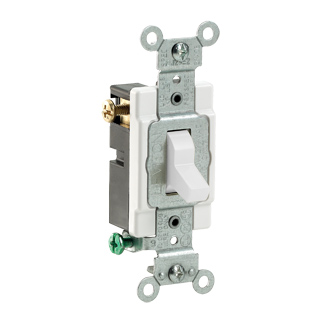

• Device Type: Toggle Switch
• Function: 3-Way
• Grade: Commercial Specification Grade
• Warranty: 10-Year Limited

Electrical Specifications

• Amperage: 20 A
• Dielectric Voltage: Withstands 1500V for 1 minute
• Max. Amperage: 16 Amp
• Temperature Rise: Maximum 30 degrees C rise
• Voltage: 120/277 VAC

Environmental Specifications

• Flammability: Rated V-2 per UL94
• Operating Temperature: -40°C to 65°C

AC Horsepower Ratings

• HP Rating: 1HP-120V 2HP-240V-277V

Mechanical Specifications

• Product ID: Stamped on Strap
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-12 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Side Wire
