Features

• A raised dome cover provides additional wiring room. Furnished with cover and gasket. Volume is 100 cu. in.

Specifications

• Country of Origin: Mexico
• Buy American Compliant: Contact Manufacturer
• Dimensions: 10.31 in x 8.38 in x 4.13 in
• Width: 8.380 in
• Each - Width: 8.380 in
• Hazardous Rating(s): Suitable for use in hazardous location applications when installed according to NEC Articles 501.10(b) (Class I, Division 2) or 502.10, 503.10, and 505.15 (Class I Zone 2).
• Application: Mogul fittings are normally used where the standard "O" Series conduit bodies do not offer a sufficient amount of wiring room. For right angle bends where splices, pulls, and taps are needed in a weather-proof chamber.
• Color: Gray
• Finish: Powder Epoxy Paint
• Height: 4.13 in
• Hub Size: 2"
• Length: 10.31 in
• Special Features: A raised dome cover provides additional wiring room. Furnished with cover and gasket. Volume is 100 cu. in.

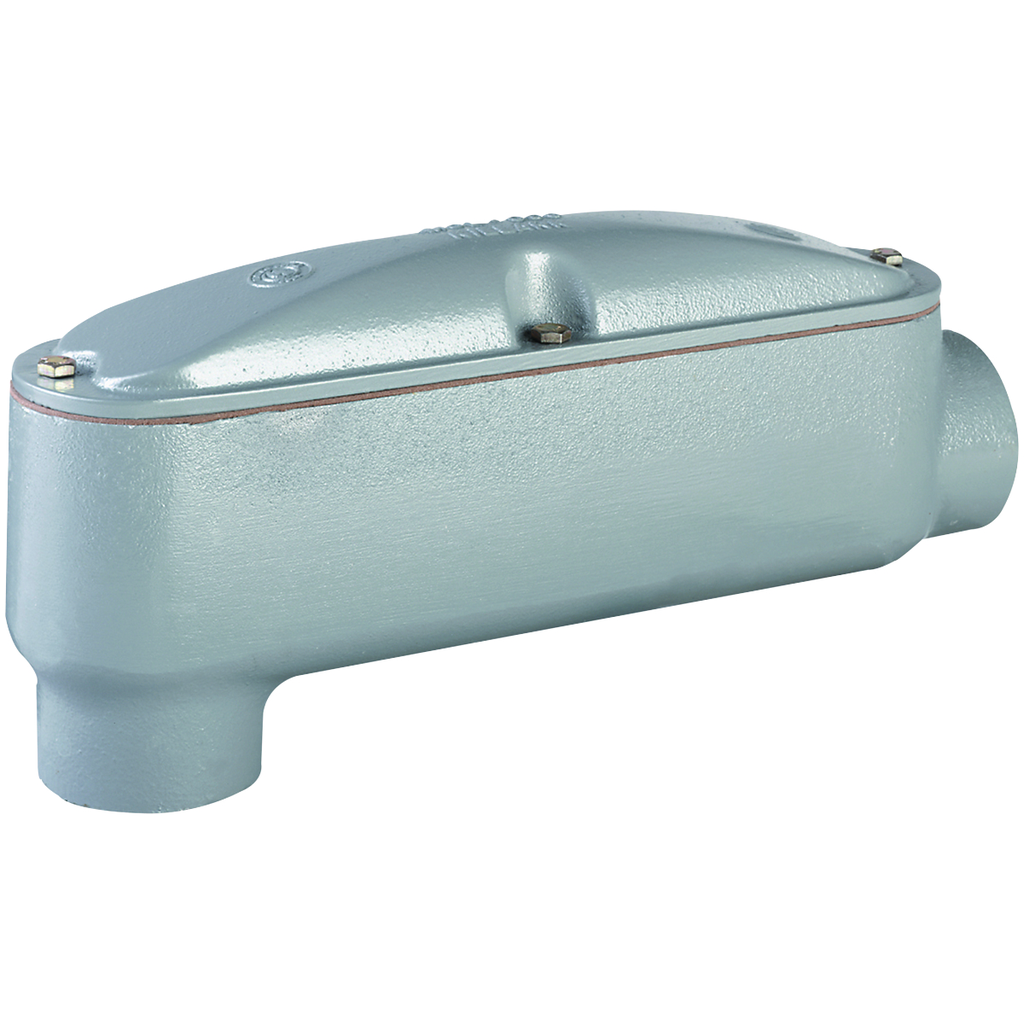

• Type: Mogul Conduit Body With Cover & Gasket
• Finish Type: Powder Epoxy Paint
• ARRA Compliant: Contact Manufacturer
• Class Code: D30
• Description - Invoice: MOL SERIES 2" (CB)
• Freight Class Code: 06316009
• Harmonization Code: 7609000000
• Image Actual Or Representative: R
• Lead Time: 42 wk
• MSDS Flag: No
• Order Multiple: 1 EA
• Returnable Indicator: Yes
• Sub Class Code: D30D230
• Gross Weight with Packaging: 4.28
• Hub Pattern: LB
• Material: Aluminum, Copper Free (less than 4/10 of 1%)
• Series: Moguls
• Base Unit of Measure: EA
• BOX SIZE: 6.500x16.250x7.250 (in)
• Carton - Gross Weight per Pack: 8.560 lb.
• Carton - Number of Sub Packs: 2
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 00783936410111
• Carton - Total Units: 2 EA
• Master Pack Description: Each

Certifications

• EU RoHS Indicator: Contact Manufacturer
