2 INCH X 3 INCH BASE SPACER – Snap-Loc Spacer for Electrical Conduit

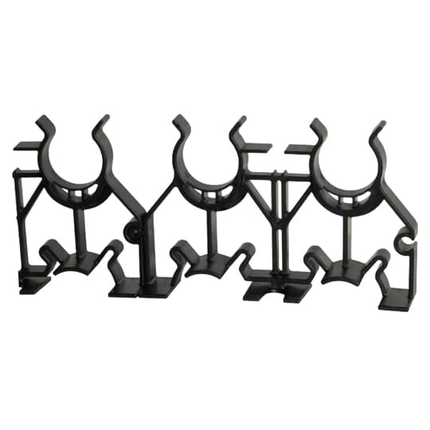

The 2 INCH X 3 INCH BASE SPACER by Carlon is a non-metallic Snap-Loc spacer designed to provide consistent separation and stability for conduit in electrical installations. It is ideal for use by electrical distributors, lighting solutions providers, and switchgear suppliers to maintain proper spacing of conduit runs in concrete encasements and other applications requiring durable wire and cable management. The Snap-Loc design features a side dovetail rail-and-groove system that enables side-by-side interchangeability of conduit spacers while maintaining horizontal stability.

Specifications

• Manufacturer: Carlon
• Manufacturer Part #: S288JLN
• Material: Non-Metallic
• Size: 2 x 3 inches
• Product Weight: 22.0 lbs
• Package Quantity: 100 pieces per carton
• Country of Origin: United States (US)
• UPC: 034481004288
• Dimensions (Base Spacer): A = 4.25 in, C = 5.62 in, Diameter = 2.50 in

Features

• Side dovetail rail-and-groove design for horizontal stability and side-by-side spacer interchangeability
• Specifically designed for use with nonmetallic duct, compliant with NEMA TC-2, TC-6, TC-8, TC-10, and ASTM F512 standards
• Eliminates need for costly top spacers with integrated locking key ways for secure conduit fastening
• Facilitates easy job site assembly with tapered joining slots and maximum tolerance design
