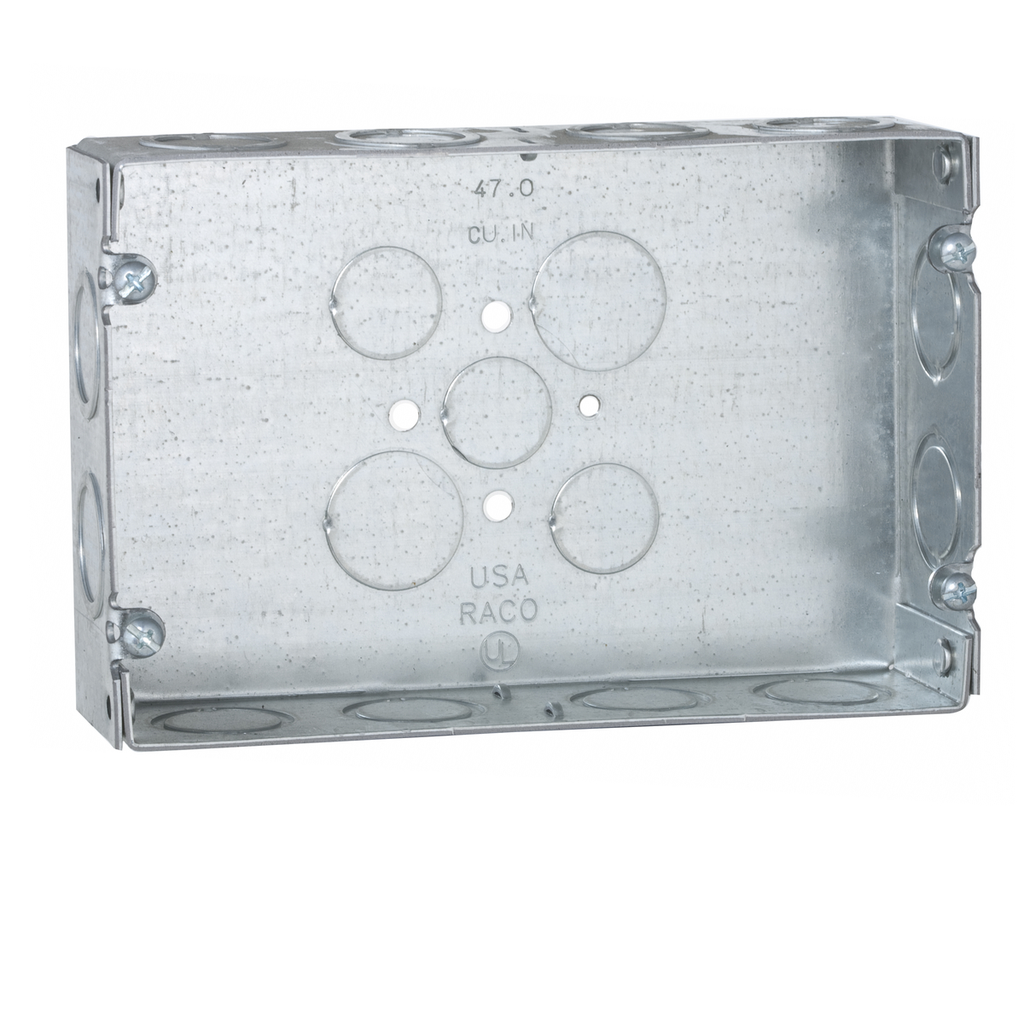

Features

• Gang boxes save time in installation, no need to gang boxes together.
• Have 1/2" and 3/4" concentric KO's for use with a wide variety of wiring methods.
• Bottom KO pattern, 3-1/2" and 2-3/4" at either end of box.
• Accepts two styles of covers, flat and 3/4" raised device cover.
• Use low voltage partitions #947 or #949.

Specifications

• Country of Origin: China
• Buy American Compliant: Contact Manufacturer
• ChannelSightWidgetId: 705
• Width: 6.813 in
• Each - Width: 6.813 in
• Height: 4.5 in
• Product Type: Steel Boxes and Covers
• Cubic Capacity: 47.0 cu.in
• Depth: 1.625 in
• Knockouts: 1/2 in;3/4 in;1/2-3/4 in Concentric
• Standard: UL Listed
• Type: Box
• Bracket Type: No Bracket
• Weight: 1.29 lb.
• ARRA Compliant: Contact Manufacturer
• Class Code: D01
• Description - Invoice: GNGBX 2G 1-5/8DP 1/2&3/4CONC KO
• Freight Class Code: 06202000
• Harmonization Code: 7326908688
• Image Actual Or Representative: A
• MSDS Flag: Yes
• Order Multiple: 5 EA
• Returnable Indicator: Yes
• Stock Indicator: S - Shelf Stock
• Sub Class Code: D018D0180
• Wiring System: Conduit
• Material: Steel
• Number of Gang(s): 2-Gang
• Base Unit of Measure: EA
• BOX SIZE: 8.25x8.25x6 (in)
• Carton - Gross Weight per Pack: 6.45 lb.
• Carton - Number of Sub Packs: 5
• Carton - Pack Description: Carton
• Carton - SCC-14 Next Lower Level Sub Pack: 50169009512
• Carton - Total Units: 5 EA
• Each - Pack Description: Each
• Lowest Level UOM: Each
• Pallet - GTIN - Package: 70050169009511
• Pallet - Number of Sub Packs: 150
• Pallet - Pack Description: Pallet
• Pallet - SCC-14 Next Lower Level Sub Pack: 50050169009517
• Pallet - Total Units: 750 EA
• Pallet Height: 41.500 in
• Pallet Length: 43.300 in
• Pallet Weight: 968.000 lb.
• Pallet Width: 43.300 in

Certifications

• Certified Listed: UL Listed
• EU RoHS Indicator: Contact Manufacturer
