Features

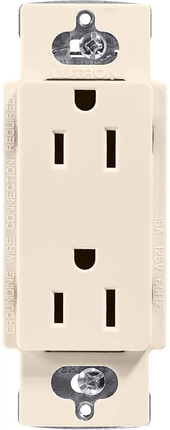

• Includes (1) duplex standard receptacle; Gloss finish
• 15 Amp capacity
• 125V only (US style wall box)
• Features screw terminal and push in connections for easy installation
• No visible mounting hardware
• Coordinates with Claro decorator-style dimmers and switches (sold separately)
• Flawlessly blends with trim, wall coverings and furnishings
• Pairs perfectly with Lutron Claro wall plates for consistent color matching (sold separately)
• Wallplate sold separately

Standards and Certifications

• UL

Specifications

• Amperage Rating: 15.000000000000000 A
• Connection: Screw terminal
• Environmental Conditions: 0 to 90% humidity, non-condensing
• Mounting: Wallbox
• NEMA Rating: 5-15R
• Number of Poles: 2
• Number of Wires: 3,4,5
• Type: Receptacle
• Voltage Rating: 125
• Wattage: 1875.000000000000000 W
• Wire Size: 10 to 14
• Insulation: Plastic
• Material: Plastic/Metal
• Temperature Rating: 32 to 104 F
• Color: Light Almond
• Size: 4.69 x 2.94 in
