Features

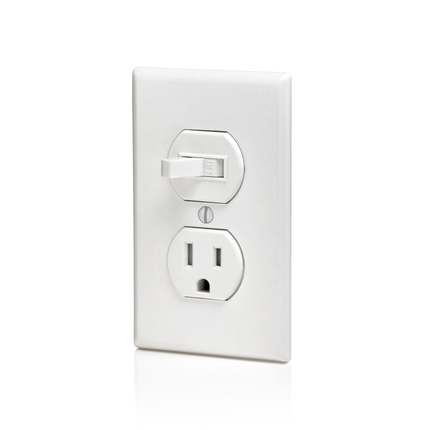

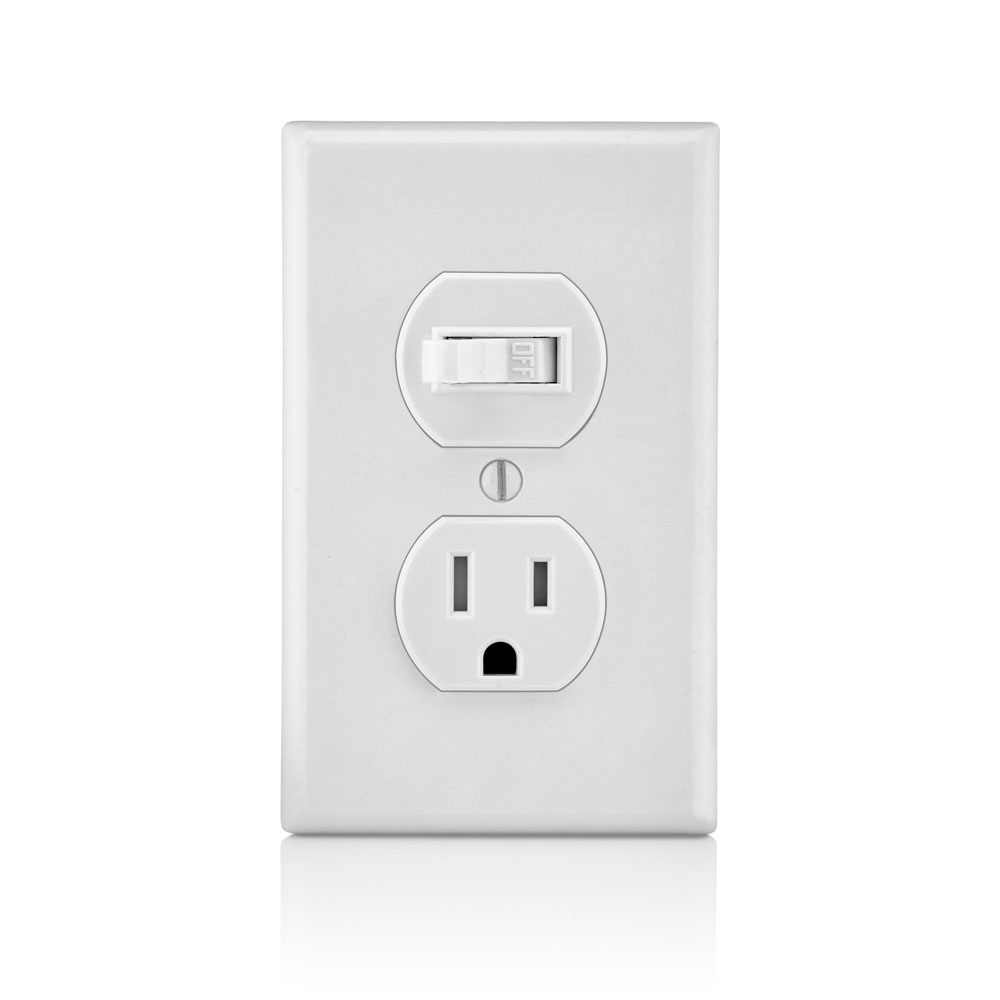

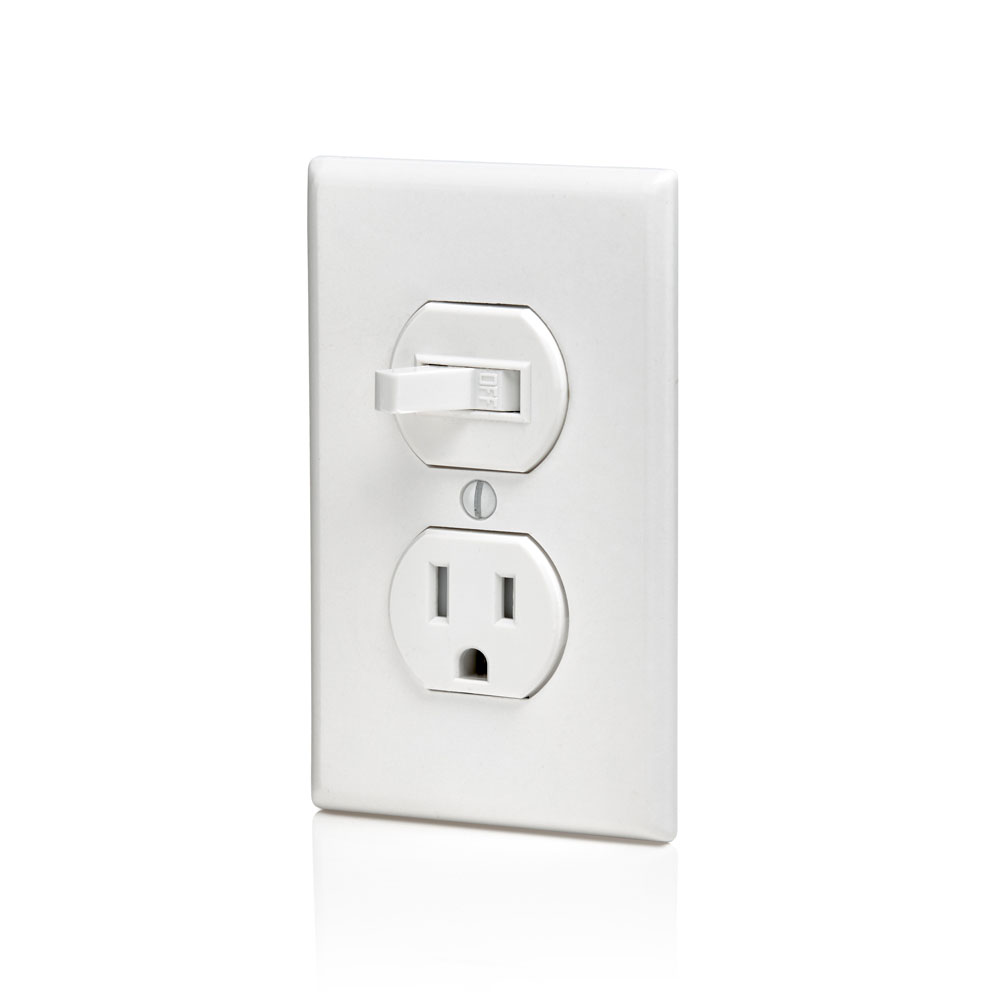

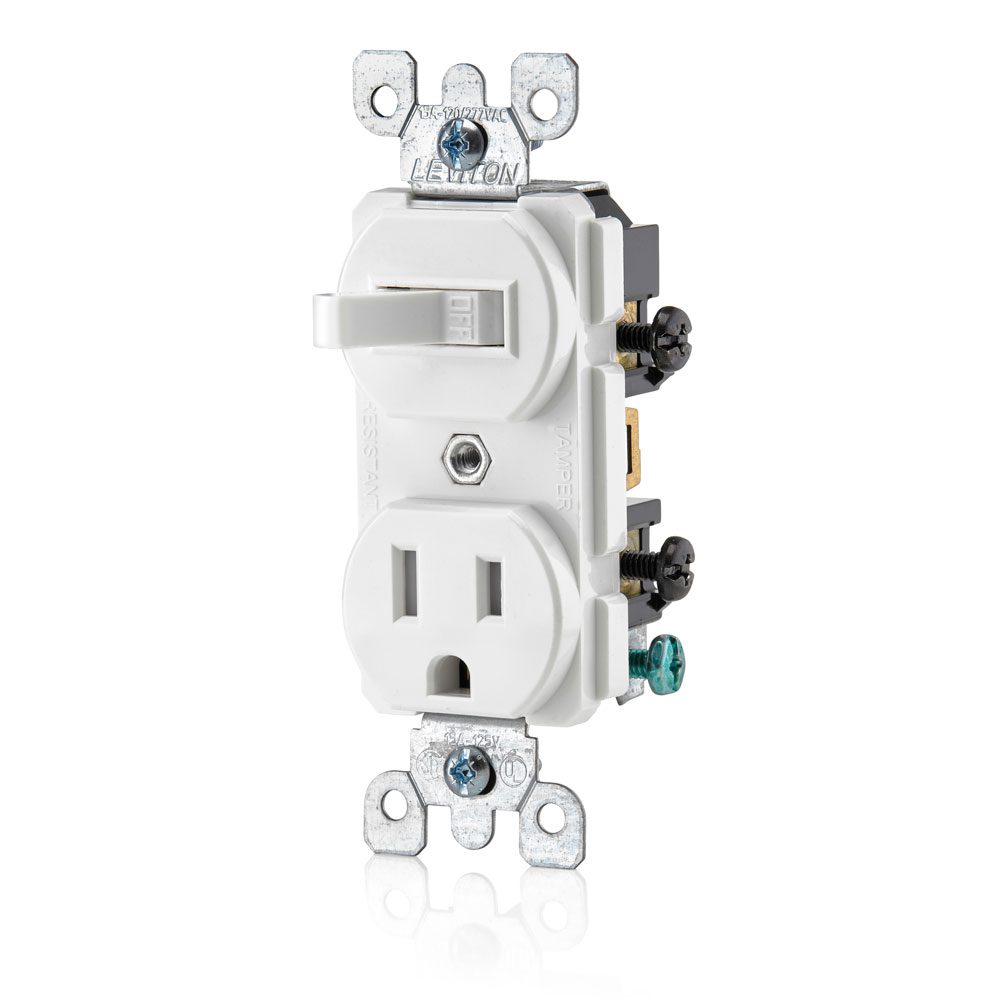

• Leviton's standard combination switch/receptacle is the perfect choice for any area in a home. Its simple, functional design provides the use of a switch and a tamper-resistant receptacle in a one-gang space. Its impact-resistant exterior ensures damage protection and a long service life. These devices come in a range of colors and are backed by a limited two-year warranty.

NEMA

• 5-15R

Color Variations

• Brown

Specifications

• Country of Origin: Mexico
• RoHS Compliant: False

Standards and Certifications

• ANSI: C-73
• CSA C22.2 No. 111: File #152105
• NEMA: WD-1 & WD-6
• NOM: 057
• UL Standard: UL 20
• Warranty: 2-Year Limited

Material Specifications

• Actuator Material: Thermoplastic
• Body Material: Thermoplastic
• Color: White
• Strap Material: Steel

Product Features

• Amperage: 15 A
• Product Type: Switch/Outlet Combo
• Type: Duplex Style Combination Switch

Electrical Specifications

• Dielectric Voltage: Withstands 1500V for 1 minute
• Grounding: Grounding
• Overload UL20 Test: 100 cycles of OL at 4.8 times rated current
• Receptacle Amperage: 15 Amp
• Receptacle Voltage: 125V AC
• Switch Amperage: 15 Amp
• Switch Voltage: 120V AC
• Temperature Rise: Maximum 30 degrees C rise

AC Horsepower Ratings

• HP Rating: 1/2HP-120V
• Max. Amperage: 12 Amp

Environmental Specifications

• Operating Temperature: -40°C to 65°C

Mechanical Specifications

• Product ID: Stamped on Strap
• Terminal Accom.: 14-12 AWG
• Terminal ID: Brass-Hot Black-Hot White-Neutral Green-Gnd
• Termination: Side
• Torque Range: 14 – 18 in.-lbs

Downloads

Product Bulletin

Instruction Sheet

Other Documents

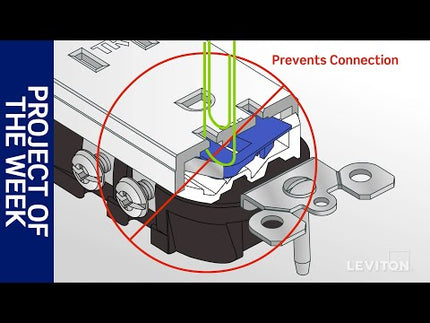

Videos
