Features

• NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.

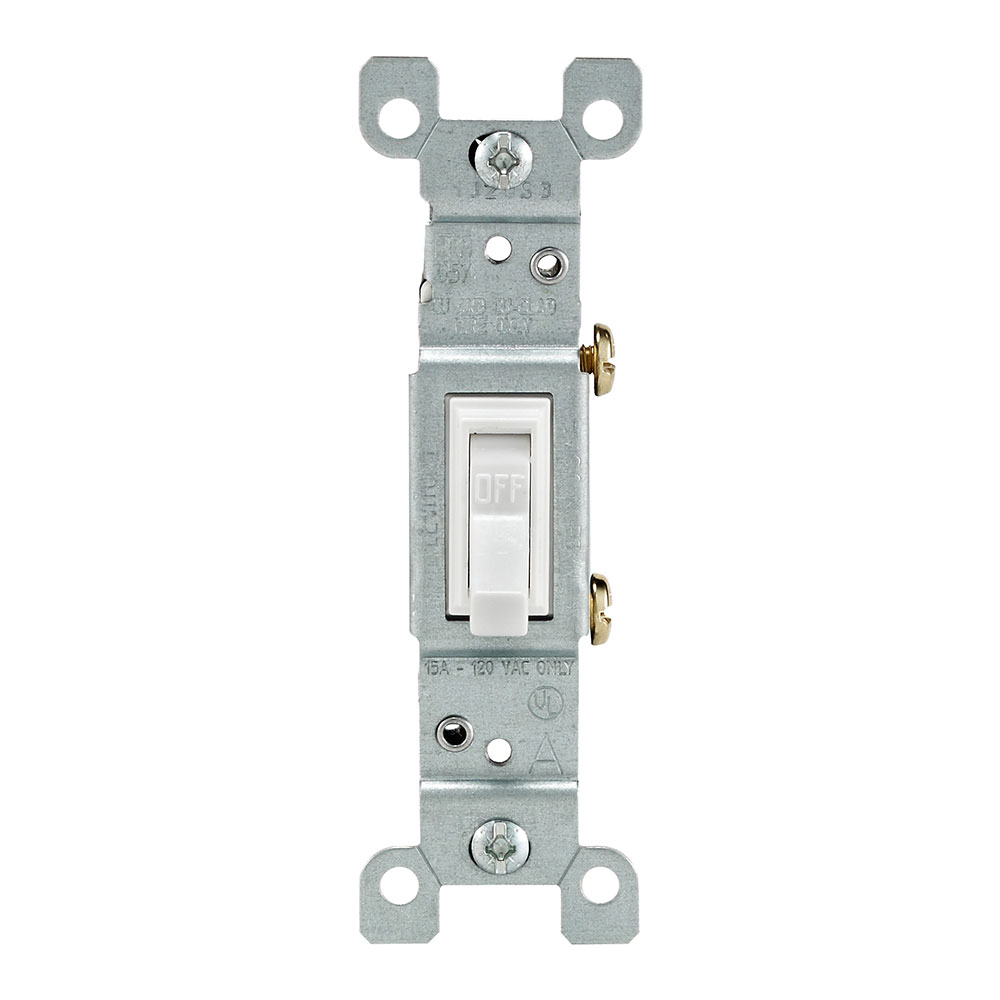

• Tried-and-true toggle designs, Leviton Residential Grade AC Quiet Switches cover all the bases; they install easily and are available in standard and illuminated versions. Their toggles and frames are constructed of impact-resistant thermoplastic, and they feature large head, hardened triple-drive screws for easy installation. Leviton’s traditional switches are compatible with a wide range of Leviton plastic and metal wallplates.

Color Variations

• Brown

Specifications

• Country of Origin: United States
• RoHS Compliant: False

Product Features

• Actuator Material: Thermoplastic
• Amperage: 15 A
• Body Material: Thermoplastic
• Color: White
• Feature: Framed
• Grounding: Non-Grounding
• HP Rating: 1/2HP-120V
• Max. Amperage: 12 Amp
• Pole: 1
• Standards and Certifications: UL/CSA
• Strap Material: Steel
• Termination: Quickwire Push-In & Side
• Torque Range: 14 – 18 in.-lbs
• Type: Toggle Switch
• Voltage: 120 VAC
• Warranty: 2-Year Limited

Downloads

Instruction Sheet

Other Documents

Videos
