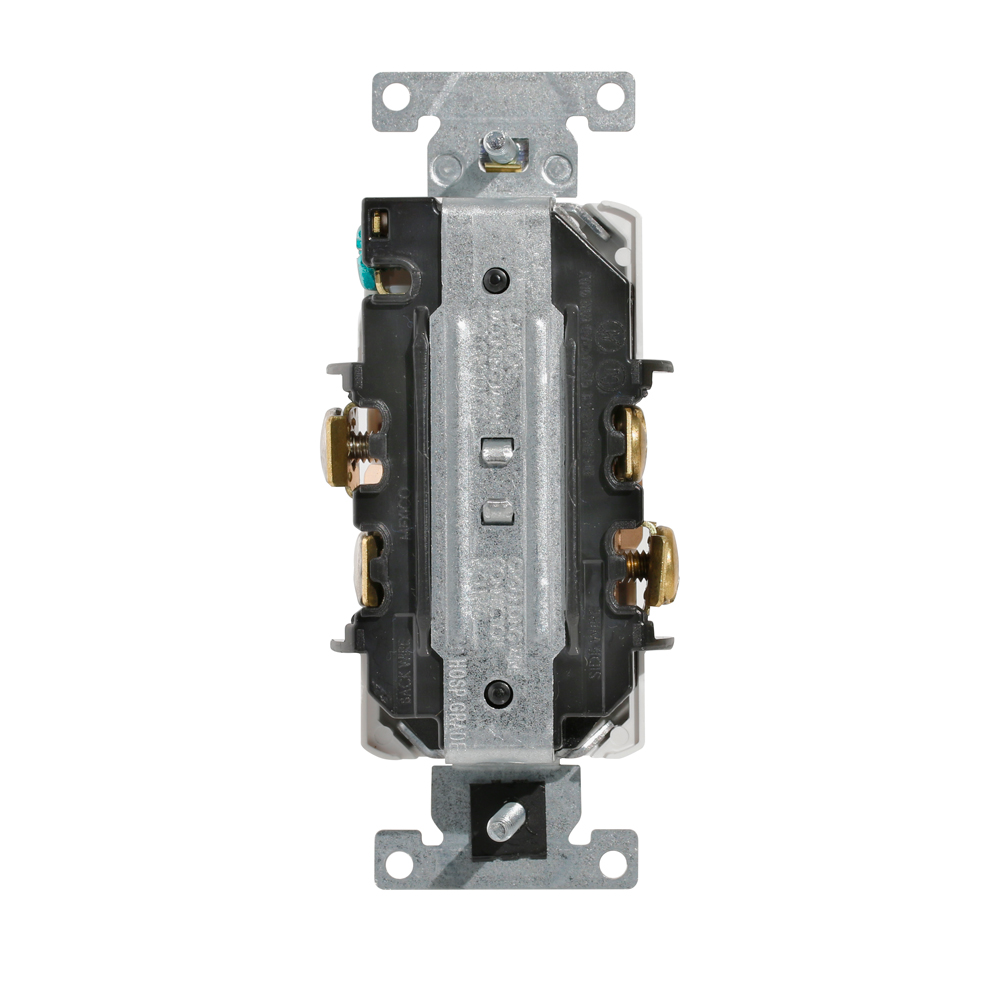

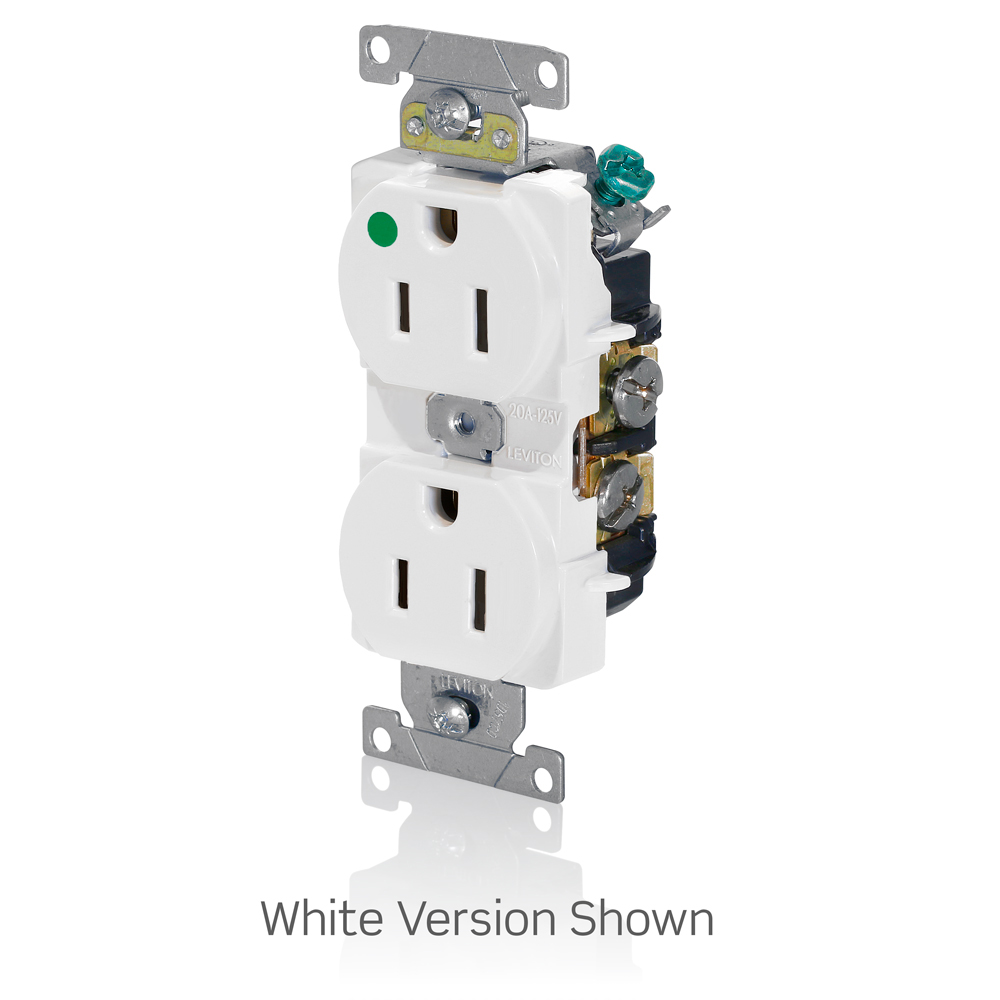

15 Amp Duplex Receptacle/Outlet, Hospital Grade, Self-Grounding

Leviton
SKU #25370Part #8200-HUPC 078477818848

15 Amp Duplex Receptacle/Outlet, Hospital Grade, Self-Grounding

Leviton
SKU #25370Part #8200-HUPC 078477818848

Product form

Out of stock, Call 1-866-853-4768 for availability and price. Most out of stock items can be ordered and are usually available to ship in 1-3 business days.

Product Substitutes

Description

Features

Patents

CA2483480
MX257790
MX321216
US6743029
US8684771

NEMA

5-15R

Color Variations

Gray

Specifications

Country of Origin: Mexico
RoHS Compliant: False

Standards and Certifications

ANSI: C-73
CSA C22.2 No. 42: File 152105
NEMA: WD-1 & WD-6
NOM: 057
RoHS: Compliant
UL Fed Spec WC-596: File E13399
UL498HG: File E13399
Warranty: 10-Year Limited

Electrical Specifications

Amperage: 15 A
Dielectric Voltage: Withstands 3000V min
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125 VAC
Wire: 3

Material Specifications

Body Material: PBT Polyester Blend
Face Material: PBT Polyester Blend
Ground Clips: Brass
Grounding Screw: #8 Hex Head, Triple-Drive Brass
Line Contacts: 0.030" Phosphor Bronze
Strap Material: Steel (Galvanized G60)
Terminal Screws: #8 Triple-Drive Brass

Product Features

Color: Brown
Device Type: Duplex Receptacle Outlet
Grade: Heavy-Duty Hospital Grade

Environmental Specifications

Flammability: Rated V-0 per UL 94
Operating Temperature: -40°C to 75°C

AC Horsepower Ratings

Horsepower Rating: 1/2 HP

Mechanical Specifications

Product ID: Ratings are permanently marked on device
Screw Terminal Torque: 14-18 in-lbs
Terminal Accom.: #14-#10 AWG
Terminal ID: Brass-Hot, Silver-Neutral, Green-Ground
Termination: Back and Side Wire

Downloads

More Information

Manufacturer Catalog Number

8200-H

Weight

11.0000

Country of Origin

Mexico

Color

Brown

Amperage

15 amperes

Body Material

PBT

Device Type

Duplex Receptacle Outlet

Dielectric

3000 volts

Enclosure

WD-6

Face Material

PBT

Flammability Class

Rated V-0 Per UL 94

Grade

Heavy-Duty Hospital

Grounding

Self-Grounding

Horsepower

1/2 horse power

Nema

WD-1

Number Of Poles

2

Number Of Wires

3

Operating Temperature

-40 degrees celsius

Temperature Rise

200 percent

Warranty Length

10 years
