Features

• Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire

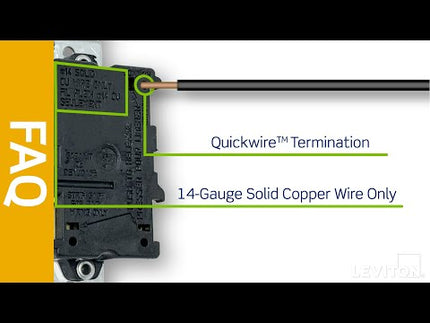

• Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
• Shallow depth for maximum wiring room
• Double-wipe power contacts for reliable conductivity and plug retention
• Heavy-gauge zinc-plated steel mounting strap
• Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs

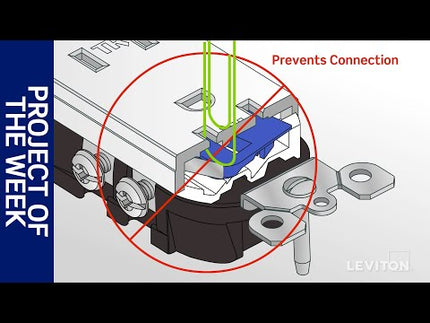

• Shutter mechanism inside the receptacle blocks access to the contacts unless a two-prong plug is inserted, helping ensure hairpins, keys, etc., will be locked out
• TR symbol on strap assures they meet the latest NEC requirements
• Ultrasonic welding, heavy-duty construction offers long, trouble-free service life
• Limited 2-year warranty
• SAFE – Tamper-resistant offers protection from electrical shocks
• DURABLE - Impact-resistant thermoplastic nylon construction
• EASY - Quickwire push-in and side wiring for easy installation
• CONVENIENT - TR symbol on strap assures they meet the latest NEC requirements

NEMA

• 5-15R

Color Variations

• Black

Specifications

• Country of Origin: United States
• RoHS Compliant: False

Product Features

• Amperage: 15 A
• Blade Type: Straight Blade
• Color: Brown
• Company/brand: Decora
• Feature: Tamper-Resistant
• Grounding: Grounding
• NEMA: 5-15R
• Pole: 2
• Terminal Accom.: Side wiring accepts #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire, Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
• Termination: Quickwire Push-In & Side
• Torque Range: 14 – 18 in.-lbs
• Type: Duplex Receptacle
• Voltage: 125 VAC
• Warranty: 2-Year Limited
• Wire: 3

Standards & Certifications

• CSA C22.2 No. 42: File 152105; Class 6233-01
• NOM: NOM Certified
• UL 498: File E13399
