Features

• Leviton offers custom imprinting solutions to meet the 2014 National Electrical Code requirements for identifying receptacles that will be automatically de-energized as part of an overall plug load control program. All 15A & 20A, 125V receptacles that are automatically controlled will be marked with a specific symbol.

Patents

• CA2483480
• MX257790
• MX321216
• US6743029
• US8684771

Specifications

• Country of Origin: Mexico
• RoHS Compliant: True

Product Features

• Certification/Listing: cULus, NON-ANCE

Standards and Certifications

• ANSI: C-73
• Applicable Standards: UL 498, Fed Spec W-C-596, CSA C22.2 No.42
• At Rated Voltage: 1/2 HP
• Certification/Listing: cULus, NON-ANCE
• RoHS: RoHS Compliant
• Warranty: 10-Year Limited

AC Horsepower Ratings

• Amperage: 15 A
• At Rated Voltage: 1/2 HP
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 3000V min
• Grounding: Self-Grounding
• Pole: 2
• Temperature Rise: Max 30°C temperature rise at full rated current
• Voltage: 125 VAC
• Wire: 3

Electrical Specifications

• Amperage: 15 A
• Current Limiting: Full Rated Current
• Dielectric Voltage: Withstands 3000V min
• Flammability: Rated V-2 per UL 94
• Grounding: Self-Grounding
• Operating Temperature: -40°C to 75°C
• Pole: 2
• Temperature Rise: Max 30°C temperature rise at full rated current
• Voltage: 125 VAC
• Wire: 3

Environmental Specifications

• Body Material: PBT Polyester Blend
• Face Material: PBT Polyester Blend
• Flammability: Rated V-2 per UL 94
• Ground Clips: Brass-Plated
• Grounding Screw: #8 Hex Head, Triple-Drive Brass
• Line Contacts: 0.030" Phosphor Bronze
• Operating Temperature: -40°C to 75°C
• Strap Material: Steel (Galvanized G60)
• Terminal Screws: #8 Triple-Drive Brass

Material Specifications

• Body Material: PBT Polyester Blend
• Face Material: PBT Polyester Blend
• Ground Clips: Brass-Plated
• Grounding Screw: #8 Hex Head, Triple-Drive Brass
• Line Contacts: 0.030" Phosphor Bronze
• Product ID: Ratings are permanently marked on device
• Strap Material: Steel (Galvanized G60)
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Terminal Screws: #8 Triple-Drive Brass
• Termination: Back and Side Wire

Mechanical Specifications

• Brand: Decora Plus
• Device Type: Duplex Receptacle Outlet

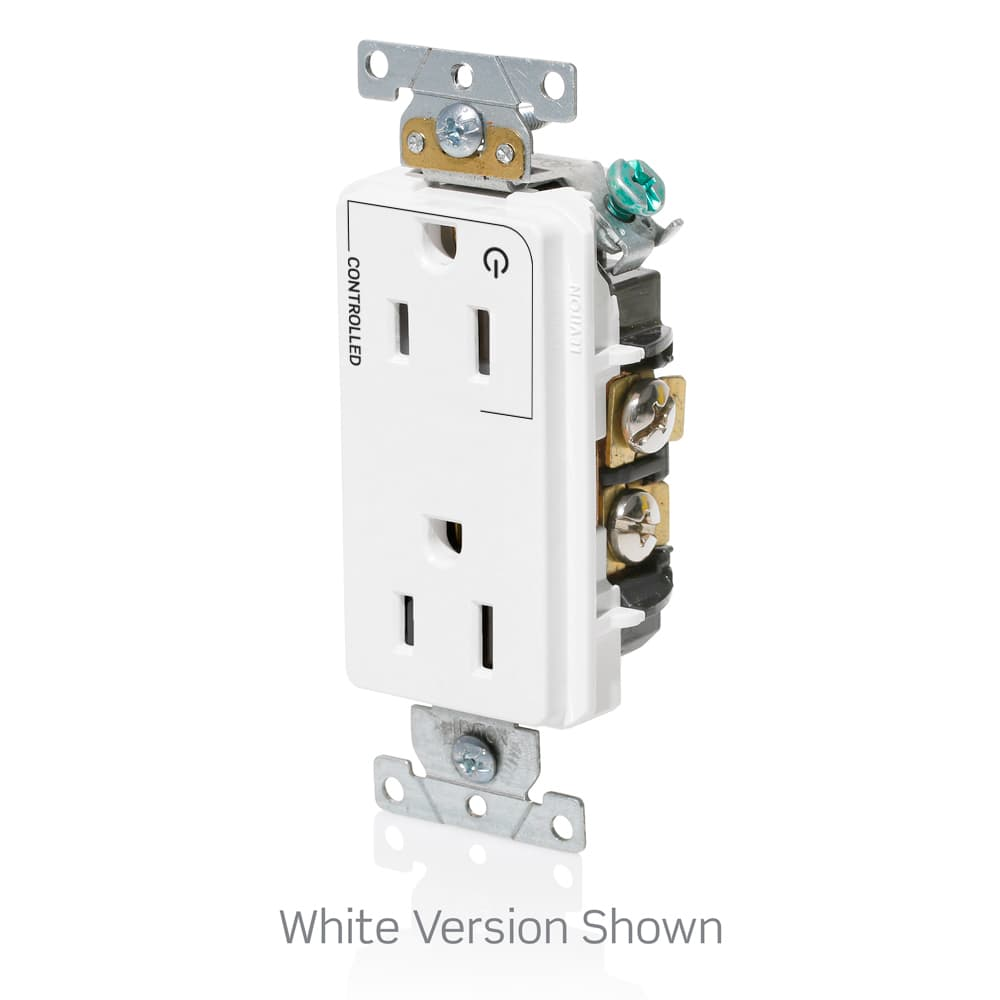

• Feature: Split-circuit, One Outlet Marked Controlled
• Feature 4: Smooth Face
• Grade: Heavy-Duty Industrial Specification Grade
• Product ID: Ratings are permanently marked on device
• Screw Terminal Torque: 14-18 in-lbs
• Terminal Accom.: 14-10 AWG
• Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
• Termination: Back and Side Wire

Warranty

• Warranty: 10-Year Limited
