Features

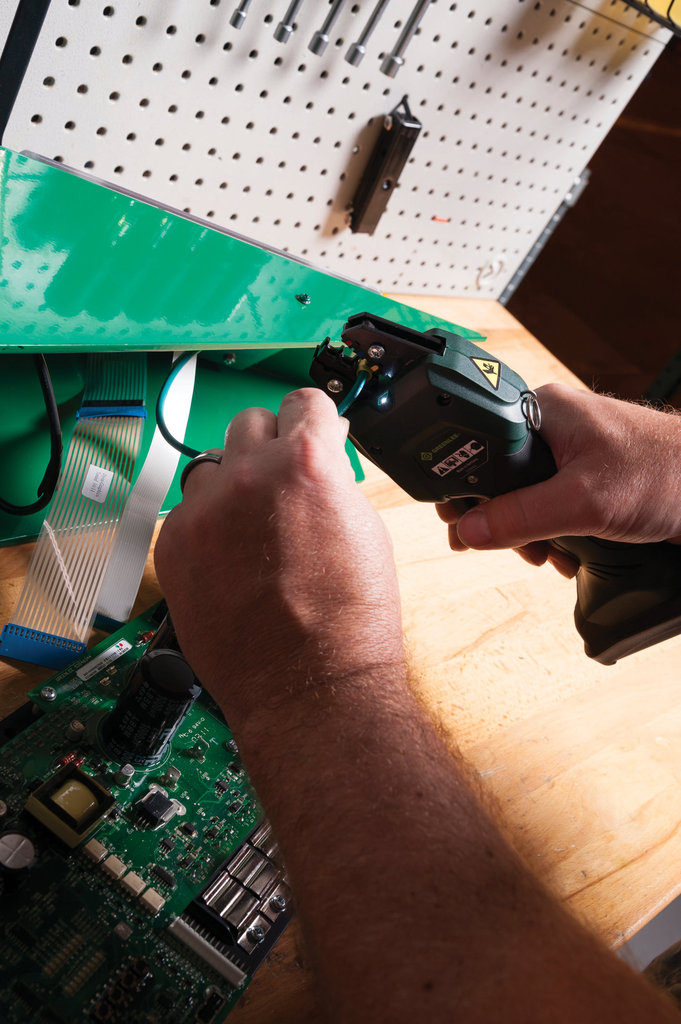

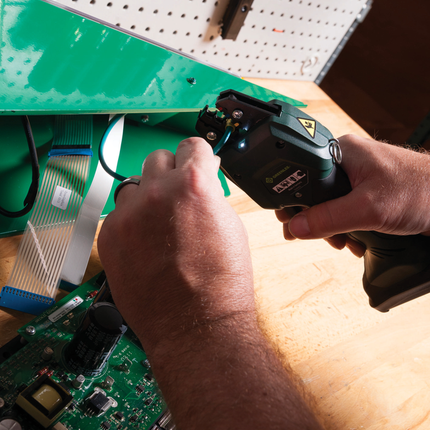

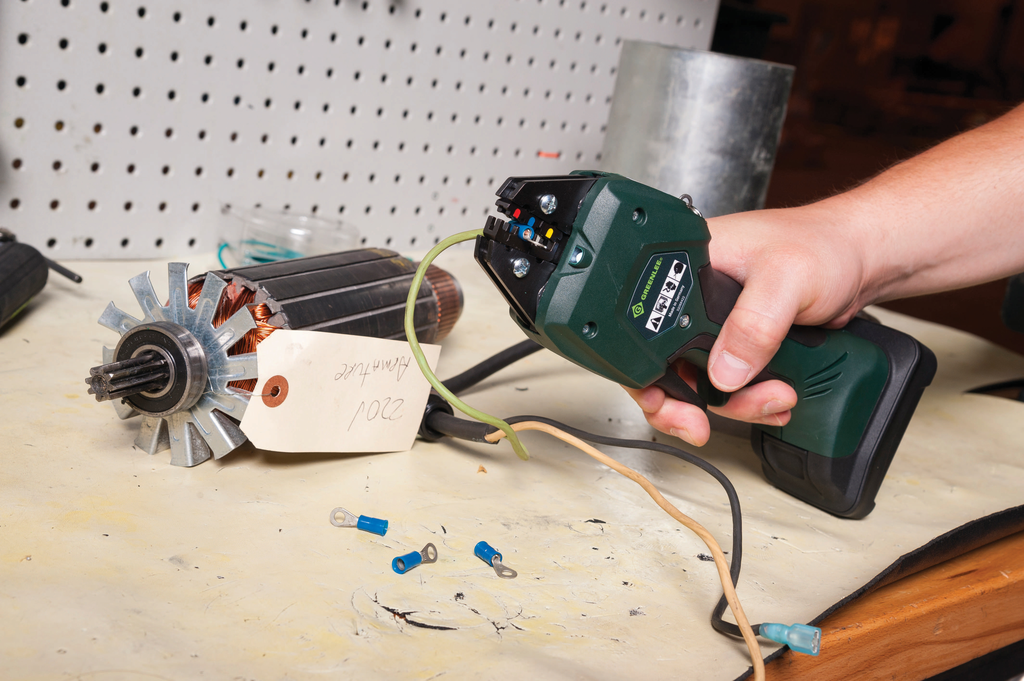

• The First Electromechanical Crimping Tool with PowerSense Technology which allows you to hold your work during preparation before starting the crimp
• Intelligent Crimping System Technology monitors amp draw for each crimp and provides a visual alert if a crimp does not complete a full cycle
• 90% Hand force reduction
• 65% faster crimping cycle versus ratcheting tool
• 10.8V Li-Ion Battery can perform up to 250 crimps on one battery charge
• LED Battery level indicator allows the user to monitor battery charge so they always know when the battery needs to be recharged

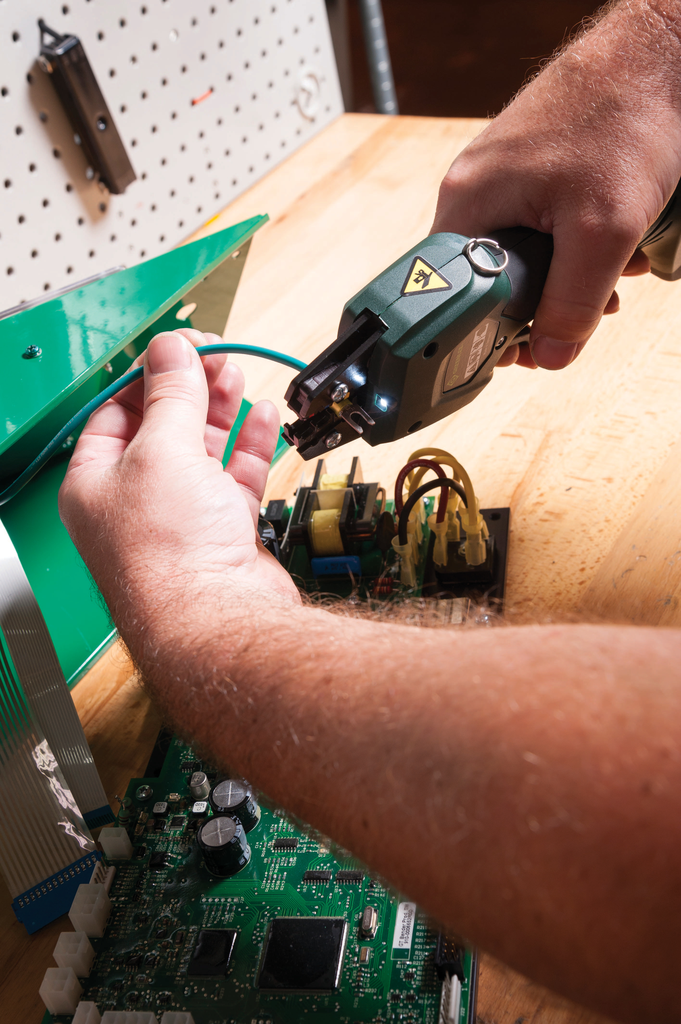

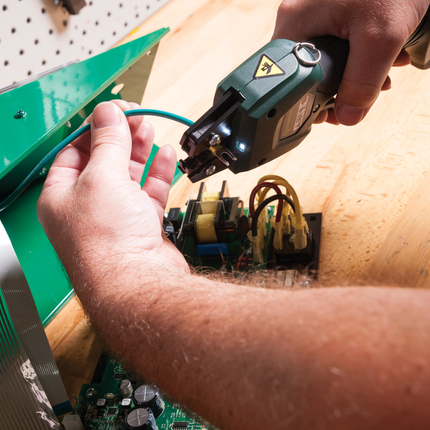

• LED work light allows the user to illuminate their work in dark areas

Application

• Battery Powered

Specifications

• Country of Origin: Germany
• Height: 9 IN
• Weight: 1.7 LB
• Handle Type: Rubber Overmold
• Battery: 10.8V 1.5Ah Li-Ion
• Battery Charger: MBC110, MBC220, 110V or 220V CHARGER AVAILABLE
• Battery Charge Time: 40 Minutes
• Crimp Cycle Time: 1.3 Sec
• Crimping Force: 3,400 LB (15kN)
• Estimated Cycles per Charge: 250
• Material Master Number: EK50ML120B
• Overall Length: 9''

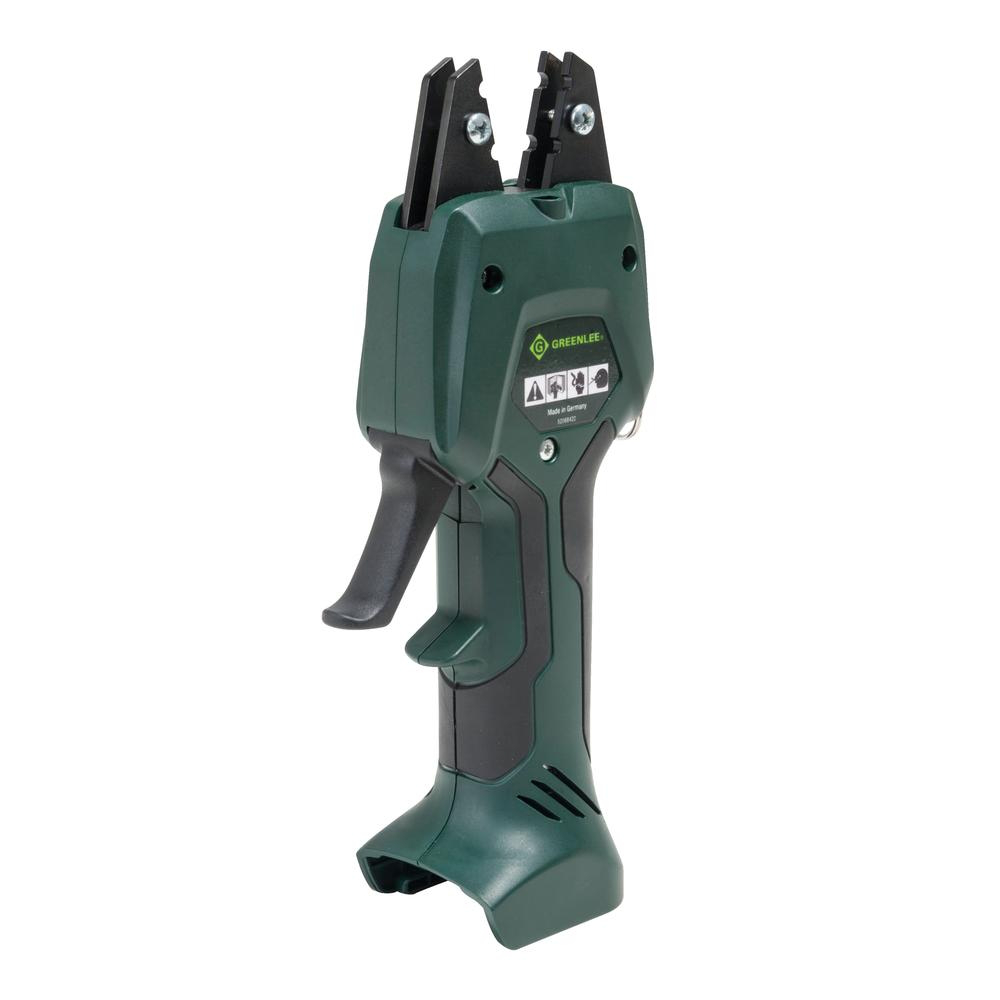

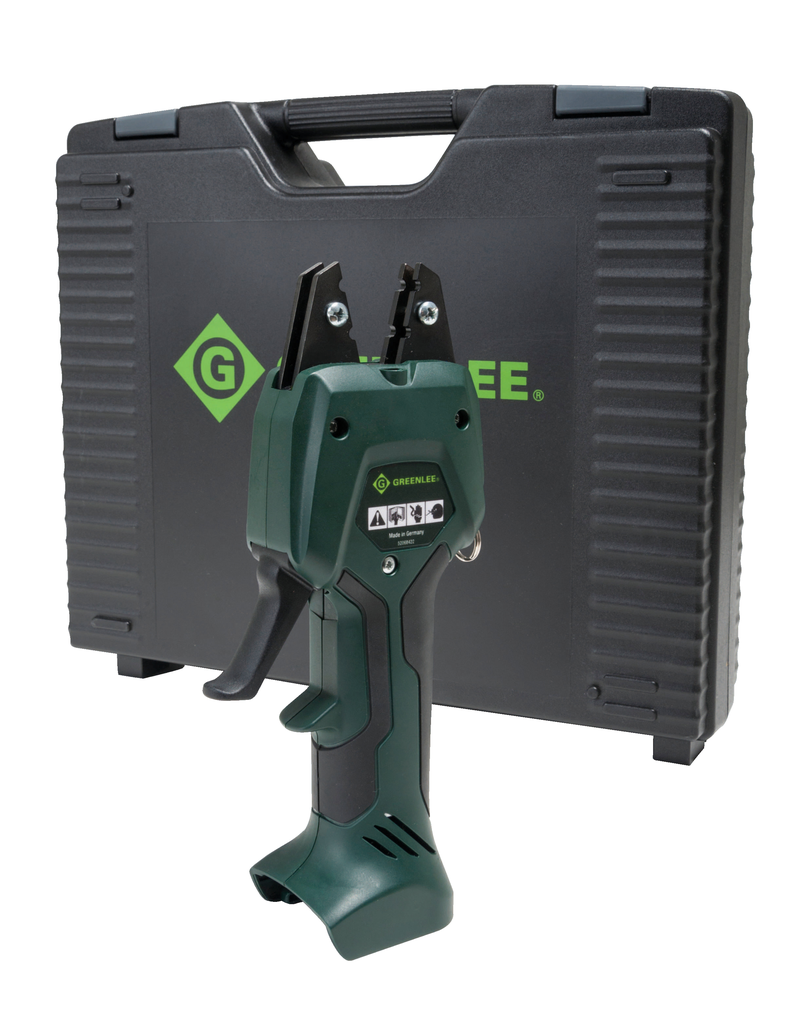

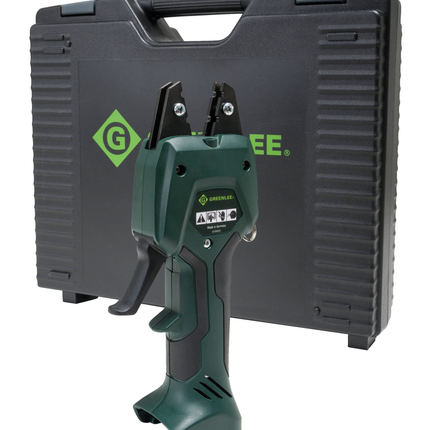

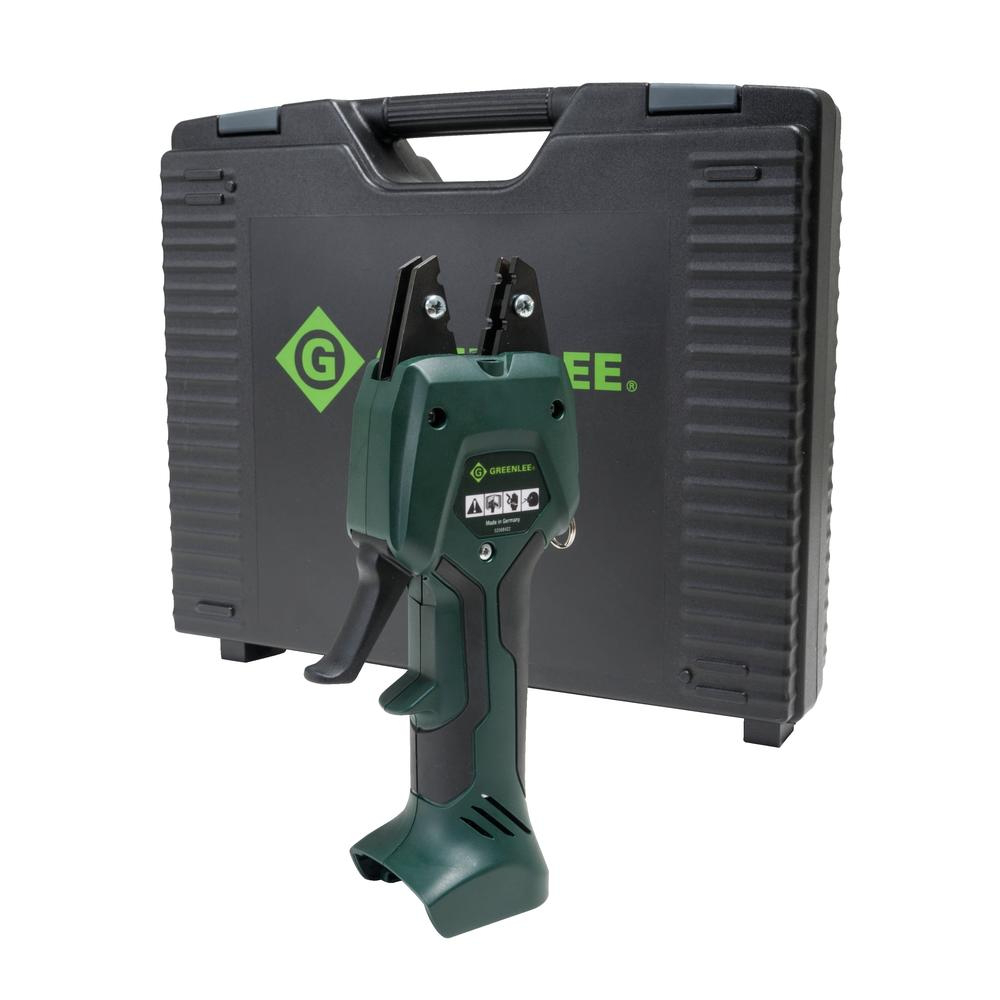

• Short Description: BARE CRIMPING TOOL, EK50ML120B
• Type: Battery Powered

Battery Information

• Advertised Voltage: 110/220
