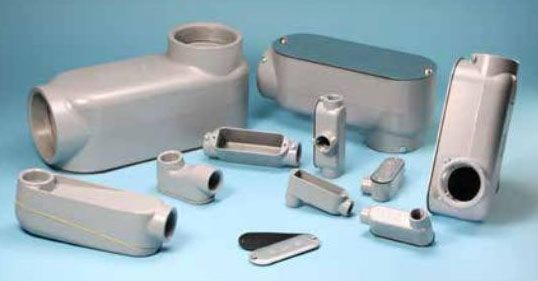

Features

• Die-Cast from High Strength, Corrosion and Weather Resistant Aluminum Alloy
• Smooth, Uniform Threaded Hubs for Easy Wire Pulling
• Domed Cover Provides Extra Room for Easier Wire Bending
• Attach to Either Rigid Conduit or EMT When it is Necessary to Correct or Change the Direction of Conduit Runs
• Provide Access to Conductors When Wire Pulling, Splicing or for Maintenance
• Make 90 Degree Bends in Conduit Runs

Additional Information

• Style Assembled
• Internal Volume 766 Cubic Inch
• Includes Fiber Gasket and Screw

Specifications

• Access Opening: Back
• Configuration: LB
• Cover Type: Die-Cast Aluminum Mogul
• Hub Location: 90 Degree
• Number of Hubs: 2
• Hub Size: 4 Inch
• Size: 5.5 Inch Length x 28.63 Inch Width
• Installation: Threaded
• Material: Electrostatic Powder Coated Die-Cast Aluminum
• Approval: UL, UL 514A, CSA C22.2
• Used On: IMC/Rigid Conduit
